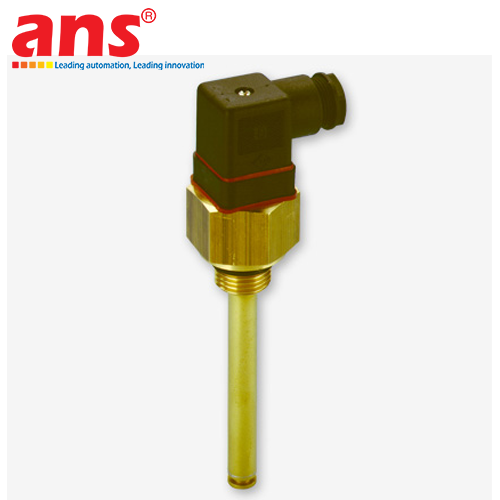

Bühler Technologies TSM-Atex ATEX Explosion-Proof Temperature Switch & Sensor
Price: Contact
Brand: Buhler
Category: Cảm biến công nghiệp
Supplier: AnhNghiSon
Origin: Germany
0911472255The TSM-Atex Series ATEX Explosion-Proof Temperature Switch & Sensor is engineered and manufactured by Bühler Technologies GmbH – a premier German technology company globally recognized for advanced fluid control systems and industrial process automation. The TSM-Atex series is specifically developed to comply with the most stringent explosion protection safety regulations (ATEX Directive 2014/34/EU) for fluid temperature measurement, limit monitoring, and thermal alarm signaling inside hazardous operating environments where flammable gases, vapors, or mists are present.
In hydraulic power packs, lubrication systems, and chemical storage reservoirs, unexpected fluid temperature spikes indicate mechanical friction, system overloading, or fluid degradation. In explosive atmospheres, unmonitored excessive thermal levels pose severe ignition hazards. The Bühler TSM-Atex sensor resolves these operational risks through highly sensitive temperature detection elements (precision PT100/PT1000 RTDs or bimetallic switches) housed within heavy-duty explosion-proof enclosures.
Key technical highlights of the Bühler Technologies TSM-Atex:
- ATEX Explosion-Proof Safety Certification: Tested and certified for safe operation in hazardous Ex-Zones (Zone 1/2 or Zone 0/1 depending on Ex-i / Ex-d protection concept), eliminating spark risks or excessive surface temperatures that could ignite surrounding flammable atmospheres.
- High-Grade Chemical-Resistant Construction: Thermowells and sensor housings are fabricated from 316L Stainless Steel (1.4571) or precision-machined Brass, providing exceptional chemical resistance against mineral-based hydraulic oils, synthetic lubricants, solvents, and liquid fuels.
- Versatile Measurement & Switching Options: Supports bimetallic thermal switch contacts (preset switching thresholds at 50°C, 60°C, 70°C, 80°C) or continuous PT100 RTD resistance elements (2-wire/3-wire) transmitting analog signals (4-20mA) to central PLC automation networks.
- Heavy-Duty IP65/IP67 Enclosure Rating: Explosion-proof junction boxes securely seal electrical wiring against ingress of dust, moisture, and corrosive chemical vapors in demanding outdoor or indoor industrial plant conditions.
The Bühler TSM-Atex ATEX Temperature Sensor is an essential safety component across oil refineries, fuel distribution depots, chemical processing facilities, heavy-duty industrial hydraulic power units, thermal power stations, and manufacturing plants requiring certified Ex safety.
• Manufacturer: Bühler Technologies GmbH
• Product Line / Model: TSM-Atex (TSM ATEX Series)
• Device Type: ATEX Explosion-Proof Temperature Switch & Sensor
• Country of Origin: Germany
• Explosion Protection Certification: ATEX Directive 2014/34/EU (Ex ia IIC T4...T6 Ga/Gb or Ex d IIC T6 Gb)
• Measuring Element: PT100 / PT1000 Class A RTD sensor element or Bimetallic thermal switch
• Wetted Materials: 316L Stainless Steel (1.4571) / Precision Brass
• Temperature Measuring Range: -20°C to +120°C (High-temperature options up to +160°C)
• Bimetal Switch Points (Pre-set): Fixed switching thresholds at 50°C, 60°C, 70°C, 80°C (NO or NC)
• Measurement Accuracy: ± 0.3°C (For PT100 Class A element)
• Thermowell Insertion Length: Customizable length from 100 mm to 1000 mm (Stem diameter 8 mm / 10 mm)
• Max. Operating Pressure: Up to 10 bar - 25 bar (Thermowell material dependent)
• Output Signal Options:
- Potential-free bimetal contact (250V AC/DC, 2A)
- PT100 Resistance signal (2-wire / 3-wire / 4-wire)
- Continuous Analog Signal 4-20 mA (Integrated head-mounted transmitter)
• Process Connections: Threaded G1/2", G3/4", M18x1.5 or DIN/SAE standard flanges
• Electrical Connections: Explosion-proof Terminal Box / Cable Glands M20x1.5
• Enclosure Protection Rating: IP65 / IP67 (Dust and water spray resistant)
• Target Media: Hydraulic oils, lubricating oils, fuels, solvents, and industrial liquid chemicals in Ex hazardous areas.
