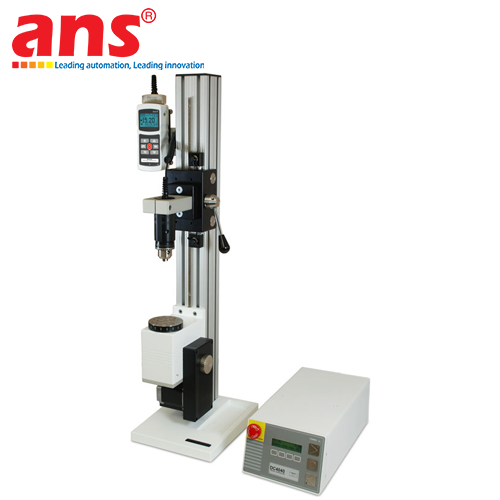

MARK-10 / CHECKLINE TSTM-DC ADVANCED DIGITAL CONTROL MOTORIZED TORQUE TEST STAND FOR PREMIUM QA/QC APPLICATIONS

DEEP PRODUCT OVERVIEW & DIGITAL AUTOMATION ECOSYSTEM INTEGRATION
The Mark-10 / Checkline TSTM-DC represents the global industrial benchmark in specialized electro-mechanical power testing engineering, configured as a high-precision Motorized Torque Test Stand with integrated smart digital control logic (Motorized Torque Test Stand with Advanced Digital Control), developed and manufactured 100% in the USA by metrology titan Mark-10 Corporation, and distributed internationally through Checkline's logistical channels. The technical suffix "DC" signifies the deployment of an Advanced Digital Control framework, upgrading a baseline mechanical stand into an intelligent autonomous automated test cell highly valued across modern QA/QC inspection centers. This automated hardware systematically deletes human operator manual handle-turning variables, enforcing a perfectly fluid velocity tracking and uniform torque profile. Checkline serves as a total turnkey solution provider, consulting facility execution teams to pair the TSTM-DC stand alongside its native companion ecosystem elements to form an uncompromised automated workstation: comprising the TSTM-DC motorized base, a standalone smart remote torque sensor (Series R50 smart loadcell stack), a centralized microprocessor digital display hub (Model 5i or 7i Indicator Console), and the specialized MESUR™gauge data analytics software to render high-resolution real-time Force vs Angle charts directly on a local workspace PC, securing continuous runtime reliability metrics via ANS distribution channels.

UNCOMPROMISED CORE AUTOMATION EXTRAORDINARY CAPABILITIES DRIVING THE TSTM-DC INTERFACE
The definitive technical assets electing the TSTM-DC series for advanced structural fatigue and rotational limit analysis reside in its closed-loop programmable automation provisions:
- Comprehensive PC Software Interfacing (PC Control): Moving entirely away from physical console buttons vulnerable to mechanical wear over shifts, the TSTM-DC welcomes direct external processing commands. Plant instrumentation teams can trigger rotation cycles, command emergency halts, invert directional vectors, or re-calibrate internal stroke indexes directly inside the control software shell to seamlessly embed the stand into connected industrial operations.
- Supreme High-Resolution Angular Profiling (Angle Control): Positioned as the most critical core technical asset, the stand houses an integrated high-resolution encoder capable of granular micro-step tracking. Operators program strict angular safety limits to test components exactly to design boundaries—commanding the drive spindle to fasten a structural bolt, twist a device folding hinge element, or slip a packaging bottle closure to a precise metric angle coordinate (e.g., executing exactly 180 degrees, 90 degrees, or tracing 5 complete concentric rotations) before triggering an immediate locked mechanical braking sequence.
- Autonomous Lifecycle Material Fatigue Inspection (Cycling / Fatigue Testing): The stand executes automated long-term repetitive endurance cycles, tracking continuous bidirectional "clockwise to counter-clockwise" twist configurations spanning thousands of uninterrupted iterations running 24/7. This profile isolates molecular structural fatigue parameters, analyzing the long-term elastic degradation threshold of coil springs, door hinges, and industrial packaging seals before launching mass assembly floor shifts.
- Automated Angular Coordinate Reset (Auto-return): The exact millisecond an inspection routine captures a material destructive fracture peak force or fulfills preset angular targets, the driving hub automatically executes a high-speed reverse rotation back to absolute zero home coordinates. This automated return allows lab technicians to instantly replace analyzed cargo phôi sheets with fresh material lots, optimizing throughput parameters across high-volume validation blocks.

CROSS-OVER INTELLIGENT HARDWARE OVERLOAD PROTECTION OVERRIDES
- Absolute Safety Safeguard for Premium Instrumentation: Precision external torque sensors (such as the high-accuracy Mark-10 Series R50 load cells) represent substantial capital investments and are vulnerable to permanent damage if dynamic shear forces breach absolute structural thresholds. The TSTM-DC eliminates this operational risk profile by deploying a smart cross-over signal monitoring link routed directly through the companion Mark-10 indicator console (Model 7i/5i). If dynamic load values breach calibrated sensor safety cushions (e.g., reaching 110% of nominal sensor capacity), the TSTM-DC controller executes an instantaneous motor electrical cutoff to completely protect the hardware, tracking continuous lifecycle longevity supplied through certified ANS logistics channels.

DYNAMIC PROPULSION METROLOGY & COUPLING PERFORMANCE DATA
- Equipment Manufacturer: Mark-10 Corporation (New York, USA)
- Commercial Distribution Re-brander: Checkline (Electromatic Equipment Co.)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Certified Full System Part Number: TSTM-DC Series
- Device Structural Profile: Motorized torque testing platform equipped with advanced digital control automation logic.
- Nominal Torque Loading Capacity: Rated to safely manage extreme twisting loads up to 11.5 Nm (Equivalent to 100 lb-in nominal torque moduls).
- Precision Digital Velocity Spectrum: Flat-profile adjustable speed indexing running from 0.01 up to 15 RPM (rotations per minute), boasting absolute velocity stability rated at ±0.2%.
- Integrated Angular Encoder Resolution: Elite micro-step visibility certified at 0.1 degree (0.1° angle feedback resolution indexing).
- Maximum Axial Clearance Envelope (Travel): Expansive clearance window adjusting up to 400 mm (15.7 in) to facilitate long component profiles.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics based on targeted R50 torque sensors and indicator pairings)

INTEGRATED AUTOMATION LOGIC & INDUSTRIAL DATA CHANNELS
- Automated Endurance Loop Modulus: Programmable multi-cycle loop configuration engineered to track component wear (Supports up to 99,999 continuous start-stop cycling loops).
- Home Vector Kinematics Protocol: Autonomous spindle recovery tracking immediate snap-back routing (Auto-return to absolute zero angle coordinates).
- Ecosystem Interconnect Adaptability Matrix:
  + Direct co-axial interface matching independent smart torque sensors: Mark-10 Series R50 product families.
  + Direct control data routing matching master terminal blocks: Mark-10 Model 5i or Model 7i digital indicator consoles.
  + Edge-level automated software sync: USB/RS-232 serial links routing high-speed charts straight to proprietary MESUR™gauge analytical PC platforms.

STRUCTURAL METALLURGY & FIELD ASSEMBLY STANDARDS hiện trường
- Transistor Overload Interlock Safety: Real-time electronic motor kill-switch loop preventing loadcell damage (Cross-over overload protection algorithm via companion smart cable link).
- Base Hub Chassis Metallurgy: High-rigidity case-hardened structural steel block mated with dense structural alloy aluminum guide column frames ground completely flat to eliminate torsional deflection stress.
- Driven Spindle Mating Interface: Circular multi-point bolt-down flange layout matching dedicated bottle closure chucks, custom vise grips, and parallel pin tool adapters.
- Primary Operational Power Requirements: Universal automatic voltage matching power supply transformer (Accepts 80-240V AC, 50/60Hz rails out-of-the-box).
- Field Maintenance Mandate: Enclosed dynamic drive gear columns pre-packed with lifetime synthetic thermal lubricants; 100% Maintenance-free concerning physical grease line routines.
- Mechanical Production Origin: 100% Engineered and Manufactured in USA (USA Origin).
