IMADA / CHECKLINE ZT-DPU SERIES HIGH-PRECISION BIDIRECTIONAL DIGITAL FORCE GAUGE WITH REMOTE SENSOR LOAD CELLS

DEEP PRODUCT OVERVIEW & RUGGED REMOTE SENSOR QUALITY TESTING INFRASTRUCTURE
The IMADA / Checkline ZT-DPU Series represents the absolute global baseline in specialized dynamic mechanical testing telemetry engineering, configured as a high-precision dual-direction digital Force Gauge utilizing an independent remote load cell (Digital Force Gauge with Remote Sensor), developed and manufactured 100% in Japan by world-renowned metrology pioneer IMADA Co., Ltd, and strategically re-branded and distributed by Checkline for western industrial cells. This advanced force measurement instrument functions as the ultimate mechanical fail-safe "flexible remote testing engine", breaking past the physical limitations of old-fashioned integrated force gauges whose bulky bodies restrict access to congested machinery beds. By separating the primary multi-axis load sensing element from the main display block via a durable shielded cable, the ZT-DPU empowers facility engineering teams to slide the rugged cuboid load cell deep inside narrow clearance enclosures, hazardous high-temperature atmospheric zones, or integrate it permanently as an automated inline feedback automation block on active manufacturing lines. Operating flawlessly across multi-shift routines hằng ngày, the system serves as a vital element inside QA/QC testing laboratories, measuring material tensile strengths (Tension), vertical compression resistance (Compression), peel adhesive bonding limits, and component destruction thresholds to enforce uncompromised continuous shift runtime metrics via authorized supplier ANS.

VERSATILE MODULAR HARDWARE ARCHITECTURE & ADVANCED SYSTEM SELECTION (ZTS VS ZTA)

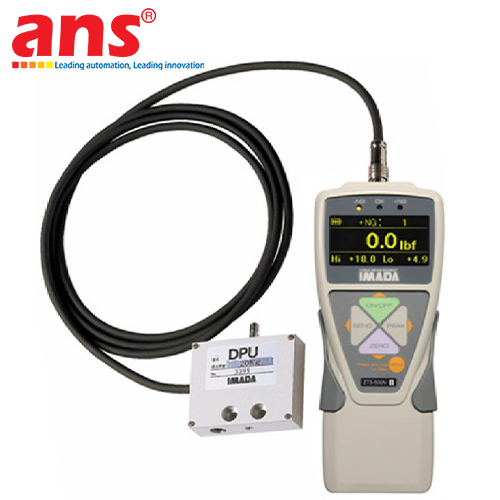

The primary technical asset driving the widespread field deployment of the ZT-DPU series resides in its robust modular layout, connecting distinct components via a 2-meter (approx. 6 feet) armored signal line:
- Intelligent Indicator Console Hub: Incorporates a high-contrast, premium Organic EL (OLED) electronic display panel. This self-illuminating screen delivers absolute clear visibility under dark laboratory cells or low-light factory floor parameters, housing an integrated keypad array for rapid calibration adjustments and data logging tasks.
- Remote DPU Load Cell Block: A precision-ground solid-state cuboid sensing module machined from high-stiffness hardened structural alloys, engineered to handle severe tension and compression vectors smoothly without incurring offset errors.
- Functional Model Segmentation:
  + ZTS-DPU Series (Standard Variant): Optimized as a highly cost-effective quality inspection module, tracking an internal non-volatile memory bank rated for 1000 static force data points paired with high-speed USB/RS-232C export channels to bám sát daily production flow requirements.
  + ZTA-DPU Series (Advanced Variant): Engineered for elite analytical tracing, introducing direct automated streaming onto external USB Flash Drives. Crucially, when mated co-axial alongside an automated motorized IMADA Test Stand equipped with an inline linear optical encoder, the ZTA-DPU maps real-time continuous Force vs Displacement graphs, pushing material property metrics to the absolute kịch trần limit.

EXTREME 2000HZ SAMPLING FREQUENCY CAPTURING TERMINAL PEAK FORCES & HARDENED PROTECTION OVERRIDES
- 2000Hz High-Speed Induction Data Matrix: The primary mechanical asset electing the ZT-DPU series for precision destructive material testing (Destructive testing cells) is its extreme 2000Hz data sampling capability. Structural fractures, micro-cracks, and material tearing behaviors occur inside thin millisecond windows. This lightning-fast processing frequency ensures the instrument captures the true absolute peak force (Peak force capture) at the point of catastrophic destruction without lagging or losing loss data.
- Automated Real-Time Go/No-Go Transistor Evaluation: Features an onboard automated tolerance zone evaluation framework. Operators program precise high/low target force windows, allowing the OLED console to auto-flash visual alerts or dispatch a high-state trigger signal when batches clear (Go) or breach (No-Go) quality metrics to accelerate high-volume component checking.
- 2000% Structural Safety Overload Margin: The case-hardened remote DPU block is calibrated to safely endure intense mechanical overload pressures scaling up to 200% of its nominal capacity before suffering permanent geometric deflection stress. The system triggers automated continuous LED warning flashes at 110% rated load, prompting site technicians to halt lines immediately, securing a lifelong operational lifecycle supplied through certified ANS distribution channels.

DYNAMIC METROLOGY & PROPULSION PERFORMANCE DATA
- Original Equipment Manufacturer: IMADA Co., Ltd (Japan)
- Western Distribution Re-brander: Checkline (Electromatic Equipment Co.)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Certified Full System Part Number: ZT-DPU Series (Specified via ZTS-DPU or ZTA-DPU configurations)
- Device Structural Profile: Bidirectional tension and compression digital force gauge paired with an independent remote load cell sensor.
- Nominal Measuring Capacity Scale: Multi-tier scalable metric ranges stretching from sensitive low-capacity 2N variants (e.g., ZTA-DPU-0.4 configuration) up to massive heavy-industry units handling 20 kN (Rated to withstand multi-ton forces up to 2,000 kgf).
- Selectable Metric Unit Matrix: Newtons (N), kgf (or gf), lbf (or ozf) instantly switchable via the central configuration menu.
- Nominal Instrument Accuracy Rating: Elite calibration certified at ± 0.2% across the absolute full scale parameter (± 0.2% Full Scale accuracy boundary).
- Integrated Signal Sampling Frequency: 2000Hz internal scanning rate (2000 data conversions processed per 1 second), optimized for extreme dynamic peak force tracking.

DISPLAY PROPERTIES & DIGITAL INTERCONNECT PROVISIONS
- Control Console Panel Interface: High-contrast 4-digit Organic EL (OLED) electronic display window, supporting a software-driven 180-degree screen inversion rotation feature.
- Data Logging & Memory Storage: Capacity to store 1,000 discrete inspection points (ZTS format) or stream seamless real-time analytical data blocks straight onto an external USB Flash Drive (ZTA format).
- Integrated Analytics Telemetry Feedback (Data Output Matrix):
  + High-speed digital USB interface port for immediate computer connectivity.
  + Industrial standard RS-232C serial channel for direct ticketing printer or PLC linking.
  + Real-time Analog waveform output rail (±1V DC continuous stream for chart recorder links).
  + Transistor logic output ports for external Go/No-Go tolerance relay routing (-O.L over-limit tracking).

STRUCTURAL METALLURGY & ENVIRONMENTAL IMMUNITY RATING
- Remote Loadcell Substrate Metallurgy: Case-hardened premium structural steel alloy or high-density aluminum blocks ground completely flat to eliminate torsional twisting under heavy loads.
- Signal Interconnect Transmission Cable: High-insulation double-shielded data cable stretching a standard length of 2 meters (approx. 6 feet).
- Structural Mechanical Overload Ceiling: Passive structural load resilience certified up to 200% Full Scale; automated warning flash system self-triggers at 110% of machine capacity.
- Operational Power Input Provisions: Internal high-capacity rechargeable Ni-MH battery cells or continuous 24/7 runtime driven via a standard automated AC power adapter.
- Field Maintenance Mandate: Solid-state enclosure showing zero particulate wear holes; 100% Maintenance-free concerning internal lubrication routines.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
