IMADA / CHECKLINE ZT SERIES HIGH-SPEED LIGHTWEIGHT INTEGRATED DIGITAL HANDHELD FORCE GAUGE WITH INTERNAL LOAD CELLS

DEEP PRODUCT OVERVIEW & HIGH-VELOCITY HANDHELD POWER VALDIATION INFRASTRUCTURE

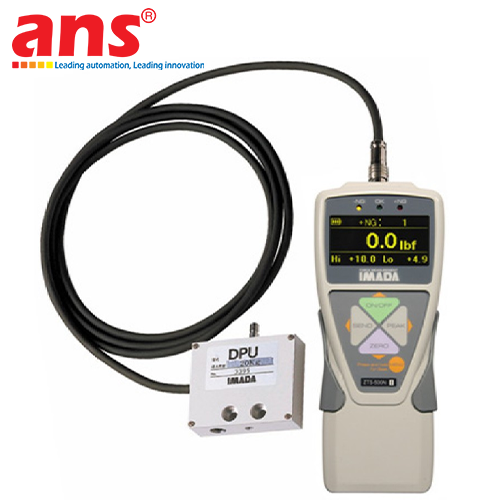

The IMADA / Checkline ZT Series represents the global technological baseline in specialized handheld electro-mechanical power validation engineering, configured as a high-precision bidirectional digital Force Gauge tracking a fully integrated internal sensing core (Digital Force Gauge with Internal Sensor), developed and manufactured 100% in Japan by metrology pioneer IMADA Co., Ltd, and distributed internationally through Checkline's logistical channels. Shifting entirely away from bulky remote load cell assemblies (such as the ZT-DPU series) that mandate dedicated external signal wiring adapters, the standard ZT design embodies a self-contained built-in configuration (Built-in Sensor architecture). The high-capacity molecular load cell is locked securely inside a streamlined handheld monocoque, establishing an ultra-portable, nimble testing package for floor operators. The device functions as the ultimate edge-level "high-response low-inertia impact checking engine", specified to optimize handheld testing tracking loops hằng ngày down active manufacturing assembly lines—ranging from cleanroom medical syringe insertion force checks in pharmaceutical labs to terminal fracture force analysis of high-brittle components, ensuring continuous workspace metrics via authorized partner ANS.

GRANULAR ADVANCED CHASSIS SELECTION MATRIX (ZTS STANDARD VS ZTA ADVANCED CONTROLLERS)
To satisfy multi-tier operational compliance guidelines spanning standard factory floor verification up to complex R&D analytical tracing kịch trần, the ZT family divides into two distinct digital processor layouts:
- ZTS Series (Standard Product Variant): Perfectly tailored to manage nominal industrial tension (pulling loops) and compression (pushing operations) benchmarks. The platform exhibits high-velocity peak hold reaction constants, housing onboard block memory and a complete collection of standard data communication ports routing straight to local facility computers to maintain daily shift visibility.
- ZTA Series (Advanced Product Variant): Inherits the unyielding physical metallurgy and internal component base of the ZTS platform while introducing an upgraded microprocessor architecture. The ZTA model breaks past legacy communication constraints by welcoming direct connection of external standard USB Flash Drives directly into the device frame. This enables automated real-time continuous data streaming logged over time in a pure `.CSV` spreadsheet format without loading a companion field computer. Crucially, the ZTA accommodates direct data synchronization with linear optical encoders (Linear scale interfaces) fitted on motorized test stands, outputting synchronized real-time parameters charting Force vs Displacement concurrently.

HIGH-CONTRAST SELF-ILLUMINATING OLED USER INTERFACE & COMPACT LIGHTWEIGHT ERGONOMICS <500G
- Premium Self-Luminous Organic EL (OLED) Data Window: The premier technological value asset optimizing reading speed on the ZT series tracks its high-contrast OLED tracking screen. Moving completely clear of reflective passive LCD panes that distort under shifting facility light vectors, the ZT OLED module delivers perfect visibility inside dark cabinet frames, dividing information into three distinct real-time operational zones: active dynamic force tracking, locked Peak Hold metrics, and an active analog-style load bar visualization graph.
- Optimized Low-Weight Handheld Footprint: The entire structural enclosure shell is precision-molded from specialized high-impact structural engineering resins, cutting total device dead weight down to a minimalist <500g boundary (approx. 490 grams). This lightweight công nghệ neck geometry eliminates dynamic operator muscle fatigue over multi-shift routines hằng ngày, suppressing manual alignment errors to guarantee true axial loading traces.

IMMENSE 2000HZ INDUCTION RESOLUTION FOR BRITTLE FRACTURE TRACING & 200% PROTECTION OVERRIDES
- Absolute Capture of Instantaneous Component Failures (2000Hz Data Sweep): The internal signal scan speed registers force variations at an unwavering frequency of 2000 updates per single second (2000Hz frequency tracking)—doubling the velocity of previous handheld frameworks. This immense induction capability acts as the definitive metrology asset to capture true absolute fracture force metrics at the exact microsecond a brittle glass container shatters or a high-tension cable line snaps phựt.
- Onboard Structural Mechanical Overload Limiter Stopper: To safeguard highly sensitive low-capacity instrument variants (such as frames calibrated under 5N nominal limits), developers engineered an internal mechanical travel stopper mechanism. If a field operator accidentally applies extreme pushing force scaling up to 200% of nominal capacity, this physical solid-state barrier locks rigid to absorb the parasitic load, preventing internal loadcell element distortion to enforce a lifelong operational lifecycle supplied through certified ANS logistics channels.

DYNAMIC METROLOGY & COUPLING PERFORMANCE DATA
- Original Equipment Design Manufacturer: IMADA Co., Ltd (Kyoto, Japan)
- Western Commercial Distribution Partner: Checkline (Electromatic Equipment Co., Inc.)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Certified Full System Part Number: ZT Series (Further specified via ZTS or ZTA model selections)
- Device Structural Profile: Handheld handheld digital electronic tension and compression force gauge with a built-in internal sensor load cell.
- Monitoring Axis Force Vectors: Bidirectional closed-loop tracking, automatically resolving concurrent Tension (pulling loops) and Compression (pushing actions).
- Nominal Capacity Spectrum: Multi-tier scalable metric ranges expanding from the sensitive low-force model ZTS-2N (Measuring limits down to 2N tailored for y tế medical needle testing) up to heavy industrial unit ZTS-1000N (Rated to process high-tension crush forces up to 1000N).
- Nominal Instrument Accuracy Rating: Certified elite calibration verified at ± 0.2% across the absolute full scale parameter (± 0.2% Full Scale accuracy boundary).
- Integrated Signal Sampling Frequency: 2000Hz internal scanning rate (2000 data conversions processed per 1 second), engineered for brittle material fracture tracing.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics based on targeted load ranges and fixture adapters)

DISPLAY PROPERTIES & METROLOGY DATA PROVISIONS hiện trường
- Control Console Panel Interface: High-contrast Organic EL (OLED) electronic display window tracking a 3-zone simultaneous data layout mapping active load curves.
- Integrated Analytics Telemetry Feedback (Data Output Matrix):
  + High-speed digital USB interface port for immediate computer connectivity.
  + Industrial standard RS-232C serial channel for direct ticketing printer or remote PLC master links.
  + Continuous Analog waveform output rail (±1V DC continuous stream for chart recorders).
  + High-accuracy Mitutoyo Digimatic port linking directly to localized SPC quality control frames.
  + Transistor logic output channels managing external Go/No-Go tolerance relay routing paired with localized warning flash indicators.
  + Integrated host port welcoming direct USB Flash Drive storage logging continuous time-series analytics as standard `.CSV` logs (ZTA exclusive feature).
- Multi-Axis Dimensional Expansion: Linear scale data feed interface synchronizing concurrent Force vs Distance charts (ZTA exclusive capability).

STRUCTURAL METALLURGY & POWER MANAGEMENT STANDARDS
- Base Chassis Substrate Metallurgy: Impact-resistant premium high-density engineered industrial resin compound, surface-ground flat to prevent structural slip under handheld stress loads.
- Total Physical Mass Profile: Lightweight minimalist structure weighing < 500 grams (Approximately 490 grams dead weight) to neutralize operator hand fatigue.
- Structural Mechanical Overload Ceiling: Passive structural load resilience certified up to 200% Full Scale nominal capacity via integrated internal mechanical stroke limiter pins for low capacities.
- Companion Evaluation Software Package: Bundled standard alongside proprietary ZLINK digital analysis software to automate data plotting and generate field inspection charts instantly.
- Primary Operational Power Requirements: Internal high-capacity rechargeable Ni-MH battery cells or continuous 24/7 runtime driven via a standard automated AC power adapter.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
