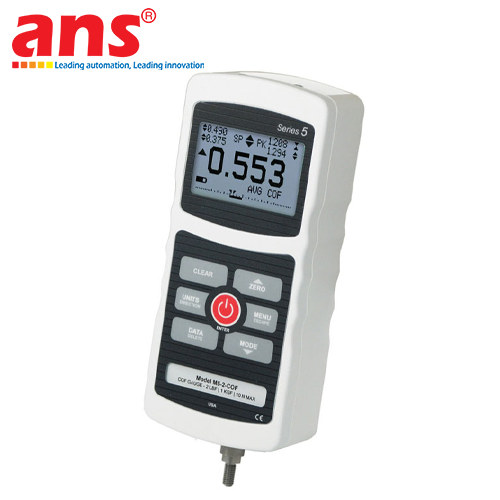

MARK-10 / CHECKLINE M5-2-COF HIGH-PRECISION DIGITAL COEFFICIENT OF FRICTION MEASUREMENT INSTRUMENT INTEGRATING ASTM D1894 ALGORITHMIC LOGIC

DEEP PRODUCT OVERVIEW & STANDALONE SURFACE FRICTION ANCHOR TESTING INFRASTRUCTURE
The Mark-10 / Checkline M5-2-COF represents the absolute global technological pinnacle in specialized surface dynamic tribology metrology engineering, configured as a high-precision digital Coefficient of Friction Gauge tracking a dedicated algorithmic processor (Specialized Digital Coefficient of Friction Gauge), developed and manufactured 100% in the USA by force calibration pioneer Mark-10 Corporation, and distributed internationally through Checkline's logistical networks. Moving completely clear of standard force indicators designed to evaluate structural material tearing or high-load compression destructions, the M5-2-COF is engineered strictly for a single uncompromised objective: Measuring and parsing the Coefficient of Friction (COF). Across modern industrial conversion plants processing flexible plastic packaging films, extruded nilon webs, laminated label liners, or raw paper rolls hằng ngày, the exact micro-surface tactile friction boundary (slip vs drag resistance) acts as the baseline validator for automated high-speed wrapping conveyor operations. If a polymer substrate shows excessive surface stickiness, the phôi sheet material binds and jams tight inside packaging machine forming collars; conversely, if the surface slip index crosses safe ceilings, stacked transport cartons lose alignment to cause catastrophic vehicle cargo drop failures. The M5-2-COF eliminates these vulnerabilities inside cleanroom QA/QC laboratories, pulling a certified weighted block (Sled) over the substrate to isolate pure surface traction dynamics, routing data blocks perfectly smooth and uniform via certified partner ANS.

HIGH-VELOCITY FIRMWARE ALGORITHMS FOR AUTONOMOUS DUAL-AXIS FRICTION COMPUTATION (STATIC VS KINETIC)
While sharing the rigid solid-state handheld morphological layout with standard Series 5 force indicators, the M5-2-COF establishes an independent technical tier via its specialized internal analytical operating system:
- Autonomous Digital COF Quantifying: The internal software completely removes manual spreadsheet data reduction routines by automatically dividing continuous dynamic pulling forces against the pre-programmed weight constant of the test block (calibrated at 200g following ASTM D1894 specifications). The metric output frozen level over the graphic screen displays a pure, unitless Coefficient of Friction value (e.g., 0.35 scalar representation).
- Simultaneous Tracing of Static and Kinetic Friction Fields: The micro-processor parses the real-time continuous load curve to track two critical separate parameters concurrently:
  + Static COF Modulus: Captures the absolute maximum mechanical resistance triggered at the precise microsecond the resting sled initiates its initial forward linear tịnh tiến motion.
  + Kinetic COF Curve: Continuously calculates the true arithmetic mean of friction forces captured as the sled slides at uniform velocity over the substrate testing plane during the complete measurement stroke.

IMMENSE 7000HZ INDUCTION MATRIX DRIVING MICRO-FORCE LOADS OVER MOTORIZED TRAVEL PLANES
- Millisecond Peak Stiction Detection (7000Hz Data Sweep): Because flexible film and paper surface drag vectors map inside sensitive micro-load boundaries, the M5-2-COF houses an ultra-responsive internal sensing core calibrated for a low nominal capacity ceiling of only 2 lbF (approx. 10 N / 1 kgF). The high-performance signal processor samples the input channel at an immense frequency of 7000 updates per single second (7000 Hz frequency tracking). This rapid induction matrix catches true absolute peak static stiction parameters materializing inside initial millisecond horizons hằng ngày hằng ngày.
- Supreme Instrument Accuracy Rating & Cross-System Safeguards: Delivers certified accuracy tracing within ±0.1% of the full scale parameter, paired with a non-volatile 150% structural mechanical overload safety cushion to prevent loadcell element misalignment.
- Motorized Test Stand Integration Mandatory: To achieve uncompromised reproducibility and satisfy strict international laboratory compliance standards, the M5-2-COF gauge requires fixed backplate integration onto an automated Motorized Test Stand frame—ideally the high-stiffness Mark-10 ESM303 platform. This physical setup locks the sled pulling travel speed to an waiverless, flat-profile velocity tracking of exactly 150 mm/min, eliminating the severe manual hand-pulling speed variations and micro-slip spikes that alter validation metrics, ensuring long-term systemic longevity supplied through certified ANS logistical distribution channels.

DYNAMIC METROLOGY & SURFACE TRIBOLOGY PERFORMANCE DATA
- Original Equipment Design Manufacturer: Mark-10 Corporation (New York, USA)
- Western Commercial Distribution Partner: Checkline (Electromatic Equipment Co., Inc.)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Certified Full System Part Number: M5-2-COF Series
- Device Structural Profile: Specialized digital coefficient of friction metrology gauge embedding automated calculation firmware.
- Primary Compliance Target: Real-time concurrent mapping of Static Coefficient of Friction (Static COF) and Kinetic Coefficient of Friction (Kinetic COF) metrics over plastic films, paper webs, and barrier coatings matching ASTM D1894 protocols.
- Internal Sensor Load Boundary (Capacity): Ultra-low capacity micro-force frame rated at 2 lbF / 32 ozF / 1 kgF / 10 N nominal maximum scale.
- Nominal Instrument Accuracy Rating: Certified elite calibration verified at a strict accuracy boundary tracking ± 0.1% across the full scale parameter (± 0.1% FS).
- Integrated Signal Sampling Frequency: 7000Hz internal scanning rate (7000 data conversions processed per 1 second), engineered for micro-second static stiction peak tracking.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics encompassing the M5-2-COF gauge, ESM303 motorized stand, and the standard COF mechanical sled kit)

DISPLAY PROPERTIES & DIGITAL MULTI-CHANNEL TELEMETRY DATA PROVISIONS hiện trường
- Control Console Panel Interface: Large high-resolution backlit graphic LCD tracking window mapping simultaneous alpha-numeric lines for Static COF, Kinetic COF, and real-time live force curves.
- Non-Volatile Onboard Data Storage: Internal memory capacity rated to automatically catalog 1000 discrete static/kinetic test records complete with real-time timestamps.
- Integrated Analytics Telemetry Feedback (Data Output Matrix):
  + High-speed digital USB interface port for immediate computer connectivity.
  + Industrial standard RS-232C serial channel for direct ticketing printer or remote PLC master links.
  + High-accuracy Mitutoyo Digimatic port linking directly to localized SPC quality control frames.
  + Continuous Analog waveform output rail (±1V DC continuous stream for external Oscilloscope tracing).
- Sled Mass Software Configuration: Pre-calibrated to process the standard 200g structural test sled block (ASTM D1894 compliant) or customizable via menu parameters to accept irregular field sled masses.

STRUCTURAL METALLURGY & AUTOMATED INTEGRATION STANDARDS
- Base Hub Chassis Metallurgy: High-impact engineered structural resin compound shell (rugged monocoque frame layout), finished with a flush continuous membrane keypad sealing internal circuits.
- Mechanical Installation Interface: Pre-cast backend multi-point mounting matrix; strictly mandates drop-in integration onto a Motorized Test Stand (Mark-10 ESM303) to enforce an unwavering flat-profile velocity tracking of 150 mm/min.
- Structural Overload Ceiling: Passive mechanical load resilience certified up to 150% Full Scale; includes an integrated high-frequency audible buzzer alarm and flashing display alerts upon breaching capacity limits.
- Primary Operational Power Requirements: Internal high-capacity rechargeable Ni-MH battery cells or continuous 24/7 runtime driven via a standard automated AC power adapter.
- Mechanical Production Origin: 100% Engineered and Manufactured in USA (USA Origin).
