CHECKLINE ETW HIGH-PRECISION DIGITAL ELECTRONIC TORQUE WRENCH AND COMPREHENSIVE PROCESS INTEGRITY AUDIT SYSTEMS

DEEP PRODUCT OVERVIEW & DIGITAL ASSEMBLING AUDIT LINE INFRASTRUCTURE

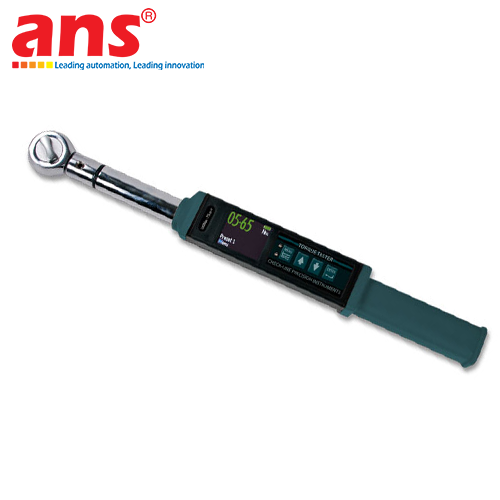

The Checkline ETW represents the global industrial benchmark in specialized handheld electro-mechanical power testing engineering, configured as a high-precision digital Electronic Torque Wrench and inline quality validation device (Electronic Torque Wrench / Audit Tool), developed and manufactured under the stringent technical directives of metrology titan Checkline (USA). This advanced torque measurement instrument functions as the ultimate frontline "fastening process safety check engine", specified explicitly to secure precise high-tensile bolt tightening routines and serve as a mobile torque audit platform (Torque Auditing) to recalculate and verify residual clamping force parameters over pre-assembled component phôi lots. Across automotive manufacturing bays, aerospace structural assembly grids, heavy civil steel erection cells, and precision electronic packaging lines hằng ngày, uncalibrated fastening or over-torque stress fractures induce catastrophic joint breakdowns. The Checkline ETW eliminates these systemic structural vulnerabilities, routing real-time force calculations perfectly smooth and uniform to discard manual human calibration deviations and secure continuous workspace runtime metrics via authorized Vietnam distribution pipeline ANS.

RUGGED SOLID-STATE METALLURGY MET WITH BI-DIRECTIONAL RATCHET COUPLING MECHANICS
The primary technical asset and structural framework asset electing the ETW series for heavy-duty industrial plant applications tracks its resilient physical assembly parameters:
- Fine-Tooth Reversible Ratchet Head Interfacing: The driving end incorporates an industrial-grade fine-tooth mechanical ratchet hub equipped with an instantaneous directional toggle switch. This configuration enables field operators to execute torque validation maneuvers smoothly across dual directional vectors: encompassing Clockwise (CW) and Counter-Clockwise (CCW) stroke tracks.
- High-Legibility Digital Control Display: The hardware chassis houses a high-contrast digital LCD/OLED electronic tracking screen. This display panel streams real-time continuous torque measurements (Track Mode feedback) straight to the user, completely removing the visual micro-slip reading errors common to old-style analog spring-gauge bars. The casing matches a rugged ergonomic anti-slip handle grip engineered to resist chemical cutting fluids, high moisture, and heavy plant grease traps hằng ngày.

MULTI-TIER EVALUATION PROVISIONS Met WITH DUAL-TRACK ANALYSIS MATRIX
- Real-Time Tracking Profile (Track Mode): The digital readouts trace localized muscle inputs continuously as pressure is applied over the wrench stem, optimizing the tool for variable torque slope analysis.
- Absolute Peak Capture Safeguard (Peak Hold Mode): The micro-processor automatically freezes and locks the maximum absolute torque boundary achieved during the tightening arc. This non-volatile data point serves as the foundational legal trace metric required by plant QA/QC validation managers to verify manufacturing compliance.
- Multi-Sensory Closed-Loop Target Alerts Interface: Operators program tight target force windows directly inside the tool configuration setup. As input forces approach the calibrated safety ceiling, the wrench triggers a synchronized 3-way alarm sequence: flashing high-visibility multi-color LED arrays, sounding an audible high-frequency buzzer tone, and initializing a haptic haptic vibration engine built inside the handle core to force an immediate technician halt before bolt thread shearing boundaries cross kịch trần.
- Instant Digital Conversion Scales: Features push-button automated units switching, shifting data instantly across international metric standard parameters including N-m, lb-ft, lb-in, and kg-cm.

EDGE-LEVEL DATA INTEGRITY SYNCING STRAIGHT TO SYSTEMIC SPC RACKS
- Non-Volatile Internal Logging Array & PC Networking: The Checkline ETW houses an onboard memory core pre-programmed to catalog hundreds to thousands of discrete industrial checking points mated alongside automated real-time timestamps. Utilizing a high-speed digital USB or serial RS-232 cable connection, the complete torque log blocks export directly to a workspace computer. This layout allows smooth data routing into Excel templates or direct streaming straight to Statistical Process Control (SPC) quality software frameworks to render automated facility verification charts, tracking long-term lifecycle performance supplied under certified ANS distribution loops.

DYNAMIC METROLOGY & COUPLING PERFORMANCE DATA
- Equipment Design Manufacturer: Checkline (Electromatic Equipment Co., Inc. - New York, USA)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Certified Full System Part Number: ETW Series (Electronic Torque Wrench)
- Device Structural Profile: Handheld handheld digital electronic torque wrench, torque gauge, and auditing spanner.
- Nominal Fastening Quality Directive: High-accuracy metric industrial bolt tightening and multi-joint residual torque auditing.
- Instrument Accuracy Tolerance Spectrum: Certified elite calibration boundary tracking at ± 1% to ± 2% of the absolute indicated value across the full scale parameter for both CW and CCW rotations.
- Drive Hub Output Geometry: Industrial standard fine-tooth reversible ratchet head layout configured with metric male square drives (Available in standard 1/4", 3/8", 1/2", and 3/4" square socket adaptabilities).
- Operational Algorithmic Tracing Modes: Software-selectable continuous real-time Track Mode and locked Peak Hold Mode.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics based on targeted model scales and accessory square drive requirements)

DIGITAL TELEMETRY INTERCONNECT PROVISIONS & DATA LOGS hiện trường
- Control Cabinet PC Signal Interface: High-speed digital USB connection or parallel RS-232 data logging channels routing telemetry data blocks straight to centralized master SPC systems.
- Non-Volatile Memory Capacity: Internal storage space rated to automatically catalog hundreds to thousands of static and dynamic torque inspection points paired with automated real-time timestamps.
- Multi-Sensory Operator Interlock Interface: Concurrent multi-channel automated alert framework including bright colored LED indicators, high-frequency audible buzzer tone, and haptic haptic handle vibration overrides.
- Metric Transformation Grid: N-m, lb-ft, lb-in, kg-cm instantly switchable via single-button execution.

STRUCTURAL METALLURGY & POWER MANAGEMENT STANDARDS
- Base Chassis Substrate Metallurgy: High-tensile case-hardened structural steel alloy tube mated with dense impact-resistant polymer housing shells, surface-ground flat to prevent structural uốn biến dạng micro-slip.
- Primary Operational Power Requirements: Standard high-capacity commercial industrial Alkaline battery cells or certified long-life rechargeable cells.
- Power Preservation Logic Interface: Onboard automated micro-circuit timeout controller executing automatic screen dimming or total system auto-shutoff functions to preserve battery current margins.
- Field Maintenance Mandate: Enclosed sealed solid-state construction showing zero particulate ingress holes; 100% Maintenance-free concerning internal lubrication routines.
- Mechanical Production Origin: 100% Engineered and Manufactured under Checkline Global Quality Standards (USA / Europe Quality Certified).
