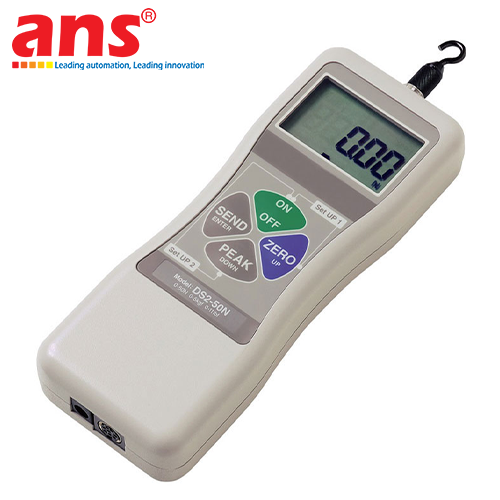

IMADA / CHECKLINE DS2 SERIES HIGH-SPEED LIGHTWEIGHT SHOP-FLOOR DIGITAL HANDHELD FORCE GAUGE WITH DUST-SHIELDED MEMBRANE KEYPADS

DEEP PRODUCT OVERVIEW & STANDARD FACTORY EMBEDDED POWERTRAIN TESTING INFRASTRUCTURE
The IMADA / Checkline DS2 Series represents the global industrial benchmark in standard handheld electro-mechanical power validation engineering, configured as a high-precision bidirectional digital Force Gauge tracking a fully integrated internal sensing core (Digital Force Gauge with Internal Sensor), developed and manufactured 100% in Japan by metrology pioneer IMADA Co., Ltd, and distributed internationally through Checkline's logistical channels. Affectionately nicknamed the "shop-floor workhorse" across manufacturing compliance centers, the DS2 architecture strips away redundant system complexity to focus entirely on unyielding mechanical durability, simple intuitive operator interfaces, and absolute cost-effective deployment across high-volume inline daily quality checking routines. Utilizing a heavy-duty built-in configuration (Built-in Sensor architecture), the robust load cell assembly is locked rigid inside an ergonomically contoured industrial shell. This portable layout empowers assembly line technicians to quickly execute dynamic force checks tracking structural wire-terminal separations, plastic component tensile snaps, sheet metal tearing metrics, or manual microswitch spring resilience behaviors. Operating with uncompromised data cycle logic, the DS2 roots data streams perfectly smooth and uniform to secure continuous multi-shift facility metrics via authorized partner ANS.

ERGONOMIC LIGHTWEIGHT FORM FOOTPRINT, INLINE SCREEN INVERSION & ENVIRONMENT INGRESS FILTERING
The foundational mechanical value assets electing the DS2 series over alternative instrumentation inside gritty workspace parameters track back to its severe-duty ingress protections:
- Weight-Optimized Monocoque Shell: The heavy-duty industrial plastic housing features a streamlined công nghệ neck contour, compressing total device dead weight down to a minimalist ~450g boundary. This low-inertia geometry enables operators to execute precise axial testing maneuvers manual-style with a single hand across variable high/low angular fields hằng ngày without enduring palm muscle fatigue.
- Automated Alphanumeric Character Reversal (Reversible Display): Features a large, high-legibility monochrome digital LCD window streaming flat, crisp characters. When maintenance teams drop-in mount the tool inverted onto a motorized or manual test stand to run vertical pulling loops, the system automatically flips the display matrix exactly 180 degrees to align straight with the operator's forward sightlines, removing coordinate reading delays.
- Dust-Impenetrable Sealing Interface (Membrane Keypad): To permanently neutralize the high moisture, airborne machine tool carbon debris, and cutting fluid oil mist typical of metal stamping plants, the console control interface utilizes a continuous-molded membrane keypad matrix. This solid-state cover layer seals all internal micro-circuits tight, blocking particle entry paths to preserve terminal chip alignment.

LIGHTNING-FAST 1000HZ REFRESH FREQUENCY RECORDING TERMINAL FRACTURES WITH 200% SAFETY MARGINS
- Absolute Capture of Structural Yield Horizon (1000Hz Data Sweep): The internal diagnostic chip analyzes dynamic force curves at an unwavering frequency of 1000 updates per single second (1000Hz frequency tracking). In destructive material compliance tests (Destructive testing cells), mechanical component fracturing manifests inside microsecond windows. This fast sample clock ensures the gauge catches the absolute maximum peak force value (Peak Force capture) precisely at the point of component destruction. The software provides dual tracking algorithms: real-time live dynamic force tracing (Track Mode) and frozen absolute maximum load capture (Peak Hold Mode).
- Onboard Internal Mechanical Travel Limiter Stopper: The integrated internal load cell is structural-shielded via a solid mechanical over-travel barrier block. If an assembly worker accidentally delivers excessive crushing energy scaling up to 200% of nominal machine capacity, this physical stopper locks rigid to stop structural element deflection, saving the sensor from premature terminal destruction.

AUTOMATED GO/NO-GO TRANSISTOR EVALUATION & HIGH-DENSITY WAVEFORM NETWORKING
- Rapid Inline Quality Inspection Sorting (OK/NG Signaling): Operators input explicit low/high target force limits directly into the non-volatile device memory. When rapid product checking arrays run down the line hằng ngày hằng ngày, the system auto-analyzes the batch values, projecting instant visual markers (or triggering a high-frequency audible buzzer tone) to denote Pass (Go) or Fail (No-Go) status to maximize clearance speeds.
- High-Compatibility Multi-Channel Signal Export: Supports automated push-button data transformation, switching metrics instantly between lbf, kgf, and Newtons (N) standard units. The tool accommodates a comprehensive telemetry output matrix: hosting high-speed digital USB channels for local computer syncing, serial RS-232C ports for ticketing printers or master PLC linking, and a continuous Analog waveform output rail (±1V DC continuous stream) for legacy chart plotter recorders, securing uninterrupted quality tracking metrics via certified ANS logistics pipelines.

DYNAMIC METROLOGY & COUPLING PERFORMANCE DATA
- Original Equipment Design Manufacturer: IMADA Co., Ltd (Kyoto, Japan)
- Western Commercial Distribution Partner: Checkline (Electromatic Equipment Co., Inc.)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Certified Full System Part Number: DS2 Series
- Device Structural Profile: Standard shop-floor digital handheld tension and compression force gauge with internal loadcell sensor.
- Monitoring Axis Force Vectors: Bidirectional closed-loop tracking, automatically resolving concurrent Tension (pulling loops) and Compression (pushing actions).
- Nominal Measuring Capacity Scale: Multi-tier scalable metric ranges expanding from low capacity scales up to heavy-duty industrial models handling 1000N (Equivalent to approx. 100 kgf load boundaries).
- Nominal Instrument Accuracy Rating: Certified elite calibration verified at ± 0.2% across the absolute full scale parameter (± 0.2% Full Scale accuracy boundary).
- Integrated Signal Sampling Frequency: 1000Hz internal scanning rate (1000 data conversions processed per 1 second), engineered for dynamic peak force validation.
- Operational Algorithmic Tracing Modes: Software-selectable continuous real-time Track Mode and locked Peak Hold Mode.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics based on targeted load ranges and fixture adapters)

DISPLAY PROPERTIES & METROLOGY DATA PROVISIONS hiện trường
- Control Console Panel Interface: High-legibility monochrome digital LCD tracking window equipped with a software-driven 180-degree alphanumeric flip feature (180° Reversible Display logic).
- Integrated Analytics Telemetry Feedback (Data Output Matrix):
  + High-speed digital USB interface port for immediate computer connectivity.
  + Industrial standard RS-232C serial channel for direct ticketing printer or remote PLC master links.
  + Continuous Analog waveform output rail (±1V DC continuous stream for legacy roll-chart recorders).
- Automated Tolerancing Logic Interface: Batch sorting validation via onboard real-time Go/No-Go alphanumeric indicator warnings (OK/NG contact signaling).
- Selectable Metric Unit Matrix: lbf, kgf, N instantly switchable via single-button execution.

STRUCTURAL METALLURGY & POWER MANAGEMENT STANDARDS
- Base Hub Chassis Metallurgy: Impact-resistant premium high-density engineered industrial polymer shell casing configured with an ergonomic slip-free neck; control interface completely sealed under a continuous dust-proof membrane keypad layer.
- Total Physical Mass Profile: Lightweight streamlined structure weighing ~ 450 grams dead weight to eliminate operator hand strain over shifts.
- Structural Mechanical Overload Ceiling: Passive structural load resilience certified up to 200% Full Scale nominal capacity via integrated internal mechanical stroke limiter pins.
- Primary Operational Power Requirements: Internal high-capacity rechargeable Ni-MH battery cells or continuous 24/7 runtime driven via a standard automated AC power adapter.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
