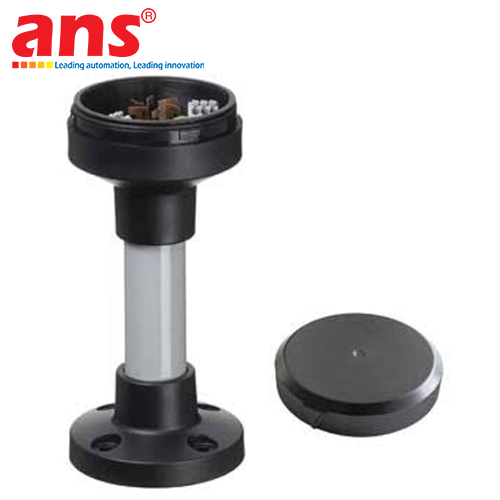

The Leuze A7-MP1-100 Mechanical Base Mounting Element with Tube (Official Part Number: 50135463) belongs to the modular A7 – Advanced Series industrial signaling column family engineered and manufactured by Leuze electronic (Germany). Designed as a specialized mechanical elevation and foundation accessory (Plinth mounting with tube), this unit raises an A7 signaling tower 100 mm above machine mounting planes, ensuring alert beacons remain clearly visible over physical machine obstructions across busy production floors.

Mechanically, the Leuze 50135463 A7-MP1-100 combines a high-impact engineering plastic base flange with a rigid anodized aluminum vertical spacer tube having an exact length of 100 mm. The optimized wall thickness of the aluminum column provides exceptional torsional rigidity and structural stability, effectively dampening heavy vibration harmonics generated by high-speed CNC tooling or stamping presses without structural flexure.

The top of the column features an integrated twist-lock bayonet interface conforming to the standardized Ø70 mm geometry of the A7 modular ecosystem. This enables technicians to securely click and lock the base terminal unit or lower visual signaling tier into place with a swift rotational gesture—eliminating cumbersome hardware fasteners. The generous internal tube diameter provides a clean, shielded passage for power and control wire bundles, protecting internal wiring from mechanical pinch points, sharp enclosure edges, and aggressive cutting oil splashing.

The lower mounting plinth includes pre-drilled bolt mounting holes paired with an integrated elastomeric sealing gasket for horizontal surface mounting onto control enclosures or machinery frameworks. When integrated into an A7 stacklight column assembly, the unit maintains an ingress protection rating of IP66 per IEC/EN 60529, delivering complete protection against dust penetration and high-pressure water washdown sprays during equipment cleaning routines. Fully certified to CE and CSA industrial safety standards, the Leuze 50135463 A7-MP1-100 provides a rock-solid foundation for CNC machine centers, packaging equipment, robotic workcells, and automated warehouse machinery.

• Manufacturer: Leuze electronic GmbH + Co. KG
• Country of Origin: Germany (100% Germany Origin)
• Part Number / Order Code: 50135463
• Model Designation: A7-MP1-100
• Product Line: A7 – Advanced Series (Tower light element)
• Functional Classification: Base mounting element with vertical tube (Plinth mounting)
• Spacer Tube Length: 100 mm
• Compatible Stacklight Diameter: Ø 70 mm
• Top Interlock Interface: Quick-action Bayonet twist-lock system
• Base Mechanical Mounting: Horizontal surface mounting via bolt-down plinth
• Cable Routing Architecture: Internal central passage through aluminum tube
• Tube Material: Anodized corrosion-resistant aluminum alloy
• Mounting Flange Material: High-impact, flame-retardant industrial plastic
• Surface Color: Industrial Black / Anodized Aluminum Silver
• Mechanical Geometry: Cylindrical vibration-resistant construction
• Ingress Protection Rating: IP 66 (per IEC/EN 60529 when assembled with A7 column)
• Operating Ambient Temperature: -10°C to +60°C
• Safety & Quality Certifications: CE, CSA certified
• Customs Tariff Number (HS Code): 85319000
