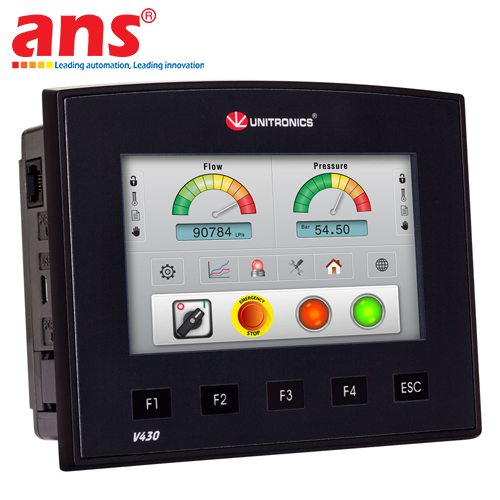

The Vision V430-J-RH2 Touch PLC + HMI is an advanced All-in-One industrial automation controller belonging to the Vision430™ family developed by Unitronics (Israel). Combining a high-speed Programmable Logic Controller (PLC), a 4.3-inch color touchscreen interface, and comprehensive onboard Input/Output (I/O) channels in a single ultra-compact unit, the V430-J-RH2 delivers an all-inclusive automation solution that cuts panel space, eliminates I/O wiring complexity, and lowers equipment manufacturing costs.

1. Flat-Bezel 4.3" WQVGA Color Touchscreen & Robust IP66/NEMA4X Enclosure:
The "J" series features a sleek flat-bezel front panel that prevents liquid pooling and dirt accumulation, making it ideal for hygienic environments such as pharmaceutical manufacturing, cleanrooms, and food processing lines. The 4.3-inch widescreen (16:9) TFT LCD resistive touch display offers WQVGA resolution (480 x 272 pixels) and 65,536 vivid colors. The screen accommodates detailed graphical mimic diagrams, real-time trend graphs, alarm logs, and touch-activated virtual function keys. The front panel boasts an IP65/IP66/NEMA4X ingress protection rating, shielding internal electronics against high-pressure washdowns and industrial dust.

2. Comprehensive Built-in Onboard I/O Configuration (RH2 Model):
The V430-J-RH2 is factory-equipped with a versatile I/O architecture ideal for compact motion and process applications:
- Digital Inputs: 10 standard 24VDC digital inputs.
- High-Speed Counter Inputs (HSC / Shaft-encoder): Includes 3 high-speed inputs operating up to 200 kHz (32-bit), ideal for high-precision rotary encoder tracking and frequency counting.
- Configurable Digital/Analog Inputs (D/A): 2 multi-purpose inputs configurable as either digital or analog (0-10V, 0-20mA, 4-20mA with 10-bit resolution).
- Relay Outputs: 6 robust, isolated relay outputs (rated up to 3A load switching) for direct actuation of contactors, solenoid valves, and indicator lamps.
- Scalability: Easily expandable up to 512 local/remote I/O points via Unitronics expansion modules.

3. Fast Processing Engine & Versatile Industrial Connectivity:
- Ultra-fast logic execution engine supporting up to 24 independent Auto-tune PID control loops.
- Memory: 512 KB application logic, 1024 KB for HMI images, and 512 KB for custom fonts.
- MicroSD card slot for continuous data logging, alarm history tracking, recipe management, and system backup cloning.
- Onboard Ports: Includes 1 x USB Mini-B programming port for high-speed firmware/program downloads, plus 1 x Isolated RS232/RS485 serial communication port.
- Optional Add-on Communication Modules: Ethernet TCP/IP, CANbus, secondary RS232/RS485, or Profibus Slave modules.
- Protocols Supported: Modbus RTU/TCP, BACnet, SNMP, CANopen, UniCAN, GSM/GPRS SMS notifications, and remote monitoring/control via built-in Web Server and VNC client.

4. Unified Free Single-Environment Software (VisiLogic™):
Both PLC ladder logic development and HMI GUI screen design are programmed within the free VisiLogic™ software suite. Engineers eliminate the need to map cross-device tag databases between separate hardware, resulting in dramatically reduced commissioning time.

• Manufacturer: Unitronics
• Product Series: Vision430™ Series (All-in-One PLC + HMI + Onboard I/O - Flat Bezel)
• Model Designation: V430-J-RH2
• Front Bezel Design: Flat Bezel
• Display Size & Type: 4.3-inch Widescreen TFT LCD Touchscreen (16:9)
• Display Resolution: WQVGA (480 x 272 pixels)
• Color Depth: 65,536 colors (16-bit)
• Touchscreen Technology: Resistive Touchscreen
• Operating Power Supply: 24 VDC (20.4 to 28.8 VDC range)
• Memory Allocation: 512 KB Logic, 1024 KB HMI images, 512 KB Fonts
• External Storage: MicroSD card slot (up to 32 GB supported)
• Onboard Input Channels:
  - 10 x Digital Inputs (24VDC)
  - 2 x Configurable Digital / Analog Inputs (0-10V, 0-20mA, 4-20mA - 10-bit)
  - 3 x High-Speed Counter / Shaft-encoder Inputs (up to 200 kHz, 32-bit)
• Onboard Output Channels:
  - 6 x Relay Outputs (230VAC / 3A max)
• Maximum I/O Capacity: Up to 512 I/O points via external expansion modules
• Built-in Communication Ports:
  - 1 x USB Mini-B programming port
  - 1 x RS232/RS485 port (Isolated)
• Optional Add-on Ports: Ethernet TCP/IP, CANbus, Secondary RS232/RS485, Profibus Slave
• Industrial Protocols: Modbus RTU/TCP, CANopen, UniCAN, BACnet, SNMP, Web Server, VNC
• Ingress Protection Rating: IP65 / IP66 / NEMA4X front panel seal
• Operating Temperature: 0°C to 50°C
• Standards & Certifications: CE, cULus listed, RoHS compliant
• Country of Origin: Israel
