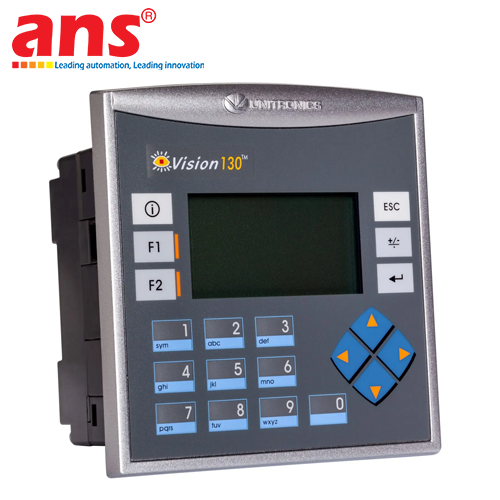

The Vision V130-33-RA22 / V130-J-RA22 is a robust and compact All-in-One industrial automation controller belonging to the Vision130™ series developed by Unitronics (Israel). By combining a high-performance Programmable Logic Controller (PLC), a 2.4-inch graphic LCD screen with an integrated 20-key numeric keypad, and comprehensive onboard Input/Output (I/O) channels into a single palm-sized device, the V130 series eliminates external I/O wiring, minimizes panel footprint, and significantly reduces engineering development costs. The series offers both a standard bezel model (V130-33-RA22) and a sleek flat-bezel model (V130-J-RA22) designed for hygienic washdown environments.

1. Crisp 2.4" Graphic LCD & Industrial Operational Keypad:
The controller features a 2.4-inch STN monochrome LCD display with 128 x 64 pixels resolution and white LED backlighting. The screen accommodates process variable displays, real-time trend graphs, and alarm logs. The front panel incorporates an integrated 20-key operational keypad (including numeric entry, arrow navigation, and customizable function keys), enabling operators to enter setpoints quickly and accurately without removing protective work gloves. The front panel holds an IP65/NEMA4X ingress protection rating, shielding internal electronics against industrial dust and direct water spray.

2. Comprehensive Built-in Onboard I/O Configuration (RA22 Model):
The V130-33-RA22 / V130-J-RA22 is factory-equipped with a rich variety of integrated I/O points:
- Digital Inputs: 12 x 24 VDC digital inputs (including High-Speed Counter / Shaft-encoder inputs operating up to 30 kHz).
- Analog & Temperature Inputs: 2 multi-function inputs supporting direct temperature sensors (RTD PT100 / Thermocouple types B, E, J, K, N, R, S, T) plus 2 standard analog inputs (0-10V, 0/4-20mA) with high 14-bit resolution.
- Digital Outputs: 8 x Relay outputs (switching up to 3A load) and 2 x High-Speed Transistor outputs (pnp, PWM / PTO frequencies up to 30 kHz for pulse train stepper/servo control).
- Scalability: Easily expandable up to 512 local/remote I/O points via Unitronics expansion modules.

3. Fast Execution Engine & Flexible Industrial Connectivity:
- High-speed PLC processing engine executing bit logic operations rapidly (20 µs per 1K of typical application), supporting up to 24 independent Auto-tune PID control loops.
- Memory: 512 KB application logic, 256 KB for HMI images, and 384 KB for custom fonts.
- Built-in Communication: Includes 1 x Isolated RS232/RS485 serial communication port.
- Optional Add-on Communication Modules: Ethernet TCP/IP, CANbus, secondary RS232/RS485, or Profibus Slave modules.
- Protocols Supported: Modbus RTU/TCP, BACnet, SNMP, CANopen, UniCAN, GSM/GPRS SMS notifications, and remote monitoring/control via built-in Web Server and VNC client.

4. Unified Free Single-Environment Software (VisiLogic™):
Both PLC ladder logic development and HMI screen design are programmed within the free VisiLogic™ software suite. Engineers eliminate the need to map cross-device tag databases between separate hardware, resulting in dramatically reduced commissioning time.

• Manufacturer: Unitronics
• Product Series: Vision130™ Series (All-in-One PLC + HMI + Onboard I/O)
• Model Designation: V130-33-RA22 (Standard Bezel) / V130-J-RA22 (Flat Bezel)
• Display Size & Type: 2.4-inch STN Monochrome Graphic LCD (White LED backlight)
• Display Resolution: 128 x 64 pixels
• Keypad: Sealed membrane keypad with 20 keys (numeric, navigation, and function keys)
• Operating Power Supply: 12 / 24 VDC (10.2 to 28.8 VDC range)
• Memory Allocation: 512 KB Logic, 256 KB HMI images, 384 KB Fonts
• Onboard Input Channels:
  - 12 x Digital Inputs (24VDC), includes High-Speed Counter / Shaft-encoder channels (up to 30 kHz)
  - 2 x Temperature/Analog Inputs (RTD PT100 / Thermocouple / 0-10V, 0/4-20mA - 14-bit)
  - 2 x Analog Inputs (0-10V, 0/4-20mA - 12-bit)
• Onboard Output Channels:
  - 8 x Relay Outputs (230VAC / 3A max)
  - 2 x High-Speed Transistor Outputs (pnp, PWM / PTO up to 30 kHz)
• Maximum I/O Capacity: Up to 512 I/O points via external expansion modules
• Built-in Communication Ports: 1 x RS232/RS485 port (Isolated)
• Optional Add-on Ports: Ethernet TCP/IP, CANbus, Secondary RS232/RS485, Profibus Slave
• Industrial Protocols: Modbus RTU/TCP, CANopen, UniCAN, BACnet, SNMP, Web Server, VNC
• Ingress Protection Rating: IP65 / NEMA4X front panel seal
• Operating Temperature: 0°C to 50°C
• Standards & Certifications: CE, cULus listed, RoHS compliant
• Country of Origin: Israel
