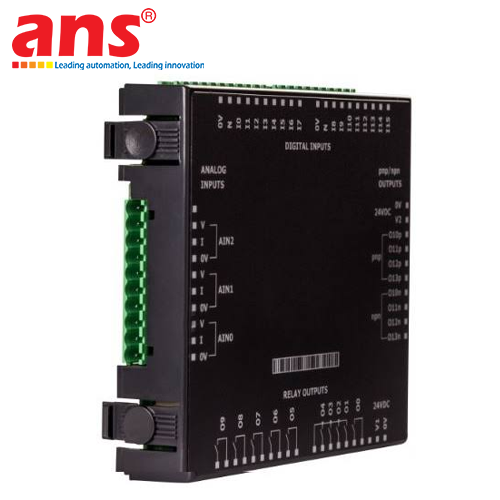

The Unitronics Model V200-18-E46B Snap-in I/O Module (Hardware Configuration: ISO 18/17 I/O, 9 ANA, 2 AO), engineered and manufactured by Unitronics Ltd. in Airport City, Israel, is a high-density mixed-signal I/O expansion cartridge designed exclusively for the Unitronics Vision Series of All-in-One Programmable Logic Controllers (OPLC™).

The Direct Snap-in Hardware Advantage:
For medium-to-large Unitronics Vision OPLCs (ranging from 5.7" to 12.1" models including V570, V700, V1040, and V1210), the front controller chassis is delivered without onboard I/O terminals to maximize application versatility. The V200-18-E46B module docks directly into the rear housing:
- Tool-Less Rear Mounting: Snaps securely onto the back of the controller chassis via 4 guide pins until a mechanical click confirms engagement. All 46 I/O channels interface immediately with the controller motherboard across a high-speed internal bus.
- 100% DIN-Rail Space Conservation: The module is completely flush within the rear profile of the display unit, eliminating remote I/O slice modules, DIN-rail mounting tracks, and interconnecting communication cords inside the electrical enclosure.
- Pluggable Screw Terminals: Features detachable terminal blocks that allow pre-wiring prior to system installation and enable fast drop-in hardware servicing without lifting individual wire terminations.

Comprehensive 46-Point High-Density I/O Matrix:
- 18 Galvanically Isolated Digital Inputs: Compatible with 24 VDC pnp (source) or npn (sink) wiring, arranged in two isolated groups of 9 channels. Includes 2 high-speed counter (HSC) inputs operating up to 10 kHz (32-bit resolution) or configurable as high-speed rotary shaft encoder inputs.
- 17 Digital Outputs:
  + 15 Electromechanical Relay Outputs: SPST contacts rated up to 3A @ 250 VAC / 30 VDC (resistive load), providing the switching power required to directly energize solenoid valves, auxiliary contactors, and visual tower lights without intermediate coupling relays.
  + 2 High-Speed Transistor Outputs: Configurable for pnp or npn switching, supporting PWM duty-cycle modulation or PTO frequency pulse train generation up to 50 kHz for stepper drives and servo indexing.
- 9 Multi-Range Analog Inputs: Configurable via internal jumpers for 0-10 VDC, 0-20 mA, or 4-20 mA process instrumentation signals:
  + Channels AN0 through AN2: Fast-converting 10-bit resolution channels.
  + Channels AN3 through AN8: High-precision 12-bit to 14-bit resolution channels, ideal for high-accuracy pressure, liquid level, and flow transmitters.
- 2 Galvanically Isolated Analog Outputs: 12-bit resolution digital-to-analog converters configurable for 0-10 VDC or 4-20 mA outputs, dedicated to proportional control valves, dampers, and VFD setpoint control.

Key Engineering Features & Operational Advantages:
- Heavy-Duty Multi-Tier Galvanic Isolation: Digital input banks, transistor outputs, and analog output channels are optically isolated from the main internal controller bus. This prevents plant ground potential differentials and motor inductive spikes from compromising the core PLC processor.
- Seamless VisiLogic™ Software Integration: The V200-18-E46B hardware architecture is natively recognized within the license-free VisiLogic™ programming platform. All input/output variables are automatically mapped into memory operands, allowing immediate drag-and-drop linking to ladder logic networks and graphical HMI display elements.

Target Industrial Sectors & Applications:
- Water & Industrial Wastewater Treatment: High-density analog inputs for multiple level, pH, dissolved oxygen, and turbidity sensors; relay outputs driving dosing pumps, mixer contactors, and blower starters; analog outputs throttling proportional chemical valves.
- Food, Beverage & Pharmaceutical Processing: Pasteurizer multi-zone temperature tracking, steam valve regulation, batch mixing tank automation, and packaging bagger cutoff control.
- Plastics, Rubber & Thermoforming: Multi-zone barrel temperature logging on extrusion lines, proportional hydraulic valve control, and mold clamping stroke sequencing.
- Industrial Boilers & Thermal Utilities: Steam pressure transmitter feedback, continuous feedwater modulation, combustion blower VFD speed control, and burner safety interlocks.

• Manufacturer: Unitronics (Unitronics Ltd.)
• Country of Origin: 100% Israel (Made in Israel)
• Product Line: Snap-in I/O Modules (Vision Series)
• Model Designation: V200-18-E46B
• Total Integrated I/O Capacity: 46 channels
• Controller Compatibility: Docks directly onto the rear of Unitronics Vision200, V230, V280, V290, V530, V560, V570, V700 (V700-T20BJ), V1040, and V1210 OPLCs
• DIGITAL INPUTS (DI):
  - Number of Inputs: 18 isolated inputs (organized in two isolated groups of 9)
  - Input Type: Selectable pnp (source) or npn (sink)
  - Nominal Voltage: 24 VDC (permissible range 0 to 28.8 VDC)
  - Galvanic Isolation: Optically isolated from bus and between input groups
  - High-Speed Counter Inputs (HSC): Inputs I0 and I2 support up to 10 kHz high-speed counting (32-bit resolution) or dual shaft encoder tracking
• DIGITAL OUTPUTS (DO):
  - Total Outputs: 17 channels (15 Relay + 2 Transistor)
  - Relay Outputs:
    + Quantity: 15 electromechanical SPST relay contacts
    + Contact Rating: 3A maximum @ 250 VAC / 30 VDC (resistive load)
    + Response Time: 10 ms (activate), 5 ms (release)
  - Transistor Outputs:
    + Quantity: 2 isolated solid-state channels
    + Output Type: Selectable pnp or npn (MOSFET Open Drain)
    + Rated Current: 0.5A continuous per channel (24 VDC nominal)
    + High-Speed Functionality: Supports PWM frequency generation up to 50 kHz or PTO pulse trains
• ANALOG INPUTS (AI):
  - Number of Inputs: 9 single-ended channels (referenced to common ACM connected to 0V)
  - Permissible Input Ranges: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA (set via internal jumpers)
  - Conversion Resolution:
    + Channels AN0 to AN2: 10-bit resolution (0 to 1023 counts)
    + Channels AN3 to AN8: 12-bit to 14-bit high resolution (range dependent)
• ANALOG OUTPUTS (AO):
  - Number of Outputs: 2 isolated single-ended channels
  - Output Signal Ranges: 0 to 10 VDC (minimum load 1 kΩ) or 4 to 20 mA (maximum load 500 Ω)
  - Conversion Resolution: 12-bit resolution (0 to 4095 counts)
  - Galvanic Isolation: Optically isolated from internal controller bus
• POWER SUPPLY REQUIREMENTS:
  - Output External Supply: 24 VDC nominal (permissible range 20.4 to 28.8 VDC)
  - Internal Logic Power: Supplied directly through the OPLC docking bus
• MECHANICAL & ENVIRONMENTAL:
  - Terminal Blocks: Removable screw terminal connectors (5.08 mm and 3.81 mm pitch)
  - Wire Gauge Capability: 26 to 12 AWG (0.13 mm² to 3.31 mm²)
  - Environmental Ingress Rating: IP20 / NEMA 1 (when snapped into the OPLC)
  - Operating Ambient Temperature: 0°C to +50°C (+32°F to +122°F)
  - Operating Humidity: 10% to 90% RH (non-condensing)
  - Net Weight: Approximately 280 g (9.87 oz)
• International Compliance: UL Listed, CE marked, RoHS compliant, ISO 9001 certified.
