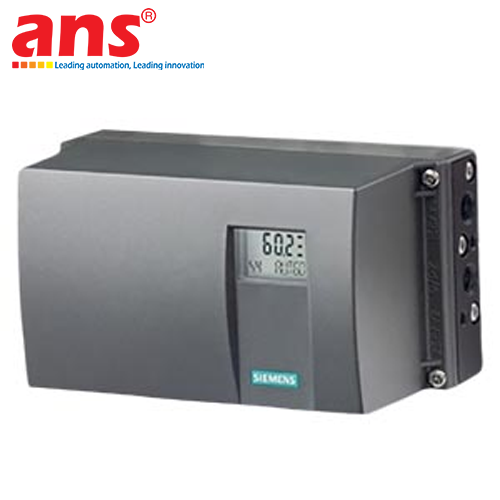

The Siemens SIPART PS2 Smart Electropneumatic Valve Positioner Model 6DR5010-0NG00-0AA0, engineered and manufactured by Siemens AG conforming to stringent global manufacturing protocols across EU and China production facilities, is an internationally acclaimed benchmark in industrial valve automation and process control.

Model Number Architecture Breakdown (6DR5010-0NG00-0AA0):
- 6DR50: SIPART PS2 series, 2-wire base instrument (4 to 20 mA loop-powered, without HART communication protocol).
- 1: Single-acting pneumatic operating principle designed for spring-return actuators.
- 0: Heavy-duty glass-fiber reinforced Polycarbonate (Makrolon) enclosure.
- 0: Standard industrial version without explosion protection (Non-Ex / Safe Area).
- N: Pneumatic connection 1/4-18 NPT, electrical conduit entry 1/2-14 NPT.
- G: Standard build without internal alarm/limit switches (Without limit monitor).
- 0: Base configuration without optional plug-in accessory modules.
- 0: Standard multilingual software and documentation package.
- -0AA0: Standard delivery without integrated pressure gauge manifold blocks.

Key Engineering Features & Operational Advantages:
- Minimal Steady-State Air Consumption (Piezo Valve Technology): Unlike legacy positioners utilizing flapper-nozzle systems that constantly vent compressed air into the atmosphere, the SIPART PS2 uses piezoelectric micro-valves. Once the valve reaches its target setpoint, the air consumption drops to a negligible level (< 0.01 Nm³/h), delivering substantial electrical energy savings across compressed air generation systems.
- One-Touch Automatic Initialization (Auto-Init): Equipped with an internal microprocessor that automatically calculates mechanical end stops, measures stroke travel or rotational angle, and optimizes dynamic PID control parameters within minutes at the push of a button, drastically reducing plant commissioning times.
- Comprehensive Local User Interface: Features a high-contrast digital LCD screen displaying setpoint values, actual valve position in percent, diagnostic fault codes, and internal temperature. Three pushbuttons allow rapid on-site calibration, span adjustments, and split-range configurations without handheld communicators.
- Rugged IP66 / NEMA 4X Polycarbonate Enclosure: Highly resistant to corrosive chemical vapors, UV radiation, and salt spray. The robust enclosure prevents particulate ingress and moisture intrusion, ensuring dependable operation across outdoor industrial installations.
- Universal Actuator Compatibility: Easily mounts to linear actuators conforming to IEC 60534-6-1 (NAMUR linear) and rotary part-turn actuators conforming to VDI/VDE 3845 (NAMUR rotary).

Target Industrial Sectors & Applications:
- Chemical & Petrochemical Refining: Precise flow and level regulation in single-acting control valve manifolds handling acids, caustics, and hydrocarbons.
- Thermal Power & Utilities: Modulating boiler feedwater valves, deaerator level control, auxiliary steam pressure regulation, and flue gas scrubbers.
- Water & Wastewater Treatment: Throttling aeration blower butterfly valves, polymer flocculant dosing pumps, and municipal pressure-reducing stations.
- Food, Beverage & Pharmaceutical Processing: Sanitization steam control (CIP/SIP loops), jacketed reactor temperature modulation, and sterile filling lines.
- Pulp & Paper Processing: Precise control of bleaching chemical feed valves, stock slurry blending, and additive flow lines.

• Manufacturer: Siemens (Siemens AG)
• Country of Origin: 100% EU / China (conforming to global Siemens manufacturing standards)
• Product Family: SIPART PS2 Series Smart Electropneumatic Valve Positioners
• Model Designation / Order Code: 6DR5010-0NG00-0AA0
• Actuator Action Principle: Single-acting (for spring-return pneumatic actuators)
• Input Signal: 4 to 20 mA DC (2-wire loop-powered connection)
• Effective Load Voltage: Minimum 3.6 VDC (equivalent to approx. 180 Ω @ 20 mA)
• Digital Communication: Without HART protocol (pure analog 4-20 mA)
• Pneumatic Valve Technology: Piezoelectric micro-valve system
• Steady-State Air Consumption: Negligible, < 0.01 Nm³/h (< 0.006 scfm)
• Supply Air Pressure: 1.4 to 7.0 bar (20 to 100 psi)
• Compressed Air Quality: Clean, dry, oil-free conforming to ISO 8573-1 Class 3
• Mechanical Stroke / Travel Range:
  - Linear Actuators: 3 to 130 mm (up to 200 mm with extended feedback lever)
  - Part-turn / Rotary Actuators: 30° to 100° rotational angle
• Positioning Performance: Positioning error < 0.05%, deadband < 0.1%
• Local Interface: Integrated monochrome LCD screen with 3 pushbuttons
• Automated Commissioning: Automatic initialization (Auto-init) with self-tuning PID
• Pneumatic Ports: 1/4-18 NPT female thread
• Electrical Conduit Connection: 1/2-14 NPT thread
• Enclosure Material: Glass-fiber reinforced Polycarbonate (Makrolon)
• Ingress Protection Rating: IP66 / NEMA 4X conforming to EN 60529
• Operating Ambient Temperature Range: -30°C to +80°C (-22°F to +176°F)
• Mechanical Vibration Resistance: Up to 10g from 10 to 2000 Hz
• Pressure Gauge Block: None included (Option 0AA0)
• Unit Dimensions: Approximately 180 x 135 x 95 mm (7.1” x 5.3” x 3.7”)
• Net Instrument Weight: Approximately 0.9 kg (2.0 lbs)
• Regulatory Compliance: CE marked, UKCA, RoHS, ISO 9001 certified.
