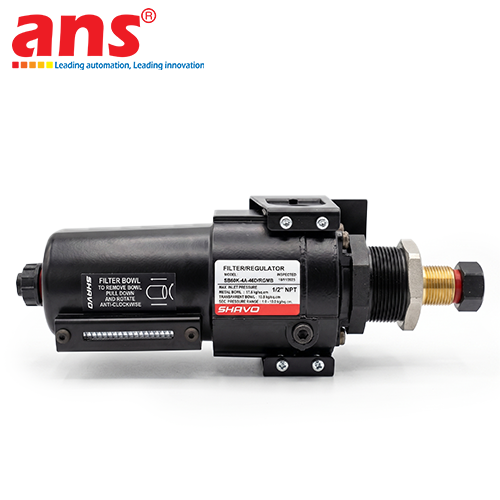

SHAVO B00060G01486 (SB60K-6A-A6D-RGLN-XXX-XXX)

Introduction: The SHAVO B00060G01486 Compressed Air Filter cum Regulator Combination Unit (Technical Code: SB60K-6A-A6D-RGLN-XXX-XXX) belongs to the high-performance VAYU Standard family, engineered and manufactured 100% in India. This modular 2-in-1 assembly combines fluid/particulate decontamination with line pressure regulation. It serves as an essential defensive threshold for industrial pneumatic lines, cleaning the compressed air stream before it drives sensitive and expensive field machinery.

The assembly interfaces with process infrastructure via heavy-duty 3/4" NPT x BSPT ports built upon a VAYU 1/2" Basic model core, utilizing an ergonomic rotary knob for smooth pressure tracking adjustments. Inside the filter chamber, a premium sintered bronze element provides a fine 5-micron filtration rating, catching microscopic solid grains and condensed moisture drops. Optimized for uninterrupted uptime, the device incorporates a fully automatic drain mechanism paired with a robust metal bowl and built-in sight glass. This allow field operators to monitor fluid accumulation levels without risk of bowl fracturing under high stress.

Key Features & Technical Specifications:

• Manufacturer: SHAVO (India)

• Product Series: VAYU Standard Series - Filter cum Regulator Combination Unit

• Ordering Code: B00060G01486

• Full Engineering Code: SB60K-6A-A6D-RGLN-XXX-XXX

• Port Dimensions: 3/4" NPT x BSPT connection (adapted to VAYU Standard 1/2" Basic module geometry).

• Filtration Rating: 05 Micron high-capacity sintered bronze filter element (cleanable and reusable).

• Drain Logic Configuration: Automatic drain assembly utilizing highly resilient oil-proof Nitrile Elastomer seals.

• Bowl Architecture: Ruggedized metal bowl body integrating an impact-resistant vertical sight glass window.

• Regulator Characteristics: Relieving-type pressure design spanning a versatile calibration spectrum from 0.87 to 8.75 Bar (12 - 125 PSI).

• Instrumentation Packages: Shipped standard with an analog dial pressure gauge; this configuration excludes a mounting bracket assembly.

• Country of Origin: 100% Made in India.
