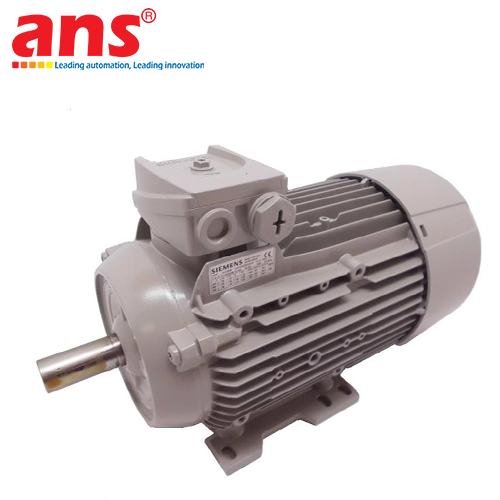

SIEMENS SIMOTICS GP 1LE1003-0EB42-2JA4-Z THREE-PHASE ASYNCHRONOUS MOTOR

DEEP PRODUCT OVERVIEW & HEAVY INDUSTRIAL DRIVE INFRASTRUCTURE
The Siemens SIMOTICS GP 1LE1003-0EB42-2JA4-Z (hardwired with specific factory-customized system option modifiers designated by the -Z suffix) is a premium-tier industrial three-phase asynchronous aluminum housing induction motor (Three-phase Asynchronous Motor / Induction Motor) belonging to the globally renowned SIMOTICS GP (General Purpose) product generation engineered and quality-tested by the automation and power tech pioneer Siemens (Germany). This advanced device encapsulates high-density copper stator windings and an optimized low-loss rotor inside a lightweight, pressure-cast aluminum alloy shell, combining elite thermal heat dissipation with high structural stiffness to suppress high-frequency frame vibration. Machined under an uncompromised "EU/China Origin" benchmark, this hardware is rigorously assembled either at Siemens' central facility in Germany or within their synchronized joint-venture infrastructure in China under unified global quality assurance codes, guaranteeing identical component metallurgy. It functions as the definitive technological drive solution to automate, spin, and govern centrifugal water pumps, large-scale HVAC smoke extraction fans, cooling tower cell arrays, screw air compressors, and express sorting conveyors active across food preparation cleanrooms, chemical plants, wastewater treatment centers, and automated fulfillment grids via Siemens Vietnam.

ELITE IEC IE3 PREMIUM EFFICIENCY RATING & THERMAL RESILIENT ALUMINUM GEOMETRY
The core technical edge and primary commercial asset of the Siemens 1LE1003-0EB42-2JA4-Z motor relies on its absolute compliance with the strict international IE3 Premium Efficiency parameters (governed under universal IEC 60034-30-1 directives):
- By leveraging high-purity copper core layouts paired with cold-stamped silicon technical steel laminate blocks, internal core losses, winding resistances, and parasitic eddy currents are kept to a micro-minimal tier. The machine transforms electrical power into shaft breakout torque with outstanding efficiency coefficients, cutting continuous 24/7 power demand metrics by up to 15-20% and tapering thermal heat output dissipation.
- Advanced Aluminum Housing Architecture: Extruded with cooling fins wrapped co-axially along the barrel shell, the structural casing coordinates with the shaft-driven rear fan to flush out internal winding heat. The technical aluminum profile is completely inert against atmospheric humidity, light chemical vapors, and coastal salt air corrosion, while drastically minimizing the gross static assembly mass resting on machine brackets compared to conventional heavy cast-iron alternatives.

GEOMETRIC IEC 80M FRAME SIZE SCALE & SECURE IM B5 FLANGE MOUNTING
The precise alphanumeric structural code embedded within the 1LE1003 motor prefix explicitly maps standard international mechanical configurations, allowing controls layout engineers to trace drop-in compatibility layout variables instantly:
- Standardized IEC 80M Frame Size: Governs strict millimetric shaft output diameters, keyway slots, and alignment boundaries. This balanced geometry secures optimal power distribution at medium and high rotational velocities, providing smooth, drift-free runtime operation under full load.
- Universal IM B5 Flange Mounted Profile: This configuration dictates a large-diameter front mating flange face completely free of lower structural feet. The front faceplate incorporates pre-drilled technical mounting holes designed to bolt flush straight into reduction gearboxes, centrifugal pump impellers, or machine frame bulkheads. The IM B5 layout entirely eradicates shaft concentricity misalignment risks, slashes physical footprint margins inside small machine frames, and maximizes dynamic linear torque transfer.

WEATHERPROOF IP55 SEALS & CUSTOMIZED RUGGED "-Z" FACTORY MODIFIERS
- Industrial 3-Phase Electrical Power Infrastructure: The hardware is engineered to run seamlessly over standard 400 VAC - 3 Phase, 50 Hz industrial current lines. Built with high-durability Class F wire insulation (rated to survive high internal thermal ceilings up to 155°C) and completely sealed to achieve the IP55 international ingress protection rating, the motor block keeps its electronic core isolated from fine particle dust deposits and fluid sprays common to grease-laden manufacturing shop floors.
- Customized Suffix Coded "-Z" Package: Indicates that the standard core is factory-upgraded with premium specialized options chosen during configuration (such as integrated PTC thermistors embedded into the winding heads for smart over-temperature trip monitoring, high-capacity tracking bearings for high-speed belt tracking, altered top or side-mounted terminal box positioning, or low-ambient sub-zero grease seals). This locks down ultimate operational versatility, making the Siemens SIMOTICS GP 1LE1003-0EB42-2JA4-Z a highly adaptive, safe, and wear-free dynamic drive choice built to survive continuous plant operating parameters.

ELECTRICAL DATA & TRANSISTOR PERFORMANCE INDEX
- Equipment Manufacturer: Siemens AG (Germany)
- Product Family Generation: SIMOTICS GP (General Purpose Motor Group)
- Base Motor Core Model: 1LE1003-0EB42-2JA4
- Extended Factory Modifier Code: -Z (Houses customized premium factory pre-packaged configuration options)
- Drive System Classification: Squirrel-cage Three-Phase Asynchronous Induction Motor
- Rated Operating Supply Input: 400 V AC Heavy Industrial Grid (3-Phase / 3-pha configuration)
- Power Line Frequency: 50 Hz
- Efficiency Performance Classification: IEC IE3 Premium Efficiency rated (Compliant with universal IEC 60034-30-1 codes)
- Internal Winding Insulation Index: Class F safety rating (Class F insulation certified up to 155°C thermal threshold limits)

MECHANICAL PROPERTIES & FLANGE COUPLING
- Standard IEC Frame Size: 80M (Standardized metric geometric profile matching universal IEC footprints)
- Structural Shell Construction: High-pressure cast Aluminum alloy housing maximizing thermal dissipation index at reduced system mass
- Mechanical Mounting Geometry: IM B5 standard (Flange mounted configuration without lower bolt-down feet)
- Output Shaft Interface: Precision-ground metric shaft diameter integrated with a standard keyway slot to protect mechanical couplings
- Local Cooling System: Totally Enclosed Fan Cooled architecture driven via an integrated rear shaft fan (TEFC - IC 411 configuration).

CONNECTION TERMINALS & SAFETY ENCLOSURES
- Main Electrical Terminal Box: Fully gasketed, weather-tight terminal box supporting multi-directional cable gland entry paths
- Thermal Overload Protection (Coded via -Z): Supports direct implementation of embedded positive temperature coefficient (PTC) thermistors for active winding protection
- Mechanical Production Origin: European Union EU (Germany manufacturing facilities) / China (China Origin plants) - Fully aligned under standardized global Siemens engineering regulations.

ENVIRONMENTAL RATINGS & COMPLIANCE ALIGNMENT
- Ingress Protection Sealing Rating: IP55 Standard insulation (Completely dust-tight particle exclusion and certified resistant against fluid sprays)
- Continuous Duty Cycle Rating: S1 Compliance profile (Engineered for uninterrupted continuous operation 24/7 under rated load metrics)
- Quality & Safety System Standards: UL/CSA electrical safety listed, CE marked for European export compliance, fully aligned under global IEC 60034 alternating current machinery directives.
- Master System Deployment Profiles: Drives centrifugal fluid pumps, automated HVAC smoke-extraction and ventilation arrays, open cooling tower fans, industrial screw air compressors, and rapid parcel-sorting conveyor networks.
