Automatic IP changeover module XTNM-IG30-1300 Enensys Vietnam

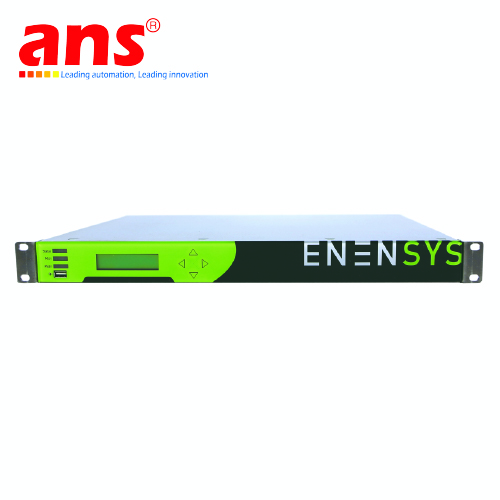

🌐 Enensys IPGuard V3 – Intelligent 1+1 IP Redundancy Switch

The IPGuard V3 from Enensys is a high-performance, intelligent 1+1 IP switch designed to guarantee service continuity and reliability for professional broadcast and streaming infrastructures. With automatic redundancy switching, hardware bypass, and seamless switching capabilities, the IPGuard V3 ensures that your broadcast never goes dark.

🎯 Key Features

• 1+1 Automatic IP Redundancy: Switches between main and backup IP streams (TS over IP, RTP, STL, etc.) based on alarms, packet loss, bitrate errors, jitter, or custom triggers.

• Seamless Switching (SMPTE 2022-7): Ensures flawless transitions between identical streams, even with delay differences, critical for DVB-T/T2, ATSC 3.0, ISDB-T, and IPTV head-ends.

• Hardware Bypass for 100% Service Uptime: Even in case of power loss, traffic continues thanks to integrated hardware bypass.

• High-Density & Scalable: Supports up to 6 TSoIP streams or 60 IP switches per module. Multiple modules can be cascaded for large deployments.

• Full Monitoring & Control: Web GUI and SNMP support for real-time alarms and configuration.

⚙️ Technical Highlights

• Management Port: 1× GbE RJ45 (GUI / SNMP)

• Data Ports: 2× GbE RJ45 inputs + 2× mirrored outputs

• Switching Criteria: IP alarms, ETR290/MIP/T2-MI/STL alarms, PID/bitrate, jitter, delay, packet loss, scheduled switch-over, peering across multiple devices

• Supported Standards: SMPTE 2022-7, Pro MPEG FEC, VLAN, NAT, IGMP, IP-transparent bridging

• Power Consumption: ~24 W per module

• Operating Temperature: 0 °C – 50 °C (3 modules) / 0 °C – 45 °C (6 modules)
