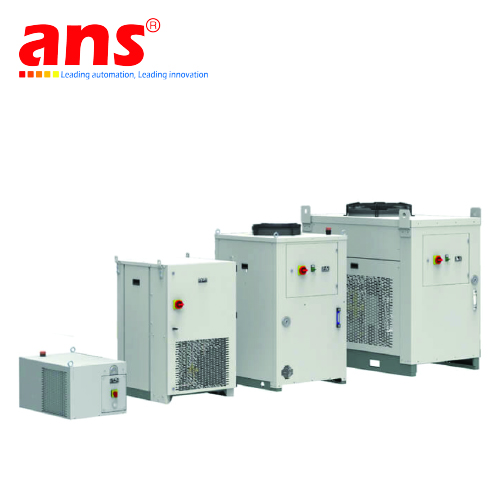

Water chillers for industrial TCW Rehsler Kühlsysteme Vietnam

Versions

• STRUCTURE: Made of powder-coated sheet steel, textured paint finish RAL 7035, and easily removable panels.
• COMPRESSORS: Hermetic refrigerant-cooled piston compressors, complete with thermal cut-out.
• REFRIGERATING CIRCUIT: Complete with filler neck, dry filter, expansion valve, high and low pressure safety pressure switches, R134a refrigerant.
• EVAPORATOR: Model with brazed stainless steel plates.
• AIR CONDENSER: Condenser coils made of high-efficiency finned copper tubes, complete with protective grille.
• AXIAL FAN: Axial fan, complete with electrical protection and protective grille.
• LIQUID CIRCUIT: The liquid circuit is made entirely of non-ferrous material to prevent contamination. Standard liquid circuit with open tank and pump, flow protection switch, pressure gauge, and control probe. Peripheral electric pump with 4.5 bar available head. Plastic reservoir with drain valve and visual level indicator.
• ELECTRICAL CONTROL PANEL: With main switch, fused motor protection with visual LED fault indicator, and voltage indicator.
• MANAGEMENT AND CONTROL: The TX110 control unit manages the operation of the chiller and issues warnings, if necessary, including high/low temperature alarms and a general alarm for serious faults. The display indicates whether the alarm relates to the refrigerant or liquid circuit. An on/off contact allows remote machine start-up. Control isolator switch for machine start-up.
• COLOR/COATING: Standard color: RAL 7035 textured.

Mounting kits and extensions

• High-pressure pump
• Frame made of satin-finished AISI 304 stainless steel
