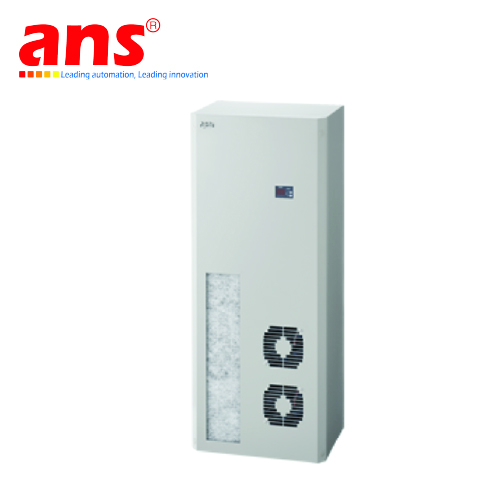

Apiste ENC-GR-LE-eco – High-Efficiency Non-Drain, HFC-Alternative Control Panel Cooling Unit (Model 4236)

The Apiste ENC-GR-LE-eco (e.g., model 4236) is an advanced, environment-friendly control panel cooler designed for industrial switchboards and electrical cabinets. It features HFC-alternative refrigerant, non-drain operation, and superior performance for cabinets in challenging conditions such as high ambient temperature, humidity or restricted drainage.

🔧 Key Features

• Uses HFO-1234yf (an eco-friendly refrigerant with GWP < 1) and complies with fluorocarbon regulation.

• Non-drain design: collects condensation internally via an evaporation filter—ideal where external drainage is difficult.

• Example model (4236) has side-mount type, cooling capacity ~1 300 W, rated voltage single-phase 200–240 V AC, dimensions approx. H1000×W400×D270 mm, weight ~38 kg.

• Setting temperature range: 25 – 45 °C; use area temperature: 20 – 55 °C; humidity 10–85 % RH (no condensation).

• Protection: equivalent to IP54 (internal circulation route) for dust & water resistance.

• External alarm contact (non-voltage, 250 V 2 A resistive load) for monitoring status.

✅ Benefits & Advantages

• Eco-friendly and compliant: No fluorocarbons means lower regulatory burden and easier maintenance.

• Drain-free design saves space and cost in installations where drainage piping is restricted.

• High-cooling capacity allows use in cabinets with high thermal loads (drives, power supplies, PLCs).

• Robust for industrial conditions, including high ambient temps and high humidity.

• Reliable monitoring with built-in alarm output ensures proactive maintenance.

• Cost-savings via less maintenance, reduced downtime, and extended equipment life.
