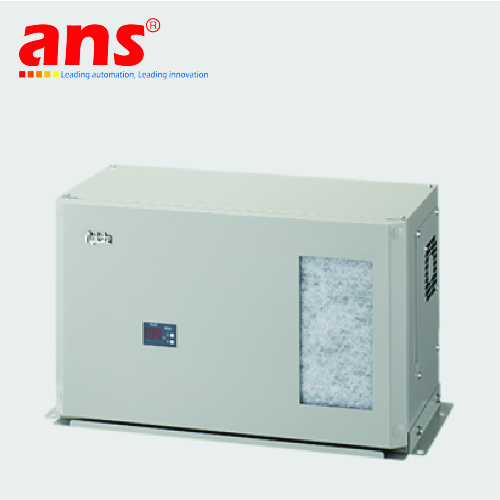

Control panel cooling unit ENC-GR500EX-eco Apiste Vietnam





The ENC‑GR‑eco Series from Apiste is an innovative panel cooling solution that operates without freon gas and eliminates the need for air filters. Designed for dusty, oily, and high-temperature environments, this series combines non-freon refrigerants, DC inverter control, and compact design for enhanced efficiency and ease of installation.


🔧 Key Specifications

Model Cooling Capacity Dimensions (mm) Weight Power Consumption
ENC‑GR500L‑eco ~490 W 600×300×115 ~15 kg ~330 W
ENC‑GR1000L‑eco ~980 W 730×300×260 ~26 kg ~454 W
ENC‑GR1500L‑eco ~1,480 W 1000×400×230 ~35 kg ~625 W
  • Power Supply: 200–240 VAC, single-phase

  • Cooling Type: Thermoelectric with inverter

  • Ambient Range: 20–55 °C / 10–85% RH

  • Protection Class: IP54

  • Certifications: CE / UL / CCC

  • External Alarm Output: Relay NO/NC
