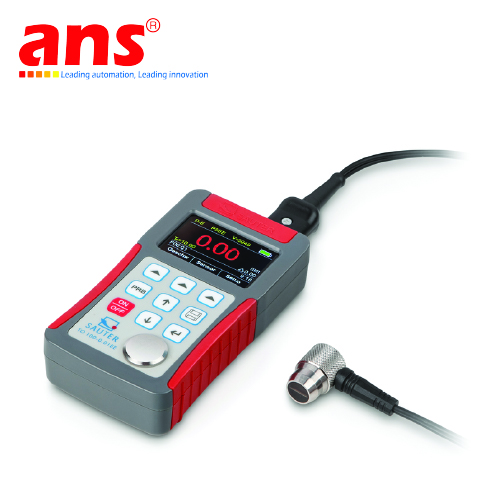

Premium Ultrasonic Thickness Gauge – Advanced NT Measurement Technology

Experience the next generation of ultrasonic measurement technology with our high-precision NT ultrasonic thickness gauge, designed for superior accuracy and speed. Equipped with automatic sensor adjustment (V-path correction), this device ensures rapid display updates and exceptional measurement reliability.

Two Measuring Modes for Material Thickness Detection:

  • Pulse-Echo Mode – Measure thickness up to 600 mm.

  • Echo-Echo Mode – Measure thickness up to 100 mm without removing coatings.

Echo-Echo Measurement Advantage:
Accurately determine the true thickness of materials regardless of existing coatings such as paint or corrosion protection on the base metal. Ideal for non-destructive testing of pipes, tanks, and structural components—measurements account for coating thickness adjustments without the need for removal.

Wide Material Compatibility:
Suitable for metals, plastics, ceramics, composites, epoxy, glass, and more.

High-Precision Mode:
Switch between 0.1 mm and 0.01 mm resolution for maximum accuracy.

Premium TFT Display:
Features a 320×240 color TFT screen with adjustable brightness for optimal visibility in any environment.

Large Internal Data Storage:
Store up to 100 datasets, each containing 100 individual measurements.

Energy-Efficient Operation:
Powered by two AA batteries for at least 30 hours of continuous use. Includes adjustable auto-sleep and display standby functions.

USB Data Output:
Easily transfer stored data to a computer via standard USB connection.

Triple Calibration Options:

  • Automatic zero-point calibration

  • One-point calibration at a specified thickness

  • Two-point calibration for enhanced accuracy

Three Measurement Modes:

  • Standard (Single) Mode – Quick individual readings

  • Scan Mode – Continuous measurement with live display of Actual, Min, and Max values

  • DIFF Mode – Calculates the difference between the measured value and a manually set nominal thickness

This ultrasonic thickness gauge is the perfect choice for industrial inspections, maintenance, and quality control, delivering precise results even in challenging field conditions.
