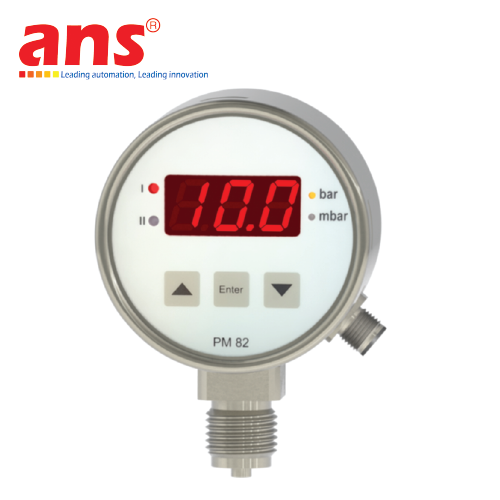

Digital Pressure Gauge PM82-0110-330 Noeding Vietnam

Description

The PM82 digital pressure gauge features a large, bright display. The digital contact gauge can still be easily read from a distance and therefore allows for a quick assessment of the process pressure. An analog output and 2 switch outputs widen the range of applications. The piezoresistive measuring principle in combination with a ceramic membrane is resistant to aggressive and abrasive media. The process connection is made of high-quality stainless steel 1.4404 and is therefore suitable for almost all media. All wetted components are food safe, making the unit ideal for use in beverage and process water applications. Additional process connections and measuring ranges can also be found in the PM82-3 and PM82-4 models.

Features

• 3 digit LED display
• Recording min./max. pressure
• Dry piezoresistive ceramic sensor
• Smallest measuring range: 0…500 mbar
• Largest measuring range: 0…250 bar
• Negative pressure measuring range: up to -1 bar
• Accuracy ≤ 0,5%
• 2 contact outputs DC PNP, max. 200mA
