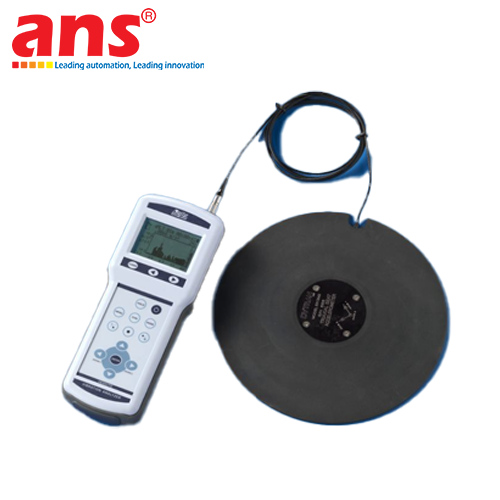

The Senseca HD2070.K1 3-Channel Vibration Analyzer Kit (developed within the renowned Delta Ohm measurement line, part of the GHM Group Germany) represents a premier, all-inclusive solution for occupational hygiene vibration assessments and industrial condition monitoring. Engineered and manufactured entirely in Germany, this instrument strictly conforms to the demanding ISO 8041 international standard for human vibration measurement instrumentation.

1. POWERFUL 3-AXIS SIMULTANEOUS VIBRATION ANALYSIS
The HD2070 main unit is equipped with 3 independent measuring channels that can be simultaneously connected to a triaxial accelerometer or three separate single-axis sensors:
• Hand-Arm Vibration (HAV): Measures vibration transmitted to the human hand-arm system from power tools such as drills, angle grinders, and chainsaws in full compliance with ISO 5349-1 and ISO 5349-2 (utilizing Wh frequency weighting).
• Whole-Body Vibration (WBV): Evaluates mechanical vibration transmitted through seats or floors of heavy machinery, industrial vehicles, excavators, and trains to the human body in compliance with ISO 2631-1 (utilizing Wk, Wd, Wc, We, Wj weightings).
• Industrial Machine Diagnostics: Evaluates mechanical unbalance, shaft misalignment, and bearing wear on industrial motors, pumps, and fans conforming to ISO 10816 and ISO 20816 standards.
• Building & Structural Vibration: Assesses ground-borne and construction-induced structural vibration affecting building integrity in compliance with DIN 4150-3 and ISO 4866.

2. SMART LOGGING CAPABILITY WITH VOCAL COMMENT RECORDING
• The unit features an integrated microphone allowing operators to record vocal voice annotations directly into stored measurement sessions, ensuring effortless site identification and traceability during post-processing analysis.
• Data logging is handled via an included HD2070MC 8 GB SD memory card, providing vast capacity for long-term continuous measurement campaigns at high sampling rates.

3. COMPLETE TURN-KEY HD2070.K1 KIT CONFIGURATION
The HD2070.K1 comes supplied in a rugged, heavy-duty carrying case loaded with all essential field accessories:
• HD2070 Unit: 3-axis vibration analyzer featuring high-speed data logging and vocal comment recording.
• Storage Card HD2070MC: High-reliability 8 GB SD memory card.
• Accelerometer Mounting Accessories: HD6188 silicone grease, HD6273 wax tray for accelerometer gluing, and 080A90 quick-fixing adhesive.
• PC Connectivity CP22: USB serial interface cable for high-speed PC connection (HD2110CSNM RS232 cable available upon request).
• "Noise Studio" Dedicated Software: Downloadable for Windows® PC, facilitating advanced 1/1 and 1/3 octave spectral analysis, A(8) exposure dose calculation, VDV calculation, and automated compliance reporting.
• Quality & Traceability: Includes manufacturer ISO 9001 calibration report according to ISO 8041, comprehensive user manual, and protective carrying case.

• Manufacturer: Senseca (Delta Ohm / GHM Group)
• Product Kit Model: HD2070.K1 (Includes HD2070 unit and full accessory kit)
• Origin: Germany (100% Germany Origin)
• Standards Compliance: ISO 8041:2005 (Human response to vibration), ISO 5349-1/2 (HAV), ISO 2631-1 (WBV), ISO 10816, ISO 20816, DIN 4150-3, IEC 61260 Class 1 (Octave filter bands)
• Calibration Documentation: Factory ISO 9001 Calibration report in accordance with ISO 8041

[MEASUREMENT CHANNELS & HARDWARE]
• Input Channels: 3 independent simultaneous channels
• Sensor Compatibility: IEPE / ICP triaxial or uniaxial accelerometers, voltage inputs
• Linear Dynamic Range: > 100 dB (eliminates manual range switching)
• Sampling Frequency: Up to 48 kHz per channel
• Frequency Analysis Range: 0.5 Hz … 20 kHz (depending on probe and filter profile)
• Spectrum Analysis: Real-time 1/1 and 1/3 Octave band digital filters, FFT spectrum analysis

[INTEGRATED FREQUENCY WEIGHTING FILTERS]
• Hand-Arm Vibration: Wh weighting filter
• Whole-Body Vibration: Wk, Wd, Wc, We, Wj, Wb weighting filters
• Building & Industrial Vibration: Wm weighting (DIN 4150), FLAT, High-pass, Low-pass

[MEASURED & CALCULATED PARAMETERS]
• Parameters: RMS, VDV (Vibration Dose Value), MTVV, Peak, Peak-to-Peak, Max, Min, Aeq, A(8) daily vibration exposure dose

[DATA STORAGE, COMMUNICATION & MULTIMEDIA]
• Voice Notes: Built-in microphone for vocal comment recording linked to data files
• Storage Media: 8 GB SD memory card (HD2070MC)
• PC Interface: USB serial connection via CP22 cable (Optional RS232 COM cable HD2110CSNM)
• Software: "Noise Studio" PC software suite (compatible with Windows OS)
• Power Supply: Built-in rechargeable Li-ion battery pack or external USB power
• Display: Backlit graphical LCD showing real-time spectrums, time histories, and numerical values

[HD2070.K1 KIT INCLUSIONS]
• HD2070 3-axis vibration analyzer unit with data logging and vocal comment recording
• HD2070MC 8 GB SD memory card
• HD6188 Silicone grease
• HD6273 Wax tray for accelerometer gluing
• 080A90 Quick fixing glue
• CP22 USB serial PC connection cable
• Heavy-duty protective carrying case and user manual
• ISO 9001 Calibration report compliant with ISO 8041
