METRIX HI-223-9M METRIC PROXIMITY PROBE ADAPTOR KIT

DEEP PRODUCT OVERVIEW & SENSING CALIBRATION ARCHITECTURE
The Metrix HI-223-9M is a premium-tier industrial metric proximity probe adapter kit (Proximity Probe Adaptor Kit - Metric), engineered, machined, and calibrated 100% in the United States by the world-renowned machinery reliability diagnostics leader Metrix Instrument Co. Controls and test personnel must note that this hardware does not function as an isolated standalone sensor; instead, it serves as a mandatory mechanical interconnect component (Accessory) designed to interface with the master Metrix HI-913 (or HI-903) Portable Vibration Calibrator. The system is engineered to solve a critical field verification problem: securely anchoring and establishing absolute geometric positioning for non-contact eddy current proximity probes. The uncompromised coordination between its high-strength, vibration-resistant bracket array and integrated micro-positioning conditioning turns the portable shaker into a vạn năng calibration node, delivering elite testing capability for Machinery Protection Systems (MPS) inside heavy power utilities, oil refineries, and large processing factories.

NON-CONTACT GAP SENSING PRINCIPLE & THE ADAPTOR KIT MECHANICS
Unlike traditional seismic accelerometers that operate by being rigidly bolted or magnetically clamped directly onto a machine's metal skin to measure structural vibration, proximity probes (Proximity Probes / Eddy Current Probes) operate on a non-contact, electromagnetic field principle. They emit a localized radio-frequency eddy current field to track dynamic variations in the physical gap between the probe tip and the target rotating shaft substrate of a high-speed turbine or compressor. Due to this non-contact operational design, it is physically impossible to thread a proximity probe body straight into the dynamic shaker plate of the HI-913 calibrator.
The Metrix HI-223-9M kit behaves as the ultimate mechanical staging interface:
- Rigid U-Bracket Assembly: Machined from high-strength technical alloy, this structure bolts down directly onto the stationary housing of the portable shaker, providing a rock-solid, non-moving geometric zero reference frame. It locks the proximity probe body securely in an absolute downward vertical alignment.
- Standardized Target Disk: Crafted from high-durability premium AISI 4140 technical steel—the universal material benchmark to which almost all global proximity probe arrays are factory-calibrated for dynamic response curves. This target disk is threaded straight onto the dynamic shaker plate of the HI-913. As the dynamic shaker energizes, the AISI 4140 disk oscillates up and down at user-defined force amplitudes and frequencies, precisely modeling the radial vibration, shaft float, or runout of an industrial rotating machine straight to the probe tip face.

MICROMETER THIMBLE CALIBRATION & THE METRIC "-9M" HARDWARE ADVANTAGE
- Precision Micrometer Thimble Tuning Interface: Ergonomically integrated directly onto the top node of the U-bracket assembly. Prior to driving dynamic shaker loops, maintenance teams must calibrate a precise baseline input Gap Voltage (typically -10 VDC, representing the absolute center of the linear operating window for standard Metrix or Bently Nevada loops). By manually dialing the micrometer thimble, technicians can translate the probe tip closer to or further away from the AISI 4140 target disk smoothly down to exact micro-millimetric scales. This rotary-limited adjustment locks down a reliable geometric starting index, eliminating manual hand-positioning tolerances.
- Standardized Metric Geometry (Suffix "-9M"): This mechanical profile is critically optimized for global industrial infrastructures outside the Americas. Every mounting grip, threaded port, and reduction bushing/sleeve included inside the HI-223-9M carrying box is machined according to the global metric standard (Millimeters). It guarantees perfect compatibility to lock down universal metric threaded probe shells including standard M5x0.5, M8x1, M10x1, and M14x1.5 patterns, saving field technicians from having to source expensive thread conversion adapters.

REAL-WORLD LINEARITY CHECKING AND MASTER PLC INTERLOCK VERIFICATION

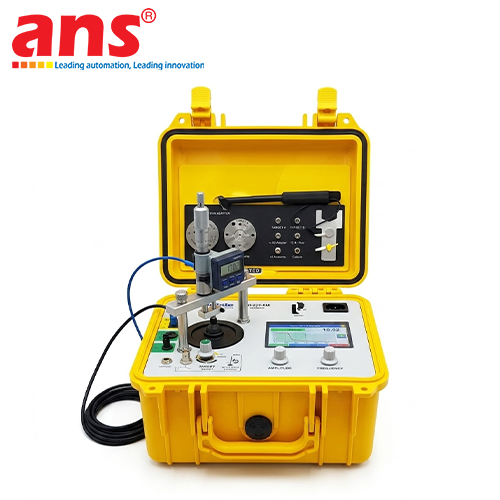

The Metrix HI-223-9M kit paired with the HI-913 portable shaker forms an uncompromised mobile verification lab to execute two critical machine diagnostics procedures:
- Dynamic Linearity Checking: By manually incrementing or decrementing the physical gap distance utilizing the micrometer thimble over set millimetric increments and tracking the resultant DC voltage output shift (e.g., standard 200 mV/mil or 8 V/mm curves), reliability engineers can plot the exact calibration curve of the probe. This detects proximity sensors that have suffered from internal coil aging, crystalline layer breakdown, or sensitivity decay caused by years of immersion in hot machine lube oils, preventing false tracking data.
- Emergency Interlock Loop & Trip Verification: By actively driving the proximity probe on the bracket assembly up to dangerous threshold limits (Danger/Trip levels), technicians can verify whether the downstream master control relays (e.g., Metrix monitors, Bently Nevada 3500 racks, Shinkawa panels, or central DCS cards) receive the signal and trigger emergency engine shutdown interlocks within specified millisecond limits, locking down a safe operational environment.

DETECTION CAPACITY & MECHANICAL PERFORMANCE
- Equipment Manufacturer: Metrix Instrument Co. (United States - USA)
- Device Assembly Model: HI-223-9M
- Equipment Classification: Proximity Probe Calibration Adaptor Kit (Metric specification)
- Compatible Hardware Infrastructure: Mated directly to the Metrix HI-913 Portable Vibration Calibrator, Metrix HI-903, and equivalent industrial master testing shakers within the Metrix tool group.
- Mechanical System Scale: Metric Standard (All geometric definitions logged in Millimeters)
- Core Application Profile: Secure rigid mounting and millimetric field calibration for non-contact Proximity Probes and Eddy Current Sensors.

MECHANICAL PROPERTIES & THREAD COMPATIBILITY
- Metric Thread Bushing/Sleeve Matrix Supplied: Includes a full array of precision-machined reduction bushings:
  + M5 Threaded Bushing (e.g., M5 × 0.5 pitch alignment)
  + M8 Threaded Bushing (e.g., M8 × 1 pitch alignment)
  + M10 Threaded Bushing (e.g., M10 × 1 pitch alignment)
  + M14 Threaded Bushing (e.g., M14 × 1.5 pitch alignment)
- Distance Tracking Mechanism: Premium integrated Micrometer Thimble tuning assembly positioned at the bracket apex.
- Micro-positioning Characteristics: Fine-pitch industrial thread profile supporting micro-millimetric displacement indexing to optimize input Gap Voltage setting accuracy.

MATERIAL COMPOSITION & INCLUDED COMPONENT BLOCKS
- Structural U-Bracket Assembly Substrate: High-strength engineered billet aluminum alloy, finished with an anti-abrasive hard-anodized surface layer to suppress high-frequency structural frame resonance.
- Calibration Target Disk Material: Premium technical-grade AISI 4140 structural Steel alloy (The certified international metallurgical benchmark for optimal eddy current electromagnetic field absorption).
- Mounting Attachment Method: Rigid high-torque bolt-down anchoring directly through precision structural holes onto the portable shaker framework.
- Mechanical Production Origin: 100% Manufactured in the United States (USA)

ENVIRONMENTAL RATINGS & MAINTENANCE DIRECTIVES
- Ingress Protection Rating: IP54 (High-level fine particle dust exclusion shielding micrometer threads, and resistant to liquid splashes common to open process areas)
- Resonance Invalidation Protection: Structural design eliminates internal parasitic natural frequencies, ensuring clean, distortion-free calibration across the calibrator's 7 Hz to 10,000 Hz spectrum.
- Industrial MPS System Compatibility: Seamlessly verifies transducer tracking profiles for Bently Nevada, Metrix, Shinkawa, and Yokogawa machinery protection racks.
- Preventive Field Maintenance Directive: The AISI 4140 magnetic target disk surface must be cleaned with approved moisture-removing technical solvents following field use to eliminate airborne condensation rust risks.
