The genuine range of accessories and modular software options from Senseca (Delta Ohm / GHM Group - Italy) is engineered to expand and optimize the testing versatility of the HD2070 3-channel vibration analyzer. By integrating these specialized sensors, mechanical adapters, and analytical firmware upgrades, users can seamlessly extend the application scope from standard occupational health evaluations to civil engineering structure monitoring, floor vibration analysis, and advanced acoustic/mechanical diagnostics.

The hardware line includes the HDBV-1000 high-sensitivity tri-axial IEPE accelerometer paired with the HD2030AC5 floor adapter, delivering an ideal setup for capturing low-amplitude ground, floor, and structural vibrations in production facilities, railways, and construction sites. For human ergonomics and hand-arm vibration (ISO 5349), the miniature HDP356A02 tri-axial ICP accelerometer provides reliable measurements, easily clamped onto power tool handles, machinery brackets, or vibrating shafts using the HD2030AC1 cube adapter or the HD2030AC2 strap mounting kit. Signal integrity is reliably preserved using the heavy-duty HD2030.CAB3M-5M shielded cable equipped with 4-pin M5 to push-pull circular connectors.

To maximize analytical capabilities, Senseca provides two dedicated firmware options: Option HD2070.O1 unlocks real-time spectral analysis in 1/1 octave bands (0.5 Hz – 2 kHz) and 1/3 octave bands (0.5 Hz – 3.15 kHz) compliant with IEC 61260 Class 1 (including ISO 9001 factory calibration); and Option HD2070.O2 delivers comprehensive statistical evaluation, generating acceleration probability distribution profiles and computing percentile exposure metrics from L1 to L99 in 1 dB classes. This modular ecosystem offers maximum flexibility for certified inspection agencies, structural health testing engineers, and R&D facilities.

• Manufacturer: Senseca (Delta Ohm / GHM Group)
• Country of Origin: Italy (100% Italy Origin)

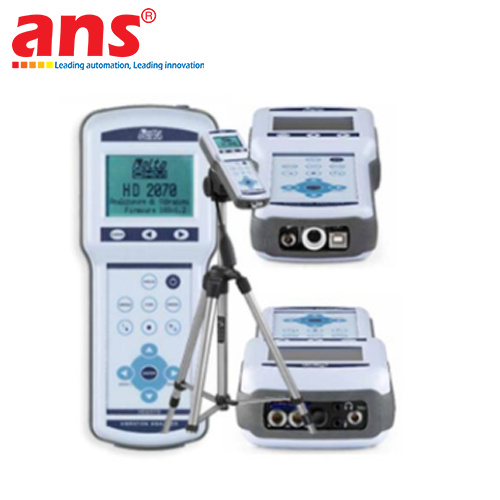

• Supported Model: Senseca / Delta Ohm HD2070 Vibration Analyzer Series
• Detailed Component & Option Breakdown:
  1. HDBV-1000 High-Sensitivity Floor Accelerometer:
     - Technology: Tri-axial IEPE high sensitivity accelerometer
     - Included: Dedicated mounting kit for combination with HD2030AC5 adapter, calibration chart
  2. HD2030AC5 Floor Measurement Adapter:
     - Rigid structural tripod platform for surface mounting of HDBV-1000 accelerometer
  3. HDP356A02 Tri-axial Hand-Arm Accelerometer:
     - Technology: Miniature ICP tri-axial accelerometer (ISO 5349 compliant)
     - Included: 081B05 10-32 UNF & M081B05 M6 copper-beryllium mounting screws, ACS-1T calibration card
  4. HD2030.CAB3M-5M Signal Cable:
     - Length: 5 meters, industrial shielded design
     - Connectors: Multipolar M5 4-pin (sensor side) to push-pull circular 4-pin connector (instrument side)
  5. HD2030AC1 Cube-Shaped Mounting Adapter:
     - Included: 10-32 UNF & 5-40 UNC hex socket screws with 4mm hex key, 10 cable ties (4.5x200mm), 1 metallic clamp (9mm)
  6. HD2030AC2 Accelerometer Mounting Adapter:
     - Included: 10-32 UNF & 5-40 UNC hex socket screws with 4mm hex key, 10 cable ties, 2 Velcro straps HD2030FV (25x300mm)
  7. HD2070.O1 "Spectral Analysis" Firmware Option:
     - 1/1 Octave spectrum bands: 0.5 Hz to 2 kHz
     - 1/3 Octave spectrum bands: 0.5 Hz to 3.15 kHz (Class 1 conforming to IEC 61260)
     - Includes ISO 9001 calibration report according to IEC 61260 for both filter banks
  8. HD2070.O2 "Statistical Analysis" Firmware Option:
     - Acceleration probability distribution graph and percentile level calculation from L1 to L99 in 1 dB classes
• Target Industries: Civil engineering & foundation testing, occupational health & hygiene (EHS), acoustic & mechanical testing laboratories, structural health monitoring, railway transport, mining, and manufacturing facilities.
