Multiplexer expands 8032-7V GEOKON Vietnam
Price: Contact
Brand: Geokon Vietnam
Category: 4.0 Industry
Supplier: ansvietnam
Origin: USA
0911472255Multiplexer expands 8032-7V GEOKON Vietnam

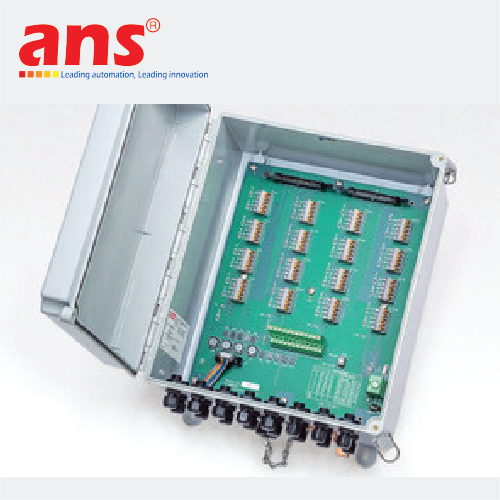

The Model 8032 Multiplexer expands the number of channels that can be read by the Model 8600-1/2 Dataloggers or the Model GK-404 Vibrating Wire Readout. The channels are protected against voltage surges with tripolar plasma surge arrestors and bipolar surge arrestors. Optional manual switches may be connected to the terminal board that permit easy access to each channel of the multiplexer for taking manual measurements with a portable readout in tandem with those taken automatically with the datalogger.
Specifications
- Switching Current1 A (maximum)
- Contact Resistance0.1 Ω (maximum)
- Insulation Resistance>1 GΩ
- Switch Life>200,000 cycles
- EnclosureNEMA 4X fiberglass
- Temperature Range−40°C to +60°C
- L × W × H¹342 × 301 × 160 mm
