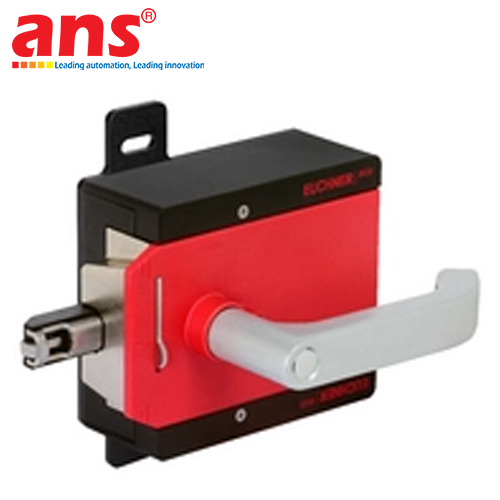

The Euchner Multifunctional Gate Box Generation 2 Model MGB2-L2HEB-PN-M-S3-GA-L-165505 (Factory Identification: Order No. 165505), engineered and manufactured by Euchner GmbH + Co. KG in Leinfelden-Echterdingen, Germany, is a modular industrial safety door interlocking and guard locking platform built for modern automated machinery and Industry 4.0 production environments.

The All-in-One Safety Door Station Architecture:
Rather than installing separate limit switches, magnetic interlocks, solenoid locks, push-button stations, emergency stop stations, door handles, and mechanical escape releases, the MGB2 Modular integrates all mechanical and electrical functions into a single rugged assembly mounted directly onto the safety fence or machine door frame.

Model Code Breakdown & Configuration (MGB2-L2HEB-PN-M-S3-GA-L-165505 / Order No. 165505):
- MGB2: Second-generation Multifunctional Gate Box series with enhanced modularity and diagnostics.
- L2: Guard locking by solenoid force (Open-circuit current principle: power-to-lock, power interruption releases the lock) with continuous electronic guard lock monitoring.
- H: Ergonomic industrial door handle module with integrated metal mechanical door stop and mounting plate.
- E: Integrated illuminated mushroom-head Emergency Stop pushbutton conforming to ISO 13850 and EN 60947-5-5.
- B: Integrated submodule containing 3 illuminated pushbuttons with functional symbol markings (e.g., Start, Reset, Gate Request).
- PN: High-performance PROFINET / PROFIsafe bus communication interface featuring an integrated 2-port switch with Media Redundancy Protocol (MRP) support.
- M: RFID transponder technology with Multicode evaluation, delivering maximum tamper resistance against intentional defeat.
- S3: Integrated heavy-duty M23 round connector designed for rapid plug-in attachment of handheld 3-stage enabling switches.
- GA: Supplied complete with an internal mechanical escape release assembly (MGB-E-A2) and heavy-duty mounting plate.
- L: Factory-configured for left-hinged doors (DIN left), field-convertible to right-hinged doors during installation.

Key Engineering Features & Operational Advantages:
- Maximum Safety Integrity (Cat 4 / PL e / SIL 3): Certified to the highest international machinery safety standards under EN ISO 13849-1 and EN IEC 62061 for both door position tracking and guard locking interlocking functions.
- Exceptional 2,000 N Locking Force (Fzh): Features a heavy-duty mechanical locking mechanism with Fzh = 2,000 N (Fmax = 2,600 N), preventing unauthorized or accidental entry while machine drives wind down to a zero-energy state.
- Plug-in M23 Enabling Switch Interface: Allows maintenance technicians to connect a 3-position enabling switch directly to the gate station when entering hazardous robotic envelopes for maintenance, jogging, or robot teaching.
- Internal Mechanical Escape Release: If an operator is inadvertently trapped inside the perimeter when the guard is locked, actuating the red interior escape lever unlocks the mechanism mechanically without electrical power, enabling fast egress.
- Heavy-Duty Industrial Metallurgy (IP65): Encased in a rugged die-cast zinc housing with nickel plating, reinforced with glass-fiber engineering polymers and stainless steel hardware. Engineered to withstand continuous exposure to machining coolants, weld spatter, and severe physical impacts.

Target Industrial Sectors & Applications:
- Automotive Manufacturing & BIW: Perimeter fencing for robotic body-in-white spot welding cells, powertrain machining transfer lines, and robotic press automation.
- Industrial Robotics & Automation: Gantry pick-and-place robots, automated palletizing stations, and laser processing enclosures.
- Machine Tools & Metal Forming: High-power fiber laser cutters, hydraulic press brakes, and automated CNC milling centers.
- Plastics & Rubber Processing: Large-tonnage injection molding machine clamping gates and tire curing press barriers.
- Smart Logistics & Intralogistics: Safety perimeter access for Automated Storage and Retrieval Systems (AS/RS) and high-speed parcel sorters.

• Manufacturer: Euchner (Euchner GmbH + Co. KG)
• Country of Origin: 100% Germany (Made in Germany)
• Product Family: MGB2 Modular Multifunctional Gate Box Systems
• Model Designation: MGB2-L2HEB-PN-M-S3-GA-L-165505
• Factory Order Number: 165505
• Guard Locking Principle: Solenoid force locking (L2 - Open-circuit current principle / Power-to-lock)
• Rated Locking Force Fzh: 2,000 N (conforming to EN ISO 14119)
• Maximum Locking Force Fmax: 2,600 N
• Latching Force: Approx. 25 N
• Transponder Coding Technology: RFID Multicode transponder (high tamper protection)
• Safety Integrity Levels (EN ISO 13849-1 & EN IEC 62061):
  - Monitoring of Guard Position: Category 4 / PL e / SIL 3
  - Guard Lock Monitoring: Category 4 / PL e / SIL 3
  - Submodule Safety Functions (Emergency Stop): Category 4 / PL e / SIL 3
  - Mission Time: 20 years
  - Probability of Dangerous Failure per Hour (PFHD): 2.62 x 10^-9
• Operator Controls & Indicators:
  - 1 illuminated Emergency Stop pushbutton per ISO 13850
  - 3 illuminated pushbuttons with symbol inserts
  - 1 integrated M23 plug connector for handheld enabling switch connection
• Internal Escape Release: Mechanical escape release assembly (MGB-E-A2) with mounting plate
• Fieldbus Communication: Integrated PROFINET / PROFIsafe bus module (MBM)
• Network Interfaces: 2x RJ45 ports (conforming to AIDA standard, with integrated MRP switch)
• Door Hinge Configuration: Factory set to DIN left (adjustable to DIN right)
• Operating Supply Voltage: 24 VDC (±15%)
• Current Consumption: Max. 350 mA (excluding external output loads)
• Ingress Protection Rating: IP65 conforming to EN 60529 (dust-tight and water jet resistant)
• Housing Metallurgy: Nickel-plated die-cast zinc, glass-fiber reinforced polymer, stainless steel
• Operating Ambient Temperature Range: -30°C to +55°C (-22°F to +131°F)
• Storage Temperature Range: -30°C to +70°C
• Shock & Vibration Resistance: Conforming to EN IEC 60947-5-3
• International Compliance: CE, cULus Listed, TÜV Rheinland, PROFIsafe certified, ISO 9001.
