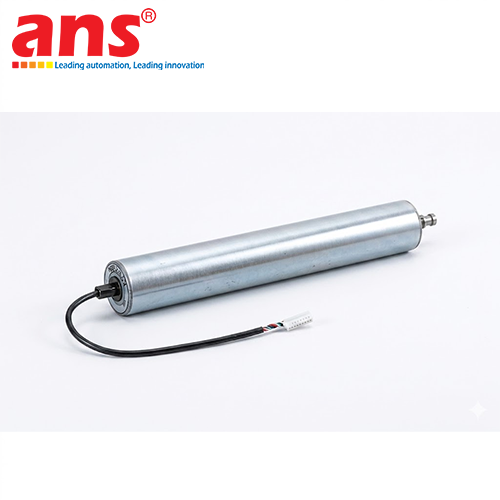

ITOH DENKI PM605VE-17-750-D-024-VG-PS INTELLIGENT IOT-ENABLED BRUSHLESS DC MOTORIZED DRIVEN ROLLER (MDR)

DEEP PRODUCT OVERVIEW & NEXT-GENERATION LOGISTICS SYSTEM INFRASTRUCTURE
The Itoh Denki PM605VE-17-750-D-024-VG-PS represents the definitive elite tier of modern industrial material handling drive engines, engineered as an intelligent internal-motor electric conveyor roller (Power Moller / Motorized Driven Roller - MDR) supporting edge-level IoT node integration, developed and manufactured 100% in Japan by the global market leader Itoh Denki. This advanced device functions as the primary dynamic drive component automating light-to-medium volume weight transit systems (handling collective distribution matrices up to 500kg across line frames), packing an "All-in-one" mechanical design footprint that encapsulates a heavy-duty Brushless DC (BLDC) motor (designated by the "VE" intelligent series) and a structural multi-stage alloy steel planetary reduction gearbox straight inside a 60.5mm diameter barrel cylinder. By strategically isolating the local motor-gear assembly from the external specialized digital circuit card architecture, Itoh Denki maximizes thermal dissipation coefficients, increases terminal isolation limits, and secures an extended uncompromised runtime lifecycle across demanding logistics terminals serviced via Itoh Denki Vietnam engineering loops.

SMART "VE" MOTOR METALLURGY – CLOSED-LOOP CONTROL LOOPS AND CLOUD-READY PREDICTIVE MAINTENANCE
The distinctive engineering asset lifting the PM605VE series into compatibility with advanced Industry 4.0 production landscapes is its integrated VE power core (Versatile Electric / Intelligent Digital Motor block):
- Advanced Network Control Topology: Far exceeding legacy motorized rollers that track fixed open-circuit power cycles, the VE core coordinates flawlessly with specialized companion smart driver boards (such as the standard CBV-108, integrated ZPA logic HBV-609, or multi-protocol IoT network blocks like the IB-P01 Profinet, IB-E EtherNet/IP, and CC-Link interfaces). This allows automation engineers to execute precise closed-loop controls, configuring smooth linear travel velocity increments, adjustable soft start/soft stop ramps, and dynamic bidirectional clockwise/counter-clockwise orientation switches.
- Edge-Level Remote Diagnostics System: The integrated internal encoder network continuously captures mechanical feedback indicators from inside the roller core, immediately discharging localized low-state error diagnostics parameters back to central master PLC racks upon reading package jam conditions, low-voltage power rail dropouts, or thermal overload spikes. Critically, this data feed supports active Predictive Maintenance routines, analyzing component strain trends to predict structural maintenance needs before hardware line stops occur on the floor.

ENLARGED 60.5MM STRUCTURAL STEEL BARREL & VERSATILE METRIC 750MM GEOMETRY
The exact alphanumeric mechanical notation embedded within the PM605VE-17-750-D-024-VG-PS configuration specifies physical installation margins instantly for site layout engineers:
- High-Tensile 60.5 mm Outer Barrel Diameter (Code 605): This specialized heavy-walled outer structural carbon steel cylinder delivers an exceptional section modulus. It thoroughly resists bending deflection under vertical package force weight down-loads and mitigates high drop physical impact forces (impact shock loads) encountered when heavy tote boxes enter transport sectors. The barrel span tracks an exact certified metric width of 750 mm (Code 750 / 75cm), matching medium-width conveyor clear frames to secure an expansive, perfectly level structural transport plane that protects traveling cargo mass against shifting.
- Torque-Optimized 17 m/min Line Velocity (Code 17): Geared to deploy a steady nominal linear velocity of roughly 17 meters per minute, the reduction gear maximizes breakout torque coefficients at the cylinder surface. This is perfect for dynamic weigh-scale inline checkweighers or case-taping machine entries where velocity must remain highly linear to prevent package sliding and minimize momentum spikes during quick start/stop cycles.

SPECIALIZED "VG" INTEGRATED V-GROOVE BODY & ANTI-ROTATION "PS" BRACKET SYSTEM WITH M8 JUNCTIONS
- Factory-Machined Structural V-Groove Profiles (VG Option): The alphanumeric identifier code "VG" specifies that the steel barrel shell features factory-machined technical V-shaped alignment grooves. This geometric structure empowers machine layout teams to lace heavy-duty timing belts or flat friction O-ring drive cords directly onto the powered PM605VE roller, routing kinetic propulsion over to slave idle rollers (Idler Rollers) clustered nearby, configuring an automated, synchronized travel sector (Zone) without requiring individual slave motors.
- Anti-Rotation Double-Ended Hexagonal Shaft Layout with Bracket Assembly (PS Option): The "PS" modifier signals that the end-shaft terminals are engineered as solid carbon steel hexagonal shafts on both sides, packaged alongside complementary industrial-strength zinc-plated mounting brackets (Mounting Bracket assembly). The hexagonal shaft blueprint completely locks down the axis against torsional spinning stresses generated when the brushless motor discharges extreme starting breakout torque, securing the roller flush inside the conveyor side beam frame while enabling tool-free drop-in physical installation and fast hot-swap service loops.
- Standardized M8 Multi-Pin Technical Cable Lead: The output axis houses a factory-molded technical cable ended in a heavy-duty industrial standard M8 5-pin thread-lock plug stretching 300mm length. The M8 interconnection blocks moisture ingress and fine airborne dust contamination, prevents reverse-polarity wiring terminal faults, and click-connects straight into auxiliary driver boards. Running strictly on touch-safe low-voltage 24V DC input rails (Code D-024) isolates floor operators from high-voltage hazards, satisfying global workplace risk-mitigation protocols while driving run-on-demand conveyor staging cycles inside Zero Pressure Accumulation (ZPA) topologies, slashing overarching warehouse grid power demands by up to 70%.

DYNAMIC PROPULSION METROLOGY & GEAR PERFORMANCE DATA
- Equipment Manufacturer: Itoh Denki (Japan)
- Full System Part Number Certified: PM605VE-17-750-D-024-VG-PS
- Device Classification: Intelligent Low-Voltage DC Motorized Driven Roller (MDR) / Power Moller
- Core Product Range: 24V DC Brushless Network-Compatible VE Intelligent Series
- Outer Barrel Shell Diameter (Tube Diameter): 60.5 mm (Heavy-walled structural steel core resisting bending stress)
- Effective Barrel Width (Tube Length): 750 mm (Standardized metric length optimized for medium-width conveyor channels)
- Nominal Linear Velocity Rating: ~ 17 meters per minute (Torque-maximized velocity parameter for stable process tracking)
- Embedded Drive Motor Core: Closed-Loop Network-Ready Brushless DC Motor (BLDC technology - VE Series)
- Mechanical Enclosure Layout: Sealed All-in-one cylindrical barrel containing motor and planetary gear sets, removing all external chains or belts.

ELECTRICAL RATINGS & INTERCONNECT PROVISIONS
- Main Input Supply Voltage Rail: 24 V DC safe low-voltage industrial current
- Power Rail Voltage Code Designation: D-024 industrial regulation rail
- Signal Interface Hardware Interface: Integrated 300mm cable outlet ended in an industrial M8 5-pin thread-lock quick-disconnect plug block.
- Termination Assembly Protocol: Tool-free Plug-and-Play synchronization straight into external smart Driver Cards or network modules (e.g., CBV-108, HBV-609 boards, or industrial IoT modules IB-P01 Profinet, IB-E EtherNet/IP, CC-Link).
- Automated Control Compatibility: Dynamic pairing supporting automated Zero Pressure Accumulation (ZPA) zones, programmable run-on-demand cycles, real-time CW/CCW rotation switching, multi-step velocity profiling, and cloud-ready predictive diagnostic fault data tracking.

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Tube Core Substrate Metallurgy: High-thickness engineered structural carbon steel treated with protective anti-oxidization industrial zinc plating compliant with Japanese manufacturing standards.
- External Barrel Machined Profiling (VG Modifier): Factory-milled integrated dual V-Groove tracks (V-Groove / Poly-V cylinder profile) handling slave O-ring belt routing.
- End Shaft Terminal Mechanical Profile (PS Modifier): Dual-ended high-rigidity carbon steel Hexagonal Shaft configuration matching a packaged set of heavy-duty structural side-rail Mounting Brackets for anti-torque stabilization.
- Maintenance Requirements Lifecycle: 100% Zero-maintenance (Maintenance-free) throughout operational product lifecycle.

ENVIRONMENTAL RATINGS & FIELD COMMISSIONING MANDATES
- Cleanroom Air Safety Rating: Carbon-dust-free solid-state build certified for high-end electronics manufacturing cleanroom isolation, running silently with minimal noise generation.
- Primary Industrial Deployment Profiles: Slim-profile automated Zero Pressure Accumulation (ZPA) sorting zones, high-throughput parcel selection tracks in logistics/e-commerce hubs, high-capacity multi-directional sortation diverter cassettes, and advanced cleanroom automated packaging machinery lines.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
