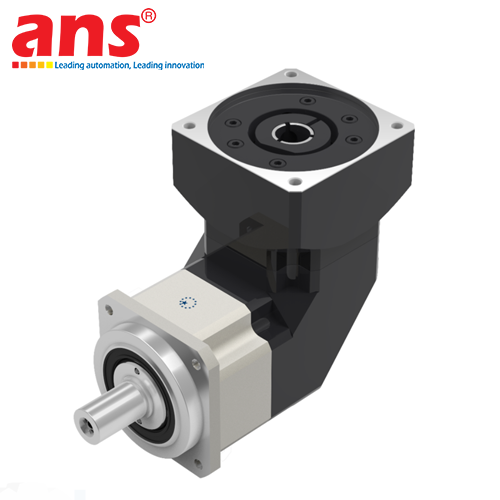

The APEX DYNAMICS AP142-040-S2-P2 is a premier heavy-duty, high-precision in-line planetary gearbox engineered by APEX DYNAMICS, INC. (Taiwan) – a world leader in high-performance servo motion transmission technology. This unit is configured with a dedicated custom motor adapter plate coded P0403300606 / AD-P90-M90-6, ensuring direct, seamless, and coaxial mounting onto Mitsubishi MELSERVO-J4 Series Medium Inertia AC Servo Motors model HG-SR352B (3.5 kW rated output, 2000 rpm rated speed, equipped with an electromagnetic holding brake).

The gearbox features case-hardened, precision-ground Helical Planetary Gears conforming to DIN 6 accuracy standards. Its helical gearing design maximizes tooth contact ratio and engagement surface area, delivering substantial continuous torque capacity, smooth power delivery, minimal acoustic emission, and minimized thermal buildup compared to conventional spur gears. Engineered with a 2-stage gear reduction ratio of 1:40 and certified P2 backlash class (≤ 7 – 9 arcmin), this model guarantees superior motion repeatability, high torsional rigidity, and outstanding shock-load resistance for heavy-duty servo axes. Enclosed in a rugged housing with IP65 ingress protection and lubricated for life with premium synthetic grease, it provides reliable, maintenance-free operation across industrial automation environments.

• Manufacturer: APEX DYNAMICS, INC.
• Brand Origin: Taiwan
• Full Model Designation: AP142-040-S2-P2 / MITSUBISHI HG-SR352B
• Input Motor Adapter Code: P0403300606 / AD-P90-M90-6
• Product Classification: Heavy-Duty Precision In-line Helical Planetary Gearbox
• Dedicated Mating Servo Motor: Mitsubishi AC Servo Motor HG-SR Series model HG-SR352B (3.5 kW / 3500W rated power, Medium Inertia, 2000 rpm, with electromagnetic brake B)
• Frame Size: 142 mm flange footprint
• Stage Configuration: 2-Stage reduction
• Nominal Gear Ratio: 1:40 (i = 40)
• Gearing Technology: Precision-ground case-hardened Helical Planetary Gears (DIN 6 standard)
• Backlash Rating (P2 Class): ≤ 7 – 9 arcmin (Reduced backlash for precision positioning)
• Transmission Efficiency: ≥ 94% (2-stage configuration)
• Nominal Output Torque (T2N): Approx. 450 Nm – 550 Nm
• Maximum Acceleration / Emergency Stop Torque (T2NOT): Up to 2.5 – 3 times nominal torque
• Rated Input Speed (n1N): 2,000 – 3,000 rpm
• Maximum Input Speed (n1B): Up to 5,000 rpm
• Maximum Radial Load Capacity (F2rB): Up to 6,500 N – 7,200 N
• Maximum Axial Load Capacity (F2aB): Up to 3,800 N – 4,500 N
• Output Shaft Configuration (Type S2): Smooth solid shaft with standard keyway
• Ingress Protection Rating: IP65 (Total dust-tight protection and resistance against water jets)
• Lubrication: Factory-sealed high-performance synthetic grease (Maintenance-free lifetime lubrication)
• Direction of Rotation: Output shaft rotates in the same direction as the input motor shaft
• Housing Construction: High-strength treated alloy steel and stainless steel body for corrosion resistance
• Operating Ambient Temperature: -10°C to 90°C
• Industrial Applications: Heavy-duty vertical Z-axis CNC drives with brake holding, industrial laser/plasma cutting systems, high-load servo rack-and-pinion actuators, large rotary positioning tables, and automated roll forming machinery
