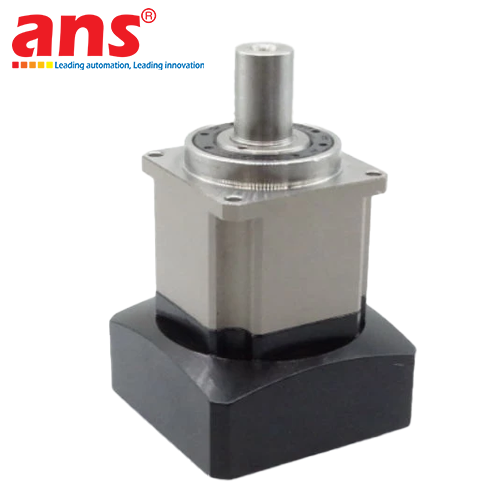

The APEX DYNAMICS AF060-080-S2-P2 is a premier high-precision in-line planetary gearbox belonging to the acclaimed AF Series engineered by APEX DYNAMICS, INC. (Taiwan) – a world-renowned leader in planetary gear technology for servo motion control. This unit features a dedicated custom adapter flange for direct, seamless mounting onto Allen-Bradley (Rockwell Automation) Kinetix VPL Series Low Inertia AC Servo Motors model VPL-A0631M.

The AF Series is distinguished by its round output mounting flange, providing superior structural stiffness under load. Its gearing mechanism utilizes case-hardened, precision-ground Helical Planetary Gears conforming to DIN 6 accuracy standards, which maximize gear tooth surface contact while minimizing operating noise, friction, and thermal buildup compared to conventional spur gears. Engineered with a high 2-stage gear reduction ratio of 1:80 and certified P2 backlash class (≤ 7 – 9 arcmin), it delivers outstanding angular repeatability and motion accuracy. Encased in a rugged stainless steel housing with IP65 ingress protection and lubricated for life with synthetic grease, it provides dependable, maintenance-free operation across demanding automated environments.

• Manufacturer: APEX DYNAMICS, INC.
• Brand Origin: Taiwan
• Full Model Designation: AF060-080-S2-P2 / ALLEN BRADLEY VPL-A0631M
• Gearbox Identification Code (Part No.): P0401100206
• Serial Number: S/N. 1909171855
• Product Classification: Precision In-line Helical Planetary Gearbox (AF Series)
• Dedicated Mating Servo Motor: Allen-Bradley Kinetix VPL Low Inertia AC Servo Motor model VPL-A0631M (63 mm frame size)
• Frame Size: 60 mm (Round output flange mounting footprint)
• Stage Configuration: 2-Stage reduction
• Nominal Gear Ratio: 1:80 (i = 80)
• Gearing Technology: Precision-ground case-hardened Helical Planetary Gears
• Backlash Rating (P2 Class): ≤ 7 – 9 arcmin (Reduced backlash for precision positioning)
• Transmission Efficiency: ≥ 94% (2-stage configuration)
• Nominal Output Torque (T2N): Approx. 45 Nm – 55 Nm
• Maximum Acceleration / Emergency Stop Torque (T2NOT): Up to 2.5 – 3 times nominal torque
• Rated Input Speed (n1N): 3,000 – 4,000 rpm
• Maximum Input Speed (n1B): Up to 6,000 – 8,000 rpm
• Maximum Radial Load Capacity (F2rB): Up to 1,530 N
• Maximum Axial Load Capacity (F2aB): Up to 1,020 N
• Output Shaft Configuration (Type S2): Smooth solid shaft with standard keyway
• Ingress Protection Rating: IP65 (Total dust-tight protection and resistance against water jets)
• Lubrication: Factory-sealed high-performance synthetic grease (Maintenance-free lifetime lubrication)
• Direction of Rotation: Output shaft rotates in the same direction as the input motor shaft
• Housing Construction: Stainless steel and treated corrosion-resistant aircraft-grade alloy
• Operating Ambient Temperature: -10°C to 90°C
• Industrial Applications: Automated feed drives, vertical/horizontal form fill seal packaging machinery, rotary label printers, indexing tables, pick-and-place robotic manipulators, and high-precision servo automation lines
