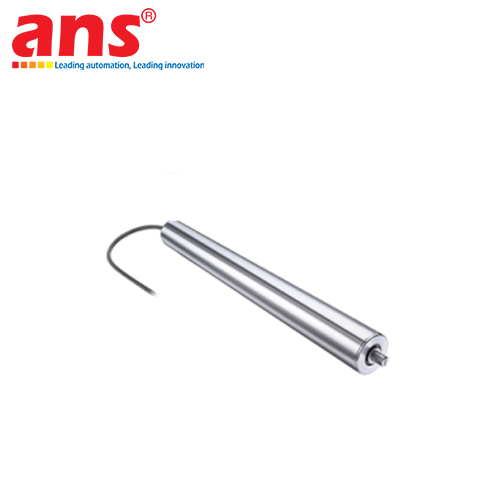

ITOH DENKI PM500FE-17-550-D-024-JD HIGH-TORQUE MOTORIZED DRIVEN ROLLER (MDR)

DEEP PRODUCT OVERVIEW & HEAVY-DUTY LOGISTICS INFRASTRUCTURE
The Itoh Denki PM500FE-17-550-D-024-JD is a premium, high-tech industrial motorized driven roller system (Power Moller / Motorized Driven Roller - MDR) tailored explicitly for heavy-duty material handling sortation networks, developed and manufactured 100% in Japan by the global market leader Itoh Denki. This advanced device represents the definitive technological solution for "All-in-one" conveyor propulsion engineering, where a high-torque brushless DC motor (designated by the "FE" prefix) and an ultra-rugged micro planetary reduction gearbox are fully enclosed inside a 50mm diameter structural steel tube barrel. This smart geometric integration completely removes legacy external drive components such as high-maintenance industrial motors, drive chains, timing belts, or exposed pulleys, yielding an unbroken, low-profile conveyor fabric that runs nearly silent while maximizing workplace safety indices. Utilizing powerful Brushless metallurgy paired with a highly responsive, safe low-voltage 24V DC input rail, this MDR functions as a critical backbone component automating Zero Pressure Accumulation (ZPA) zoning, high-load scaling stations, tire processing facilities, and complex distribution terminals supported via Itoh Denki Vietnam distribution links.

ELITE BRUSHLESS "FE" MOTOR ARCHITECTURE – REFINED HIGH-TORQUE COEFFICIENTS FOR BULK LOADS
The core mechanical asset and primary engineering advantage driving the Itoh Denki PM500FE series is its integrated FE internal power cell (High-Torque DC Brushless Motor). While traditional motorized rollers suffer from current spikes, severe speed decay, or mechanical lockup when confronted with high-inertia loads, the specialized "FE" brushless core optimizes permanent rare-earth magnet placement and stator winding densities to discharge a massive torque output:
- The device easily manages the aggressive acceleration and smooth transport of dense automotive components, high-mass fluid totes, or smaller loaded pallet platforms moving across processing floors.
- The solid-state Brushless (BLDC) topology completely bypasses the mechanical friction, wear, and arc tracking common to traditional carbon brush designs, yielding an uncompromised maintenance-free operational lifecycle spanning years of constant service. Because it eliminates carbon dust release and electrical spark propagation, the roller fully aligns with stringent cleanroom standards required inside electronic semiconductor wafer fabs and microcircuit assembly cells.

GOLD-STANDARD 50MM DIAMETER & STANDARDIZED METRIC 550MM NOTATION
The precise alphanumeric structural code embedded within the PM500FE-17-550-D-024-JD footprint maps exact field parameters, allowing site automation layout engineers to plan physical installation margins instantly:
- Golden 50.0 mm Barrel Outer Diameter (Code 500): Represents the universal global benchmark for heavy-duty industrial conveyor load distribution. The steel tube wall thickness is mathematically balanced to sustain persistent structural down-force loads, preserving shaft concentricity and negating material bowing or deflection under weight along its 55cm width (The "550" identifier marks the precise 550mm factory metric tube specification, fitting perfectly into conveyor frame clearances between 56cm and 60cm). The barrel features a standard smooth cylinder layout, ideal for rolling chassis or baseline friction belt meshes.
- Torque-Optimized 17 m/min Linear Velocity (Code 17): The roller is geared to discharge a nominal speed profile of roughly 17 meters per minute. This specific gear reduction ratio maximizes continuous breakout torque output, generating steady volumetric cargo transit. This makes the roller perfect for automatic inline dynamic checkweighers or automatic stretch-wrapping machinery where linear speed must remain highly controlled to allow downstream digital tracking loops to register weights accurately.

SAFE LOW-VOLTAGE 24V DC RAILS & SMART "JD" QUICK-DISCONNECT TERMINAL INTERFACE
- Uncompromising Operational Safety Infrastructure: Operating strictly on a low-voltage 24V DC input rail (Coded as D-024) provides absolute touch-safe protection for plant floor personnel working directly beside active conveyor staging. It eliminates lethal high-voltage shock risks during package clearing or physical alignment adjustments.
- High-Speed Plug-and-Play "JD" Interface (Code JD): Fitted with an integrated technical cable outlet terminated in a heavy-duty quick-disconnect connector block (JD Connector). This engineering setup allows the internal motor harness to "click" straight into specialized auxiliary MDR Driver Cards (such as the Itoh Denki CB-018 or HB-510 modules) without manual wire stripping or terminal screw crimping. This quick connection process seals the wiring node against moisture, prevents accidental reverse-polarity terminal faults, and accelerates field commissioning loops threefold. When paired with the driver card, the system activates automated run-on-demand logic within Zero Pressure Accumulation (ZPA) topologies—powering the roller section only when local photoelectric sensors scan approaching cargo and idling instantly when downstream blocks occur, slashing facility power grid demand metrics by up to 70%.

DYNAMIC METROLOGY & PERFORMANCE DATA
- Equipment Manufacturer: Itoh Denki (Japan)
- Full System Part Number Coded: PM500FE-17-550-D-024-JD
- Device Classification: Low-Voltage DC Motorized Driven Roller (MDR) / Power Moller
- Tube Outer Barrel Diameter: 50.0 mm (Golden industrial load-bearing benchmark)
- Effective Tube Length: 550 mm (Factory-certified metric length notation)
- External Tube Geometry Profile: Straight smooth cylinder layout (No grooves/Poly-V bands)
- Nominal Linear Belt Velocity: 17 meters per minute (Optimized gear torque multiplier)
- Embedded Drive Core Motor: High-Torque Brushless DC Motor (BLDC technology - FE Series)
- Mechanical Layout Footprint: Solid-state all-in-one hermetic tube encapsulating motor and gears.

ELECTRICAL RATINGS & INTERCONNECT PROVISIONS
- Main Input Supply Voltage Rail: 24 V DC safe low-voltage industrial current
- Power Rail Voltage Code Designation: D-024 industrial regulation rail
- Signal Interface Hardware: Specialized quick-disconnect multi-pin plug (Standard JD Connector)
- Termination Assembly Protocol: Tool-free Plug-and-Play synchronization straight into external MDR Driver Cards.
- Automated Control Compatibility: Full logic pairing supporting automated Zero Pressure Accumulation (ZPA) zones, programmable Soft Start / Soft Stop velocity curves, and real-time CW/CCW rotation switching.

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Core Tube Substrate Metallurgy: High-strength engineered carbon steel or heavy-walled galvanized structural steel
- End Shaft Terminal Mechanical Profile: High-tensile carbon steel shaft featuring internal spring-loaded retraction or threaded stud layout for swift drop-in mounting.
- Planetary Gearbox Assembly: Heavy-duty metal multi-stage planetary gear configuration packed with lifetime synthetic thermal grease lubrication.
- Maintenance Requirements Lifecycle: 100% Zero-maintenance (Maintenance-free) throughout operational lifetime.
- Cleanroom Air Safety Rating: Carbon-dust-free solid-state build certified for electronics manufacturing cleanroom isolation.

ENVIRONMENTAL SPECTRUM & DEPLOYMENT DIRECTIVES
- Permissible Operational Ambient Temperature: Calibrated for wide-area industrial factory floor thermal spans.
- Primary Industrial Deployment Profiles: High-capacity Zero Pressure Accumulation (ZPA) transport tracks (automotive components, loaded plastic totes, beverage manufacturing), dynamic weigh-scale conveyors, automated packaging machinery entry lines, and tire plant assembly beds.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
