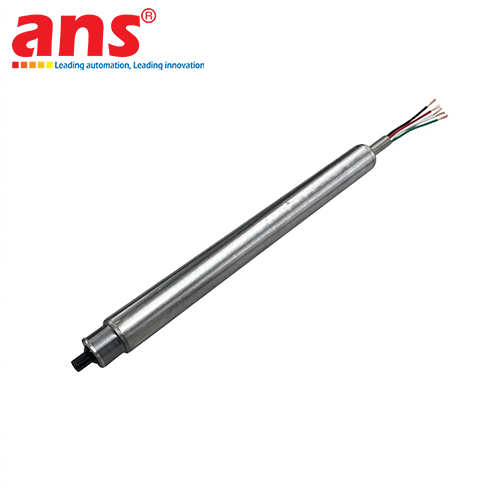

ITOH DENKI PM427LS-60-200-D-024 HIGH-SPEED ULTRA-SHORT BRUSHLESS DC MOTORIZED DRIVEN ROLLER (MDR)

DEEP PRODUCT OVERVIEW & ULTRA-COMPACT SPRINT LOGISTICS INFRASTRUCTURE
The Itoh Denki PM427LS-60-200-D-024 is a premium, high-tech industrial automated material handling component configured as a specialized internal-motor electric roller (Power Moller / Motorized Driven Roller - MDR), belonging to the high-velocity brushless DC sprint family engineered and manufactured 100% in Japan by global warehouse automation pioneer Itoh Denki. This advanced device introduces a definitive technological solution for severe space-constrained engineering layouts, hermetically sealing a high-frequency Brushless DC (BLDC) motor (designated by the "LS" sprint power core) and a high-accuracy multi-stage planetary reduction gear column straight inside a precision-machined cylindrical steel tube barrel. Implementing this turn-key "All-in-one" design methodology completely removes legacy external drive assemblies such as bulky independent motors, high-maintenance drive chains, timing belts, or exposed pulleys, yielding an unbroken, low-profile conveyor line that runs near-silent. Combining a blistering linear velocity of approximately 60 meters per minute with an ultra-narrow 200mm tube length, this MDR functions as a critical kinetic burst block inside automated e-commerce small parcel sorting tunnels, pneumatic pop-up diverters, and fast-paced automated cartoning machine frameworks managed via certified Itoh Denki Vietnam logistics links.

SOLID-STATE BRUSHLESS DC MOTOR "LS" METALLURGY & CLEANROOM MEDICAL APPLICATION
The primary technical asset securing the extreme operational longevity and cleanroom compliance of the PM427LS model resides in its internal Brushless DC (BLDC) motor core:
- By systematically eradicating the physical friction, brush wear, and electrical arc tracking characteristic of traditional brushed motors, the internal power cell maintains an incredibly quiet acoustic and visual profile. It releases zero carbon particulate contamination or electrical spark arcs, aligning perfectly with strict class-isolated cleanroom parameters required in semiconductor microcircuit tracks, cosmetics packaging lines, and pharmaceutical bottle processing grids.
- Mated to an optimized internal planetary gear cluster, the drive block unleashes its dynamic kinetic energy into a constant 60 meter-per-minute nominal line velocity (Code 60). This rapid velocity profile discharges exceptional instantaneous acceleration coefficients, satisfying intense volumetric parcel sortation parameters active within e-commerce courier terminals, where thousands of lightweight polybags and compact envelopes must be redirected swiftly with zero inertia lag.

THE MECHANICAL GEOMETRY OF A BALANCED 42.7MM DIAMETER & ULTRA-SHORT 200MM TUBE WIDTH
The geometric configuration of the PM427LS-60-200-D-024 resolves the tight multi-axis engineering placement challenges faced by facility layout designers on the floor:
- Optimized 42.7 mm Outer Tube Diameter (Code 427): This dimensions standard serves as an intelligent geometric compromise, stepping below common 50mm/57mm profiles to empower designers to narrow center-to-center pitch distance (short pitch array layouts). This smooth linear travel plane thoroughly defends compact cosmetic containers, miniature parcel boxes, and loose polybags against dropping through, tilting backward, or jamming between adjacent rollers. However, the 42.7mm line remains larger than standard 38mm formats, securing ample internal volumetric clearance to house robust high-speed gear matrices, ensuring stable concentric rotation free from tube bending deflection.
- Ultra-Short 200 mm Structural Width (Code 200): Extruded at a metric length of just 20cm (engineered for rapid frame mounting inside narrow conveyor clearances spanning 21 cm to 25 cm), the roller serves as an ideal localized kinetic driver for 90-degree pop-up right-angle transfer diverter stations. Driven by pneumatic lift cylinders, these compact 20cm rollers pop up abruptly to accelerate and fling packages onto adjacent sorting lines without expanding the machine framework footprint.

TOUCH-SAFE 24V DC POWER RAILS & FLEXIBLE INDUSTRIAL STANDARD WIRE LEADS
- Strict Compliance with Low-Voltage Workplace Safety: Operating entirely on a safe low-voltage 24V DC input rail (Code D-024) provides total protection against electric shock hazards for operators working in close proximity to active packaging conveyor lines, satisfying international industrial risk mitigation protocols.
- Flexible Industrial Standard Wire Leads: This product variant features a heavy-duty loose bare wire lead output (omitting quick-disconnect plug modifications such as JD or DR suffixes), utilizing a standard smooth zinc-plated steel barrel shell for anti-corrosion protection. This open layout grants field execution technicians supreme freedom during installation, enabling them to route connections cleanly through localized terminal blocks inside the conveyor side frame or crimp custom ferrules matching specific plant wire codes straight to auxiliary MDR Driver Cards (such as the Itoh Denki CB-016S7-UL or CB-018N2 modules). When integrated with closed-loop control logic, the roller drives high-efficiency Zero Pressure Accumulation (ZPA) sorting zones—running smoothly on demand and idling instantly when downstream blocks are detected. This run-on-demand cycle reduces overall plant grid electrical power consumption by up to 70%.

DYNAMIC PROPULSION METROLOGY & GEAR PERFORMANCE DATA
- Equipment Manufacturer: Itoh Denki (Japan)
- Full System Part Number Certified: PM427LS-60-200-D-024
- Device Structural Profile: Low-Voltage DC Motorized Driven Roller (MDR) / Power Moller
- Core Product Range: 24V DC Brushless High Speed Sprint Series
- Outer Barrel Shell Diameter (Tube Diameter): 42.7 mm (Balanced geometry optimizing short pitch configurations)
- Effective Barrel Width (Tube Length): 200 mm (Standard metric width optimized for ultra-narrow clearance frame geometries)
- External Barrel Surface Finish: Precision-ground bare carbon steel zinc-plated cylinder (Straight smooth tube layout)
- Nominal Linear Velocity Scale: ~ 60 meters per minute (High-speed sorting tier)
- Embedded Drive Core Motor: High-Efficiency Brushless DC Motor (BLDC technology - LS Series)
- Mechanical Enclosure Layout: Sealed All-in-one cylindrical barrel containing motor and planetary gear sets, removing all external chains or belts.

ELECTRICAL RATINGS & INTERCONNECT PROVISIONS
- Main Input Supply Voltage Rail: 24 V DC safe low-voltage industrial current
- Power Rail Voltage Code Designation: D-024 industrial regulation rail
- Signal Interface Hardware: Standard loose bare wire leads (Standard wire lead), optimized for custom ferrule crimping and terminal block landing.
- Automated Control Compatibility: Full logic pairing supporting automated Zero Pressure Accumulation (ZPA) zones, programmable Soft Start / Soft Stop velocity curves, real-time CW/CCW rotation switching, and remote hardware fault diagnostics.

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Tube Core Substrate Metallurgy: High-thickness engineered structural carbon steel treated with anti-oxidization industrial zinc plating compliant with Japanese manufacturing standards.
- End Shaft Terminal Mechanical Profile: High-rigidity carbon steel shaft featuring internal spring-loaded retraction for rapid push-and-snap tool-free drop-in framework mounting.
- Planetary Gearbox Configuration: High-precision planetary gear columns milled entirely from structural alloy steel, packed with non-bleeding lifetime synthetic thermal grease.
- Maintenance Requirements Lifecycle: 100% Zero-maintenance (Maintenance-free) throughout operational service life.

ENVIRONMENTAL RATINGS & FIELD COMMISSIONING MANDATES
- Continuous Operating Duty Classification: IEC S1 continuous duty profile (Engineered for uninterrupted round-the-clock 24/7 service under nominal load parameters)
- Cleanroom Air Safety Rating: Carbon-dust-free solid-state build certified for electronics manufacturing cleanroom isolation, running silently with minimal noise generation.
- Primary Industrial Deployment Profiles: High-velocity distribution sortation arrays for Logistics / E-commerce small parcels, energy-saving Zero Pressure Accumulation (ZPA) staging belts, cleanroom medical and cosmetics small-bottle transport grids, automated cartoning machine internal assemblies, and pop-up 90-degree right-angle transfer systems.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
