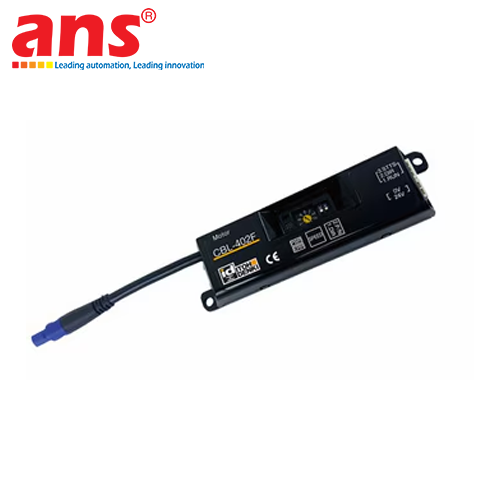

ITOH DENKI CBL-402F2 MULTI-LOGIC ULTRA-COMPACT MOTORIZED DRIVEN ROLLER (MDR) DRIVER CARD

DEEP PRODUCT OVERVIEW & SLIM-FRAME HEAVY AUTOMATION INFRASTRUCTURE
The Itoh Denki CBL-402F2 is a premium, high-tech industrial centralized digital controller board (MDR Driver Card / Control Board) characterized by its specialized ultra-compact structural form factor, developed and manufactured 100% in Japan by the global material handling automation pioneer Itoh Denki. Standing as the definitive optimized engineering upgrade from the classic CBL-402F series, this advanced hardware functions as the centralized local "brain" meticulously programmed to pair flawlessly with high-velocity, low-voltage Brushless DC (BLDC) motorized tubes featuring slim profiles—specifically the high-speed sprint PM380LS series (38mm diameter) and the balanced travel PM427LS series (42.7mm diameter). Within modern automated material handling system fabrics, the CBL-402F2 commands the absolute responsibility of processing incoming process inputs, executing localized closed-loop control scripts, and discharging dynamic output current to govern smooth roller acceleration, deceleration, and braking cycles. Housing a selectable NPN/PNP logic protocol chip alongside an onboard manual rotary velocity dial, this component serves as an irreplaceable modular block to deploy express parcel sortation networks and cleanroom pharmaceutical packaging tracks enforcing thin-chassis beam constraints supported via certified Itoh Denki Vietnam logistics distributions.

ULTRA-COMPACT SHAPE FOR SLIM SIDE-FRAME BEAMS & FLEXIBLE MULTI-LOGIC SELECTABILITY
- Mechanical Ultra-Compact Engineering Geometry (Ultra-compact Design): The primary physical asset of the CBL-402F2 model is its drastically compressed width scale, precision-milled down to millimetric limits. This slim mechanical profile enables automation field technicians to install and bury the control board completely flush inside the internal cavity of aluminum conveyor side rails (side frames) tracking tight vertical clearances down to a miniscule 60mm. This spatial integration entirely eradicates the requirement for bulky external sub-panels or sub-enclosures projecting awkwardly outward from the machine frame, securing a beautifully streamlined, low-profile conveyor blueprint that reclaims facility floor space and simplifies packing machine clustering.
- Selectable Dual-Track Logic Signaling Topology (NPN/PNP Selectable): Shifting far away from baseline legacy driver cards that are hardwired to support only a frozen single logic signaling standard (such as the CB-018N2 module which natively tracks sinking logic only), the CBL-402F2 embeds an advanced automated polarity-reversal logic bridge. By simply adjusting a physical onboard DIP switch setting on the board substrate, field operators can seamlessly toggle between negative sinking control logic (NPN - 0V reference) and positive sourcing control logic (PNP - +24V reference). This high versatility ensures the card interfaces flawlessly with both Asian-market standardized PLC industrial racks (e.g., Mitsubishi, Omron) and European/Western automation architectures (e.g., Siemens, Schneider, Allen-Bradley), drastically reducing system control wiring diagram overheads.

10-STEP ROTARY SPEED TUNING & INTELLIGENT COMPONENT-LEVEL LED FAULT DIAGNOSTICS
- Field-Ready Mechanical Speed Profiling (Rotary Switch Control): Bypassing the requirement for external laptops, complex software configuration licensing, or manual firmware code uploading loops for baseline speed commissioning, the CBL-402F2 incorporates a physical onboard indexed Rotary Switch dial marked from 0 to 9. Maintenance crews can easily toggle this mechanical switch using a small screwdriver to instantly select 1 of 10 pre-loaded linear velocity steps configured at the factory for the paired MDR tube. This manual interaction allows rapid line balancing adjustments directly on the active processing floor.
- Intelligent Error-Coded Status Feedback (LED Diagnostics): The faceplate features a synchronized dual LED operational tracking array: a Green power indicator LED (PWR) paired with a Red system fault alert LED (ERR). The moment an operational anomaly compromises active line performance, the integrated microprocessor forces the Red LED to flash in distinct rhythmic frequency pulse patterns (flash codes) to explicitly diagnose system errors: mechanical tube lock conditions (lock error), system board overheating (thermal error), low-voltage power rail dropouts (low voltage), or broken motor cable phases. This precise diagnostics system empowers technicians to pinpoint the exact root failure cause rapidly, driving down unscheduled downtime intervals to absolute minimum metrics.

ANTI-REVERSE D-SHAPE PLUG HARDWARE SAFETY BLOCKS & TIRED SYSTEM PROTECTION CIRCUITS
- Fail-Safe Mechanical D-Shape Interconnect: The integrated motor receptacle port conforms to a standardized 6-pin D-shaped connector geometry, matching Itoh Denki motorized tubes finished with -DR quick-connect harness suffixes. This physical alignment features an anti-reverse orientation keyway lock, completely rendering reverse-polarity phase wiring faults impossible, thereby safeguarding internal processing chipsets from terminal voltage shorts and shielding motor copper stators from winding failures during fast hot-swaps.
- Multi-Tier Autonomous Protection Overrides: The hardware chassis embeds an industrial-grade 5A overcurrent short-circuit fuse paired with a dual-zone technical hardware thermal sensor array (Thermal Overload Protection). The logic circuit executes instantaneous output power rail isolation whenever the onboard controller temperature breaks past 95°C or the internal motor coil thermal threshold breaches 110°C, extending product lifecycle metrics across severe manufacturing shifts. When synchronized alongside localized photoelectric line sensors, the driver board operates seamlessly on a dynamic run-on-demand cycle inside high-efficiency Zero Pressure Accumulation (ZPA) topologies—idling the localized conveyor segment immediately when downstream package pile-ups occur to eliminate cargo crushing defects while cutting overarching facility power grid electrical consumption metrics by up to 70%.

ELECTRICAL DATA & SIGNALING PROTOCOLS
- Equipment Manufacturer: Itoh Denki (Japan)
- Full System Part Number Certified: CBL-402F2 (Advanced optimized upgrade from the legacy CBL-402F Series)
- Device Classification: Intelligent Driver Card for low-voltage DC Motorized Driven Rollers (MDR)
- Main Operating Supply Input Voltage: 24 V DC (Operational voltage input window rated at ±10% for grid stability)
- Logical Control Signal Interface Protocol: Highly versatile onboard architecture supporting rapid manual toggle between NPN (Sinking Logic) and PNP (Sourcing Logic) standards via integrated DIP Switch adjustments.
- Primary Motion Command Variables: Run/Stop activation, Clockwise/Counter-Clockwise directional axis tracking (DIR / CW-CCW), Multi-step linear velocity calibration, and automated solid-state Dynamic Braking.

VELOCITY CONDITIONING & HARDWARE DIAGNOSTICS
- Speed Tuning Interface Configuration: Onboard mechanical 10-step indexed Rotary Switch module (Coded 0 through 9 selector steps) enabling tool-adjusted linear velocity matching.
- Real-Time Diagnostic Feedback Array: Dual-track synchronized LED indicator matrix:
  + Green LED Status (PWR): Illumination confirms active safe input power delivery.
  + Red LED Status (ERR): Flashes specific rhythmic diagnostic codes identifying exact fault events (Mechanical lock, thermal trip, low voltage, line disconnect).

MECHANICAL PROPERTIES & HARDWARE COMPATIBILITY
- Structural Form Profile: Slim-line structural footprint (Ultra-compact Design), engineered specifically to mount entirely flush inside aluminum side-rail conveyor frameworks tracking minimal vertical profiles down to 60mm.
- Mechanical Interconnect Porting: Standardized Plug-and-Play 6-pin D-shaped quick-disconnect receptacle featuring mechanical anti-reverse keyway matching.
- Paired Motorized Tube Compatibility: Optimized explicitly to drive Itoh Denki 24V DC Brushless Motorized Driven Rollers showing compact outer tube diameters (Drop-in fit matching high-speed PM380LS and balanced-stroke PM427LS tube lines).

PROTECTIVE CIRCUITS & QUALITY COMPLIANCE STAMPS
- Multi-Tier Embedded Protective Loops:
  + Integrated short-circuit overcurrent protection fuse rated at 5A load limits.
  + Dual-zone Thermal Overload Protection safety override (Triggers immediate power rail cutoff when driver card temperature breaches > 95°C or internal motor core wind surpasses > 110°C).
- Master System Deployment Profiles: Thin-profile automated Zero Pressure Accumulation (ZPA) sorting zones, high-throughput parcel selection tracks in logistics/e-commerce hubs, cleanroom electronics and pharmaceutical container transit pathways, and high-frequency pneumatic pop-up 90-degree right-angle transfer loops.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
