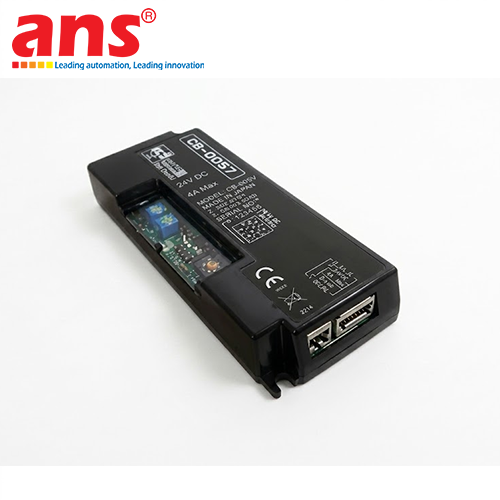

ITOH DENKI CB-016S7-UL UL-CERTIFIED MOTORIZED DRIVEN ROLLER (MDR) DRIVER CARD

DEEP PRODUCT OVERVIEW & WAREHOUSE AUTOMATION INFRASTRUCTURE
The Itoh Denki CB-016S7-UL is a high-performance centralized digital controller board (MDR Driver Card / Control Board) engineered explicitly to supply power, regulate, and command motorized driven rollers (MDR / Power Moller - 24V DC), developed and manufactured 100% in Japan by the global material handling automation leader Itoh Denki. While low-voltage 24V DC motorized rollers (such as the high-velocity sprint PM380LS series or the maximum breakout torque PM486FE series) fulfill the physical "muscle" requirements of parcel transit, the CB-016S7-UL functions as the absolute internal centralized "brain". The hardware holds the automation responsibility of reading incoming logic signals from master central PLC racks or localized photoelectric line sensors, running high-resolution processing scripts, and discharging proportional power current to coordinate swift roller motion. Hardwired with elite Underwriters Laboratories listings, this driver card serves as an irreplaceable component inside export-bound automated conveyor arrays destined for North American plants, express sortation loops, and smart energy-saving Zero Pressure Accumulation (ZPA) topologies deployed via Itoh Denki Vietnam distribution links.

UL RECOGNIZED SAFETY STAMP – THE DEFINITIVE ASSURANCE FOR SYSTEM EXPORT PACKAGES
The primary competitive asset and core commercial advantage distinguishing the CB-016S7-UL model is its native compliance with the strict "UL" suffix parameters (UL Recognized—certified under Underwriters Laboratories safety criteria in the United States).
- Securing this verification mandates rigorous laboratory vetting evaluating dynamic electromagnetic compatibility (EMC profiles), localized component isolation thresholds, flame-retardant structural polymer substrates, and heat generation tolerances under continuous heavy industrial strain.
- For automation panel builders, system integrators, and conveyor OEM firms in Vietnam, the CB-016S7-UL acts as a non-negotiable compliance passport required to land contracts with foreign-direct-investment (FDI) industrial groups, or to deploy turn-key process assembly lines bound for strict regulatory landscapes across the USA, Canada, and Europe.

DUAL-SERIES MOTOR DRIVING SYSTEM & HIGH-FLEXIBILITY TWIN VELOCITY TUNING METROLOGY
- Synchronized Dual-Classification Motor Driving Core: The microprocessing chip embedded on the CB-016S7-UL board is programmed with a versatile power-stage algorithm, enabling it to seamlessly drive both primary families of Itoh Denki 24V Brushless DC (BLDC) motorized tubes: the high-speed standard torque series (LS/KT lines) for light parcel courier sortation, and the heavy-duty high-torque series (FE lines) for displacing massive cargo totes.
- Advanced Twin Velocity Tuning Architecture: The control card delivers two distinct methods for field commissioning adjustments. Locally on the machine sườn, maintenance technicians can manually configure individual roller speeds by setting specific patterns on the integrated onboard bank of DIP switches. For advanced centralized automation loops, the card unlocks an external 0-10 VDC Analog Input channel. This line reads voltage curves dispatched straight from the master PLC, tracking linear, step-less velocity adjustments in real-time to match fluctuating processing plant line speeds instantly.

TACTILE DYNAMIC BRAKING CYCLES & ACTIVE HARDWARE SHIELDING MATRICES
- Advanced Solid-State Dynamic Braking: Moving far away from mechanical friction brake shoes that degrade, lose adjustment, and release friction heat over shifts, the CB-016S7-UL implements a digital dynamic braking routine. By briefly reversing the localized stator magnetic field poles inside the active MDR cylinder, the board forces a tube spinning at a blistering 60 meters per minute to drop down to a dead stop instantaneously and smoothly. This yields millimetric positioning control, locking packages exactly on the target index.
- Multi-Tier Autonomous Protection Blocks: The card houses an active self-recovering electronic circuit fuse for short-circuit insulation paired with an embedded thermal overload sensor block (Thermal Protection). If a physical package jam traps an active roller barrel on the line—causing line current parameters to spike dangerously—the driver instantly isolates output power rails to save internal motor copper coils from burning out. Concurrently, it pulls its integrated diagnostic Error Output node to a low state, signaling the master factory PLC to activate light towers or execute immediate localized interlock shuts to secure facility safety.

FIELD DEPLOYMENT DIRECTIVES WITHIN ZERO PRESSURE ACCUMULATION (ZPA) CONVEYOR FABRICS
Mechanically structured for compact layout demands, the Itoh Denki CB-016S7-UL mounts flush straight onto the aluminum side frame of the conveyor beam, minimizing interconnecting wire lengths. The onboard interface circuitry is highly versatile, supporting direct wiring configurations for either NPN (Sinking) or PNP (Sourcing) logic networks depending on how the control jumper paths are landed. This makes the controller board the ideal modular block to establish high-efficiency Zero Pressure Accumulation (ZPA) staging paths. Wired directly alongside line photo sensors, the board monitors product zones: the instant a downstream block is registered, it commands its localized roller section to idle, preventing heavy product boxes from continuously ramming and crushing fragile packages ahead. Operating on this run-on-demand cycle reduces overall plant grid electrical power consumption by up to 70%.

ELECTRICAL DATA & SIGNALING PROTOCOLS
- Equipment Manufacturer: Itoh Denki (Japan)
- Full System Part Number Coded: CB-016S7-UL
- Equipment Classification: Intelligent Driver Card for Brushless DC Motorized Driven Rollers (MDR)
- Main Operating Supply Input: 24 V DC (Operational input voltage window rated at ±10%)
- Logical I/O Signal Interface: Fully adaptable to accommodate both PNP (Sourcing) and NPN (Sinking) automation loops via custom terminal wiring configuration.
- Primary Motion Commands: Run/Stop activation, Clockwise/Counter-Clockwise (CW/CCW) rotation tracking, Variable velocity adjustment, and solid-state Dynamic Braking profiling.

VELOCITY CONDITIONING & HARDWARE SAFETY MATRICES
- Speed Tuning Interface Configuration:
  + Local Field Adjustment: Integrated physical bank of on-board manual DIP Switches.
  + Remote Automation Control: Responsive 0 to 10 V DC Analog Input loop routed from centralized PLC racks.
- Multi-Tier Embedded Protective Loops:
  + Electronic self-recovering circuit fuse handling dynamic short-circuit overcurrent protection.
  + Localized motor thermal tracking circuit (Thermal Overload Protection loop).
- Diagnostic System Feedback: Dedicated fault diagnostic channel discharging an Error Output Signal to centralized DCS racks upon active roller stall detection.

MECHANICAL PROPERTIES & COMPONENT COMPATIBILITY
- Base Circuitry Substrate: High-thickness engineered fiberglass printed circuit board treated with an industrial moisture-resistant and anti-dust insulating top skin.
- Interconnect Hardware Interface: Heavy-duty quick-disconnect multi-terminal blocks (Connectors Array) executing rapid Plug-and-Play field terminations.
- Compatible Motorized Driven Rollers Array: Optimized to command Itoh Denki 24V DC Brushless Motorized Driven Rollers featuring outer barrel diameters spanning 38mm to 60mm (Perfect fit drop-in controller for PM380LS, PM427LS, PM486FE, PM570FE, PM605FE, etc.).

ENVIRONMENTAL SPECTRUM & INTERNATIONAL STANDARD ALIGNMENT
- Ingress Protective Shell Protection: Industrial open-board configuration engineered for protective side-channel rail shielding.
- Quality Systems & Safety Certifications: Full UL Recognized industrial electrical safety listing (Underwriters Laboratories—USA), CE marked for European export compliance, and RoHS eco-directive certified.
- Master System Deployment Profiles: Localized processing zones inside high-efficiency Zero Pressure Accumulation (ZPA) conveyor setups, high-velocity distribution sortation tracks in logistics hubs, and cleanroom electronics manufacturing networks demanding North American UL compliance parameters.
