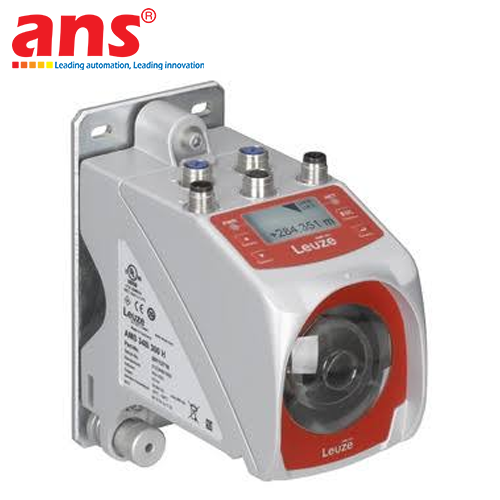

The Leuze AMS 348i 200 Optical Distance Sensor (Part No: 50113711) belongs to the world-renowned AMS 300i generation developed by Leuze electronic (Germany). Engineered specifically for demanding high-bay warehouse operations and industrial material handling, this high-precision optical distance sensor provides dependable non-contact positioning and collision avoidance over long distances with millimeter precision.

Operating on advanced Time-of-Flight optical principles combined with high-frequency modulated red laser light at 655 nm (Laser Class 2, compliant with IEC/EN 60825-1:2014), the AMS 348i 200 measures distances ranging smoothly from 200 mm up to 200,000 mm (0.2 m to 200 m). The sensor delivers an absolute measurement accuracy of ±3 mm and a reproducibility (3 sigma) of 2.1 mm. With an ultra-fast measurement output cycle of just 1.7 ms and a processing calculation time of 8 ms, the unit maintains high-accuracy position updates even when targets traverse at extreme mechanical travel speeds of up to 10 m/s.

From a hardware and reliability perspective, the AMS 348i 200 is built with a rugged diecast zinc/aluminum housing and scratch-resistant optical glass window, rated to IP65 environmental ingress protection. It features an impressive Mean Time to Failure (MTTF) of 31 years, ensuring dependable 24/7 industrial service. The sensor integrates a high-contrast multi-line LC display, four status LEDs, and an ergonomic membrane keypad, allowing commissioning technicians to verify signal reception quality, diagnose bus status, and fine-tune operational parameters directly on-site without requiring external programming laptops.

The primary system-integration feature of the AMS 348i 200 is its integrated PROFINET RT interface (Conformance Class B, 100 Mbit/s) with embedded dual-port Ethernet switch functionality (BUS IN / BUS OUT on standard M12 D-coded connectors). This allows seamless daisy-chain or ring network topologies without requiring external industrial switches, significantly lowering wiring expenses and system complexity. Position and velocity parameters are streamed cyclically in real-time to central PLC systems, making it the premier choice for gantry cranes, overhead hoists, automated AS/RS stacker systems, and high-speed automotive skillet transfer conveyors.

• Manufacturer: Leuze (Leuze electronic GmbH + Co. KG)
• Country of Origin: Germany (100% Germany Origin)
• Product Series: AMS 300i Series
• Model: AMS 348i 200
• Order Code (Part No): 50113711
• Operating Principle: Non-contact optical laser distance measurement
• Light Source: Red laser diode, 655 nm wavelength
• Laser Safety Class: Class 2 according to IEC/EN 60825-1:2014
• Laser Spot Dimension: Diameter 150 mm at 200,000 mm distance
• Measurement Range: 200 mm to 200,000 mm (0.2 m to 200 m)
• Resolution: Configurable from 0.001 mm to 10 mm
• Absolute Measurement Accuracy: ±3 mm
• Reproducibility (3 Sigma): 2.1 mm
• Measurement Value Output Rate: 1.7 ms
• Measurement Calculation Time: 8 ms
• Maximum Object Traverse Rate: Up to 10 m/s
• Temperature Drift: 0.01 to 0.1 mm/K
• Industrial Network Interface: PROFINET (PROFINET RT protocol, Conformance Class B, 100 Mbit/s transmission speed with integrated switch functionality)
• Electrical Connectors: 4x Industrial M12 metal connectors:
  - Connection 1 (BUS IN): Connector M12, Female, 4-pin, D-coded
  - Connection 2 (BUS OUT): Connector M12, Female, 4-pin, D-coded
  - Connection 3 (PWR / SW IN / OUT): Voltage supply & I/O, Connector M12, Male, 5-pin, A-coded
  - Connection 4 (SERVICE): Diagnostics interface, Connector M12, Female, 5-pin, A-coded
• Supply Voltage: 18 ... 30 V DC
• Enclosure Material: Heavy-duty diecast zinc/aluminum housing, tempered glass optical window
• Physical Dimensions (W x H x L): 84 mm x 166.5 mm x 159 mm
• Net Weight: 2,450 g
• Display & Controls: Multi-line LC display, 4 status LEDs, integrated membrane keyboard
• Ingress Protection Rating: IP65 (Dust-tight and water-jet proof), Safety Protection Class III
• Operating Temperature: -5°C ... +50°C (Storage: -30°C ... +70°C)
• Reliability (MTTF): 31 years
• Certifications: c UL US, CE compliant
• Target Applications & Industries:
  - Cranes & Heavy Material Handling: Anti-collision and coordinate tracking for STS/RTG harbor cranes, gantry cranes, and overhead bridge hoists.
  - Automated Intralogistics & AS/RS: Precise horizontal and vertical carriage positioning of stacker cranes in high-bay automated warehouses.
  - Automotive Assembly Plants: Absolute position tracking of skillet conveyors and side-tracking skates across body-in-white transfer lines.
  - Surface Treatment: Positioning of overhead carrier trolleys in automated electroplating and chemical dipping plants.
