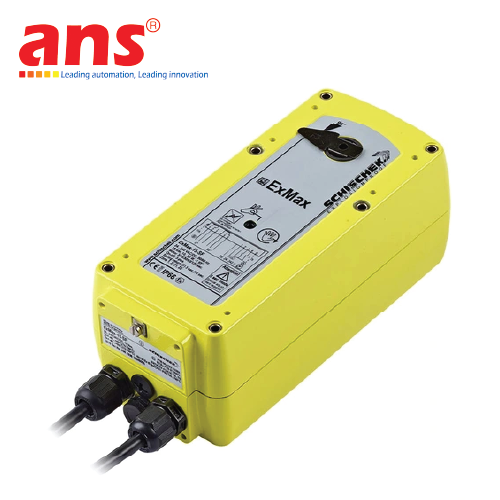

Ex-d quarter-turn actuator EXMAX-15-SF Rotork Vietnam

Schischek ExMax explosionproof quarter-turn actuators for use in Zone 1, 2, 21, 22. Gas + Dust certified. Compact and robust, with enclosure material, offshore/marine coating and failsafe options. For automation of air dampers, fire and smoke dampers, volume control, ball valves, throttle valves and other quarter-turn armatures.

Features

•  Part-turn output drive
•  On/off duty as standard
•  24 - 240 VAC/VDC universal power supply
•  Standard ISO flanges available
•  Explosionproof to international standards in Zone 1, 2, 21, 22
•  Spring-return fail-safe option
•  Ingress protection IP66/67
•  Robust aluminium housing
•  UL and CSA certified variants available
•  Small dimension, compact, easy installation, highest protection classes, cost-effective
•  Up to 5 different running times adjustable on-site
•  95° angle of rotation (5° pretension)
•  100% overload protected
•  Emergency manual override
•  Auto setup and selectable speeds
•  Mechanical position indication
•  Optional stainless steel enclosure
•  Optional offshore/marine coating
