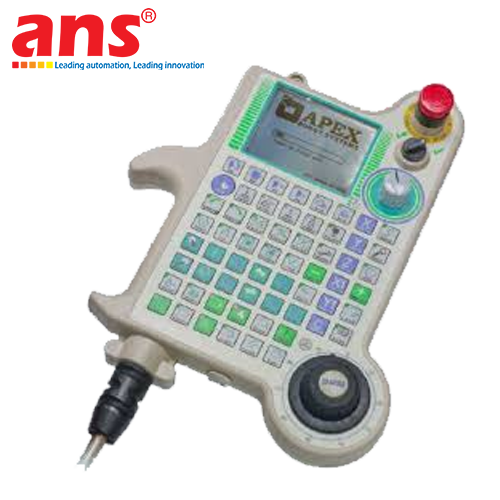

The APEX DYNAMICS FM10000C-025 (Board Designation: MTC-KEY V1.0) is a genuine replacement operator membrane keypad manufactured by APEX DYNAMICS, INC. (Taiwan) – an internationally renowned manufacturer of precision planetary gearboxes and robotic take-out automation systems for injection molding machinery.

This product is engineered as an industrial-grade membrane switch sheet mounted directly on the front panel of the handheld teach pendant (MTC series controller). It provides crisp tactile feedback and features dedicated functional buttons for axis motion (X, Y, Z coordinates), operating mode selection (Auto, Manual, Step), system navigation, and teaching program parameters. The front overlay is constructed from high-grade technical polymer film offering robust resistance against surface scratching, industrial oils, dust contamination, and typical workshop chemical vapors, ensuring restored responsiveness and reliable long-term usability for robotic teaching operations.

• Manufacturer: APEX DYNAMICS, INC.
• Brand Origin: Taiwan
• Official Part Code: FM10000C-025
• PCB Designation / Hardware Version: MTC-KEY V1.0
• Component Type: Handheld Teach Pendant Membrane Keypad (Membrane Switch Panel)
• Compatible Equipment: Handheld Teach Pendant / Controller units of APEX DYNAMICS Cartesian Take-out Robot Systems (SB, ST, SW series for injection molding machines)
• Signal Interface: Multi-pin flat flexible cable (FPC/Ribbon cable) connecting directly to the internal handset mainboard
• Switch Technology: Metal dome membrane switches providing crisp tactile snap response
• Key Arrangement: Full functional cluster including axis jog keys, parameter numeric/setting buttons, program teaching keys, Enter/Esc keys, and system navigation controls
• Operating Actuation Force: 2.5 N to 4.0 N per key
• Mechanical Switch Lifetime: ≥ 1,000,000 actuations per individual button
• Rated Operating Voltage: DC 5V – 24V (Microcontroller logic levels)
• Operating Current: < 100 mA
• Closed Contact Resistance: < 100 Ω
• Insulation Resistance: ≥ 100 MΩ at DC 100V
• Ingress Protection Rating: IP65 equivalent front surface (Protected against dust ingress and splashed water/oil)
• Overlay Surface Material: Wear-resistant industrial PET / Polycarbonate film with anti-glare finish
• Backing Adhesive: High-strength industrial 3M adhesive layer for secure mounting to pendant casing
• Operating Temperature Range: -10°C to 60°C
• Operating Humidity Range: 10% to 90% RH (Non-condensing)
• Typical Application: Direct replacement for worn, cracked, unresponsive, or damaged keypads on APEX DYNAMICS robot handheld teach pendants
