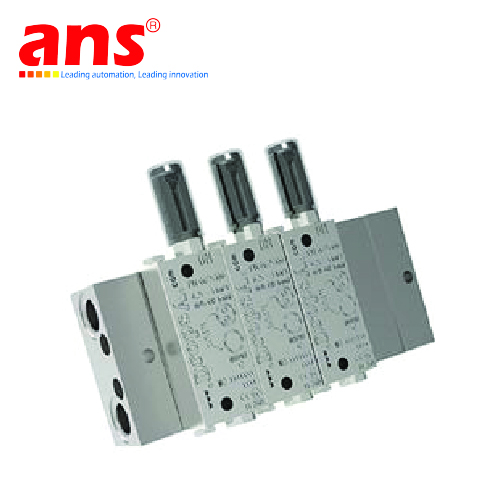

Valve 0675300 Dropsa Vietnam

Key features:

•  Temperature range–30°C to + 80°C (-22°F +176°F)
•  Frequency:100 cycles/min.
•  Max pressure inlet: 400 bar (5800 psi)
•  Air pressure: 1.5÷3 bar
•  Oil min. viscosity: 15 cSt
•  Oil max. viscosity: 460 cSt


Modular metering valves for dual-line Air-Oil system consist of two main parts: Base and metering valve.
Base and metering valves are made of zinc-plated steel and are available with inlets and outlets in UNI-ISO 7/1 (BSP).
The valves can be supplied with adjustable or fixed discharge.
A blanking plate (part-No. 675305 to be ordered separately) can be provided on the base, instead of the metering valve, to accommodate future additional points.


Modular metering valves for dual-line air-oil lubrication offer following benefits:

•        Versatile in layout planning.
•        Flexibility to expand or reduce the number of elements to meet changing requirements.
•        Blanking plate can be provided to accommodate future requirements.
•        Cost reduction on labour and piping: the metering valves can be serviced without disturbing the assembly or existing pipe work.
•        Lower maintenance costs: the modular concept provides lower cost replacement components.
•        Reduced spare parts costs due to the interchange ability of the metering valves and their bases.
