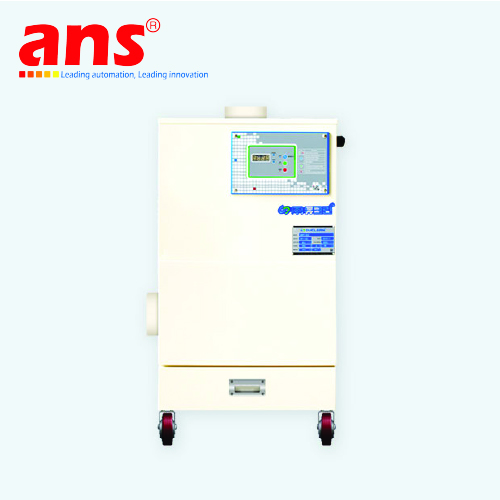

Vacuum Dust Collector MSR-429/HS Duclean Vietnam



TThe MSR Series from Duclean offers a reliable, eco-friendly solution for industrial dust and chip extraction. Designed with bag‑filter modules, these high‑wind pressure units suit environments demanding continuous dust collection—from PCB manufacturing to metalworking and laser cutting.

Technical Highlights (Available Models: MSR‑229 to MSR‑639)

  • *Power Supply: 220 V/380 V 3-phase industrial operation

  • *Airflow: Ranges from 1.7 to 6.2 CMM depending on model

  • *Static Pressure: Up to 3200 mmAq for powerful suction

  • *Motor Output: 0.5 kW to 4.6 kW

  • *Compact Build: Narrow footprint for tight installation spaces



Recommended Applications

  • Dust and chip extraction in PCB production, metal cutting, laser engraving, sandblasting, plastic injection, and other automated workflows

  • Processes generating fine, conductive, or abrasive particulate (e.g. fiberglass, steel dust)

  • Facilities requiring reliable, low-maintenance vacuum systems integrated into automated lines

TYPE Power Air volume(CMM) Static pressure(mmAq) Output(Kw) Size(mm) Weight(kg)
A1Width B1Length D1 Inlet(Ø) D2 outlet(Ø) H overall height
MSR-229 220V 1p, 220V/380V 3p_60Hz, 440V(Option), 50Hz(Option) 1.7 1700 0.5 450 525 40 100 645 65
MSR-329 2.9 1400 0.85 450 545 40 100 895 70
MSR-339 2.9 2300 1.5 450 545 45 100 895 70
MSR-429 4.2 2200 1.9 450 545 45 100 935 80
MSR-529 220V/380V 3p 60Hz, 440V(Option), 50Hz(Option) 6.2 2200 2.6 520 545 65 100 975 100
MSR-629 6.2 2800 3.7 520 545 65 100 975 100
MSR-639 6.2 3200 4.6 520 545 65 100 975 100
