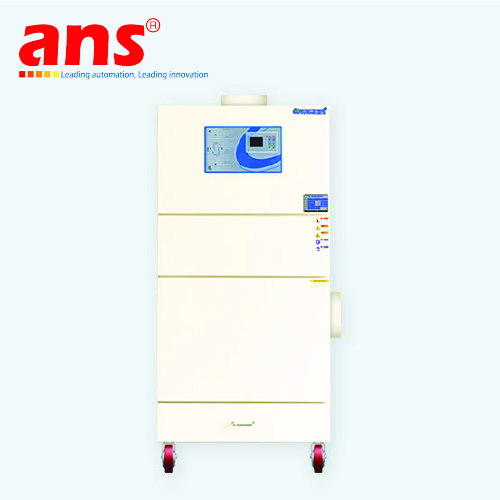

Cartridge Type Dust Collector AP-200N Duclean Vietnam
Price: Contact
Brand: Duclean
Category: cleaning products & systerm
Supplier: ansvietnam
Origin: Korea
Cartridge Type Dust Collector AP-200N Duclean Vietnam
The AP Series by Duclean is a compact, high-performance dust collector designed for various industrial processes. Utilizing a cartridge filter system, this series delivers powerful dust collection with automatic cleaning, quiet operation, and minimal maintenance—making it ideal for use in PCB production, metal machining, powder handling, and cleanroom environments.
⚙️ Key Technical Features
-
Cartridge Filter Design: Wide surface area with easy installation/removal via integrated cell plate
-
Filter Materials: PET, membrane, Nomex, PTFE, with options for anti-static, water-repellent, and flame-resistant coatings
-
Auto Cleaning System: Pulse-jet compressed air cleaning triggered by differential pressure; supports manual and automatic cleaning modes
-
Powerful Turbo Blower: High-pressure fan with low vibration and reduced noise for stable suction
-
Smart Digital Control Panel: LCD touchscreen with real-time monitoring, differential pressure display, ammeter, error alarms, and RS‑485 remote control connectivity
TYPE | Power | Air volume(CMM) | static pressure(mmAq) | output(kW) | size | Weight(kg) | ||||
---|---|---|---|---|---|---|---|---|---|---|
A1width | B1length | D1 inlet (Ø) | D2 outlet (Ø) | H total Height | ||||||
AP-100 | 220V single phase, 220V/380V three phase 60Hz, 440V(Option), 50Hz(Option) | 12 | 230 | 0.75 | 520 | 545 | Ø150 | Ø200 | 1535 | 135 |
AP-200 | 25 | 230 | 1.5 | 620 | 645 | Ø200 | Ø200 | 1680 | 190 | |
AP-300 | 220V/380V three phases 60Hz, 440V(Option), 50Hz(Option) | 40 | 230 | 2.2 | 770 | 795 | Ø250 | Ø300 | 1800 | 310 |
AP-500 | 65 | 240 | 3.7 | 850 | 795 | Ø250 | Ø300 | 1875 | 350 | |
AP-750 | 80 | 250 | 5.5 | 910 | 855 | Ø300 | Ø350 | 2315 | 550 | |
AP-1000 | 100 | 250 | 7.5 | 1370 | 875 | Ø350 | Ø400 | 2285 | 650 | |
AP-1500 | 160 | 250 | 5.5 x 2SET | 1750 | 925 | Ø400 | Ø450 | 2305 | 800 | |
AP-2000 | 200 | 250 | 7.5 x 2SET | 1950 | 1025 | Ø500 | Ø550 | 2305 | 1080 | |
AP-3000 | 300 | 250 | 11 x 2SET | 1980 | 1275 | Ø600 | Ø650 | 2485 | 1150 |
