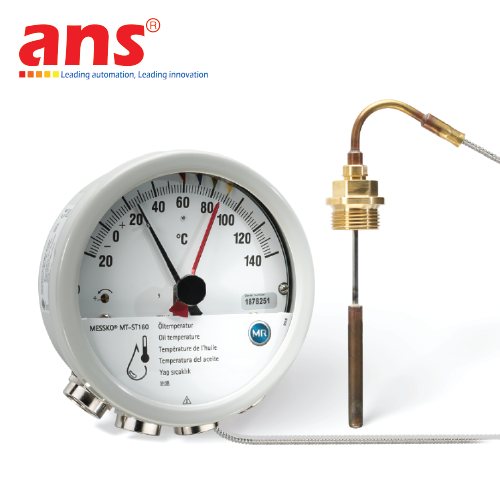

Thermometer MT-ST160 635-PC1BA2AE06S4SB1100AA MESSKO Vietnam
Price: Contact
Brand: Messko
Category: 4.0 Industry
Supplier: ansvietnam
Origin: EU
0911472255Thermometer MT-ST160 635-PC1BA2AE06S4SB1100AA MESSKO Vietnam
Suitable for oil and winding temperature gauges
The MESSKO® Universal Retrofit Kit is used to replace
malfunctioning temperature gauges on transformers, reactors or similar devices. It is not relevant whether you are dealing with oil or winding temperature gauges. The Retrofit Kit consists of a gauge with a mechanical pointer that clearly shows the temperature. Depending on the connection the same gauge can be used for either oil temperature indication or for winding tempe-rature indication. A resettable maximum temperature indicator is standard.
The MESSKO® Universal Retrofit Kit consists of:
- A temperature probe connected to the measuring gauge by a liquid filled capillary tube
- A set of probe sleeves to remove the air gap in larger thermo wells
- An adjustable length probe to fit various thermo well depths
- Larger mounting plate with various mounting options
- Two terminal covers to indicate oil or winding temperature (user selectable)
Your advantages at a glance
- Optional output 4...20mA analog
- Easy temperature gauge replacement with a universal mounting bracket
- Thermo well sleeves ensure the probe fits exactly into your well
- Two different terminal covers allow you to simply indicate if the gauge is for oil or winding temperature
- Extremely durable and reliable without re-adjustment or recalibration
- Easy integration into ETOS®- Embedded Transformer Operating System
