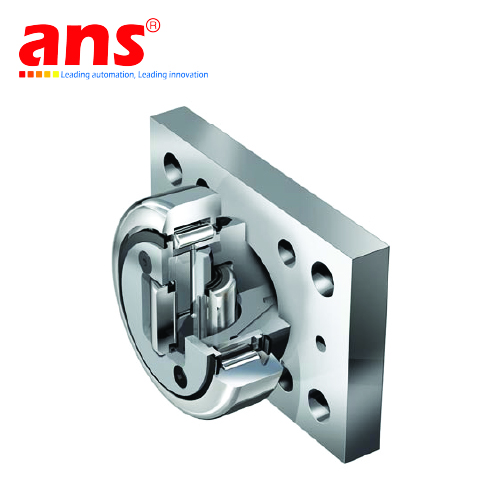

Temperature Bearing 4.055 HT + AP 1 200.002.021 Winkel Vietnam
Price: Contact
Brand: Winkel Vietnam
Category: 4.0 Industry
Supplier: ansvietnam
Origin: USA
Gọi lại cho tôi
0911472255Temperature Bearing 4.055 HT + AP 1 200.002.021 Winkel Vietnam
Advantage of the WINKEL Bearing system:
- Reduces your designing and production costs
- Can take up high radial and axial loads
- Strong profiles for high stat. and dynamic loads
- Best dispersion of forces in the profiles
- Longer lifetime for bearings and profiles
- Economical assembling by welding bolt
- Bearing components are easily exchangeable
Technical details:
- Outer rings are made from case-hardened steel 20 CrMnTi hardened at 58-62HRC
- Inner rings are made from bearing steel 100 Cr 6 hardened at 58-62 HRC
- Cylindrical rollers have flat ground heads, made of 100 Cr 6 steel hardened at 60 – 65 HRC
- Welding bolts are made from C20 (Material no. 1.1151)
- Bearings from 4.054 to 4.064 are relubricateable
- Working temperature of WINKEL Bearings is -20 °C up to +100°C.
- WINKEL High Temperature Bearings can be used at max. +250 °C environmental temperature.
- The max. speed for WINKEL Bearings in steel version is 3m/s. For VULKOLLAN® and POLYAMIDE kind of bearings is the max. speed 6 m/s.
- The clearance between axial bearing and inner side of the profile should not exceed 0,5 mm.
- Bolt tolerance –0.05 mm
- Bearings are lubricated with grease grade 3 (e.g. Shell Gadus S2 V100 3)
