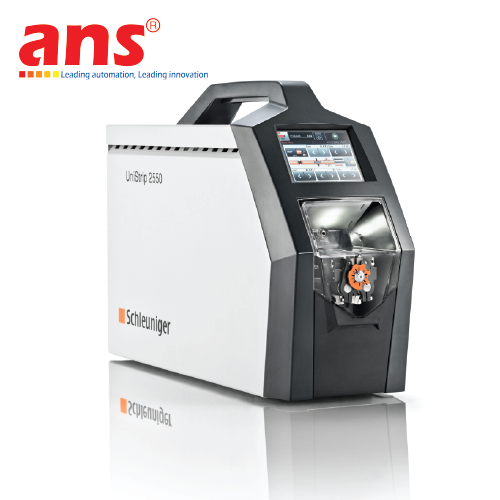

Stripping Machine US2550_M_HSS Schleuniger Vietnam
Price: Contact
Brand: Schleuniger
Category: 4.0 Industry
Supplier: ansvietnam
Origin: Switzerland
0911472255Stripping Machine US2550_M_HSS Schleuniger Vietnam
Application Range
The Schleuniger UniStrip 2550 strips wires ranging in size from 0.03-6 mm² (32-10 AWG) and jacketed cables up to 5.5 mm (0.22") in diameter. The machine comes standard with V-blades, the optimum solution for stripping most wires without having to change blades. Through the use of special blades, the range of applicatons can be expanded. Using the color touchscreen, the operator selects the desired wire size from the preprogrammed library and all parameters (cutting diameter, clamping pressure, blade way back, etc.) are automatically set. The operator edits the stripping and pull-off lengths as required and the machine is ready for operation.
The UniStrip 2550 begins the stripping process when the wire end touches the trigger sensor. The wire is automatically clamped and the stripping process is performed according to the programmed values. If desired, the program can be saved to internal memory for future use.
Programmable Processing Parameters
- Cutting diameter, cutting speed
- Blade wayback (default values in "Basic Wire", programmable in "Extended Wire")
- Stripping length, pull-off length, pull-off speed
- Trimming function (for precise strip lengths)
- Cable clamping pressure
