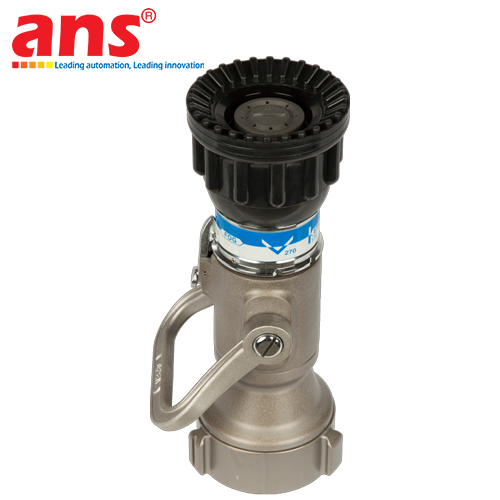

The Shilla Fire SL-15 Series represents a specialized lineup of high-capacity foam fire monitor nozzles and branch pipes engineered and manufactured by Shilla Fire Co., Ltd. (Korea). The complete catalog features the exact industry-certified models: SL-15B, SL-15BQ, SL-15FNA-750/1000, SL-15FNA-350/500, SL-15FN-350/500, SL-15FN-750/1000, SL-15FNEA-750/1000, and SL-15FNE-750. These critical discharge devices are essential components deployed across fixed foam extinguishing systems and fire monitors in petroleum tank farms, petrochemical refineries, chemical processing plants, and marine loading terminals.

Constructed from corrosion-resistant hard-anodized aerospace aluminium alloy or high-grade cast bronze, the SL-15 Series foam nozzles deliver exceptional aspiration and expansion performance. By mixing foam concentrate (AFFF, AR-AFFF) with pressurized water streams, the units generate high-integrity foam blankets with optimal expansion ratios. This stable foam blanket rapidly covers flammable liquid spills, seals off oxygen supply, cools the burning fuel, suppresses vapor release, and ensures complete fire extinction while preventing reignition.

The product lineup is categorized into flexible flow configurations ranging from 350 GPM to 1,000 GPM (encompassing FN and FNA non-aspirated / aspirated variants, alongside FNE and FNEA extended series), coupled with reliable quick-coupling options (designated by 'Q'). These features empower emergency response teams to rapidly deploy heavy foam streams during critical industrial fire incidents.

• Manufacturer: Shilla Fire Co., Ltd. (Korea)
• Product Series: Foam Fire Monitor Nozzles & Branch Pipes
• Rated Working Pressure: 0.7 MPa (7 bar / 100 psi)
• Hydrostatic Test Pressure: 1.5 – 2.0 MPa (15 – 20 bar)
• Media Compatibility: Firefighting water and foam concentrates (AFFF 1%, 3%, 6% / AR-AFFF)

--- DETAILED SPECIFICATIONS: COMPLETE MODEL LINEUP ---
• SL-15B / SL-15BQ: Standard Foam Nozzle | Rated Flow: Match to monitor spec | Inlets: Female thread / Quick-coupling (Q models feature Machino/Storz quick connections) | Weight: 3.5 – 5.2 kg
• SL-15FN-350/500: Non-Aspirated Foam Nozzle | Adjustable Flow Range: 350 – 500 GPM | Designed for long throw reach | Weight: Approx. 6.0 kg
• SL-15FN-750/1000: High-Capacity Non-Aspirated Foam Nozzle | Adjustable Flow Range: 750 – 1,000 GPM | Tailored for heavy-duty master stream monitors | Weight: Approx. 8.5 kg
• SL-15FNA-350/500: Natural Aspirating Foam Branch Pipe | Flow Range: 350 – 500 GPM | High expansion ratio for dense foam blankets | Weight: Approx. 7.2 kg
• SL-15FNA-750/1000: High-Capacity Aspirating Foam Branch Pipe | Flow Range: 750 – 1,000 GPM | Maximum broad-area firefighting efficiency | Weight: Approx. 10.2 kg
• SL-15FNE-750: Extended Performance Foam Nozzle | Flow Rate: 750 GPM | Optimized stream reach and foam distribution | Weight: Approx. 8.0 kg
• SL-15FNEA-750/1000: High-Performance Extended Aspirating Foam Nozzle | Flow Range: 750 – 1,000 GPM | Advanced air-injection aspiration technology | Weight: Approx. 11.0 kg

• Quality Approvals & Standards: KFI Approved (Korea Fire Institute), NFPA 11 / NFPA 1964 standard compliant
