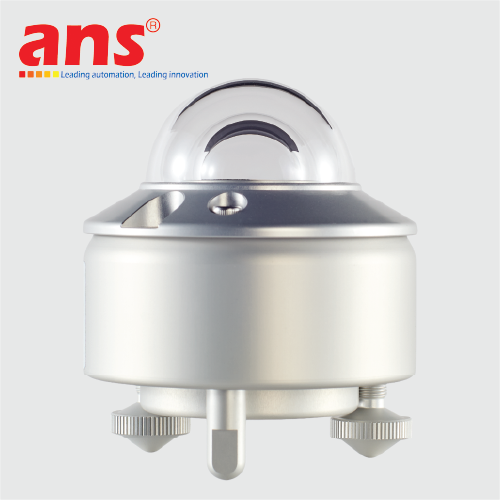

CMP10x Pyranometer
The CMP10x is a fully compliant with ISO 9060:2018 and IEC 61724-1:2021 analog pyranometer designed for high-accuracy solar irradiance measurement in the most demanding environments. Built on CMP10, it ensures low instrument drift over long-term use, a 5-year calibration interval, and a maintenance-free desiccant lasting over a decade. Integrates a thermistor for temperature compensation, improved environmental resilience, and a robust 4-pin connector, CMP10x ensures reliable performance for scientific research, PV monitoring, and extreme climate applications—all backed by a 5-year warranty and a proven lifespan exceeding 10 years.
Specifications
- Spectral range (50% points) 285 to 2800 nm
- Sensitivity 7 to 16 µV/W/m²
- Response time (95%) <5 s
- Zero offset A <±7 W/m²
- Zero offset B <±2 W/m²
- Directional response (up to 80° with 1000 W/m² beam) <±10 W/m²
- Temperature dependence of sensitivity (-10 ºC to +40 ºC) <±1 %
- Operational temperature range -40º C to + 80 °C
- Maximum solar irradiance 2000 W/m²
- Field of view 180 °
