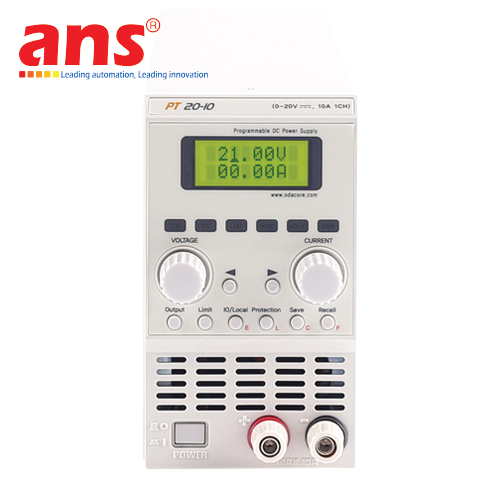

Power Supply PT20-10 ODA Technologies Vietnam
Price: Contact
Brand: ODA Technologies
Category: 4.0 Industry
Supplier: ansvietnam
Origin: Korea
0911472255Power Supply PT20-10 ODA Technologies Vietnam
Switching type Programmable DC Power Supply
19inch Rack Standard & Benchtop type
PT Series is a switching type programmable DC power supply. Its compact size is designed for bench top as well as 19inch rack mounted.
The product line-up consists of 200W, 400W and it is best solution of low power applications.
PT Series is convenient for system configuration by providing RS-232C and RS-485 communication at the same time.
ODA Technologies still provides Demo S/W program by free for easy use of communication
- 4-Digit Display Resolution
- 8 Character, two line LCD Display
- Adjustment encoder provided for voltage and current
- CV/CC Mode
- Remote V-Sensing(Voltage drop compensation)
- OVP, OCP Protection Mode
- UVL(Under Voltage Lock), OVL(Over Voltage Lock), UCL(Under Current Lock), OCL(Over Current Lock)
- Calibration Function(Manual and PC)
- Panel Lock Function
- Memory Save & Recall Function(Up to 10 operation states)
- Output ON/OFF Function
- 11 diverse Factory Modes(User memory clear, Last state, Calibration- Restore & etc)
- RS-232C, RS-485 standard(TCP/IP is optional)
- Analogue Input Control(0~10V)
- Front output is also available for measurement only, max 10A
- AC Input 110~240VAC ±10%
