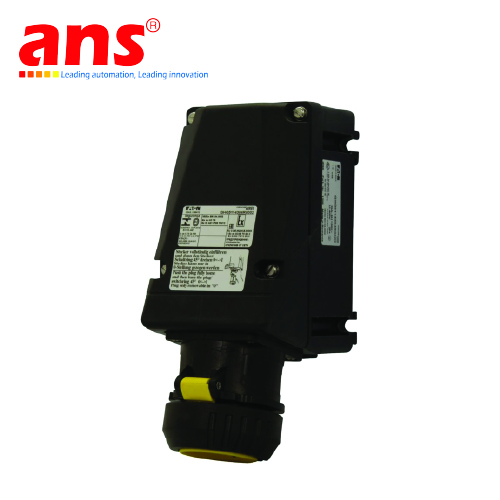

Eaton GHG5144406R3001 – Heavy-Duty IEC 60309 Interlocked Receptacle for Hazardous Areas
Meta title (SEO): Eaton GHG5144406R3001 – IEC 60309 Interlocked Receptacle IP66 | Crouse-Hinds
Meta description (SEO): Eaton Crouse-Hinds GHG5144406R3001 – 63A, 4-pole IEC 60309 interlocked receptacle, IP66/NEMA 4X rated, designed for Zone 1 & 2 hazardous locations.
Product Overview
In harsh industrial environments, especially hazardous areas where safety is critical, reliable power distribution equipment is a must.
The Eaton Crouse-Hinds GHG5144406R3001 is a heavy-duty IEC 60309 interlocked receptacle engineered to provide safe, secure, and efficient electrical connections, ensuring both operational efficiency and personnel protection.
Key Specifications
| Specification | Value |
|---|---|
| Part Number | GHG5144406R3001 |
| Rated Current | 63 A |
| Voltage | 380–415 V AC |
| Poles | 4-pole / 3-wire |
| Standard | IEC 60309 |
| Material | Industrial-grade Nylon |
| Protection | IP66 / NEMA 4X |
| Cable Entry Size | M40 |
| Area Classification | Zone 1, Zone 2, Division 2 |
