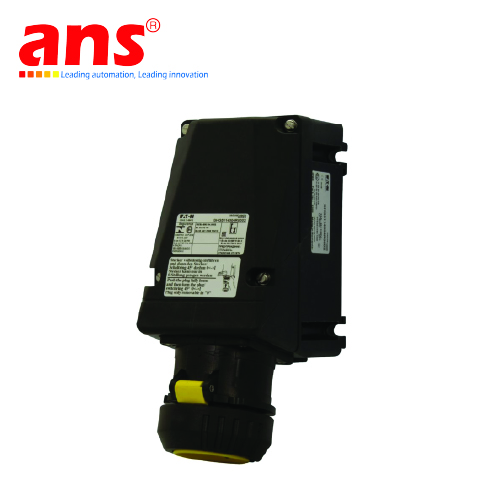

Eaton GHG5114306R3001 – IEC 60309 Interlocked Receptacle for Hazardous Areas (16 A, IP66/NEMA 4X)
Meta Title (SEO): Eaton GHG5114306R3001 – IEC 60309 Interlocked Receptacle | 16A IP66
Meta Description (SEO): Eaton Crouse-Hinds GHG5114306R3001 – 16 A, two-wire 3-pole IEC 60309 interlocked receptacle, IP66/NEMA 4X rated for Class I Zone 1/Zone 2 hazardous areas.
Product Overview
When it comes to powering operations in hazardous or classified areas, safety and reliability are non-negotiable. The Eaton Crouse-Hinds GHG5114306R3001 is a robust, interlocked IEC 60309 receptacle—offering secure, safe power connection with built-in mechanisms to prevent accidental disconnection under load. Eaton+1
Key Specifications
| Specification | Value |
|---|---|
| Part Number | GHG5114306R3001 |
| Rated Current | 16 A |
| Voltage Rating | 220–240 V AC |
| Configuration | Two-wire, three-pole |
| Protection Rating | IP66 / NEMA 4X |
| Material | Rugged Nylon |
| Cable Entry Size | M20 |
| Area Classification | Class I—Zone 1, Zone 2; Division 2 |
