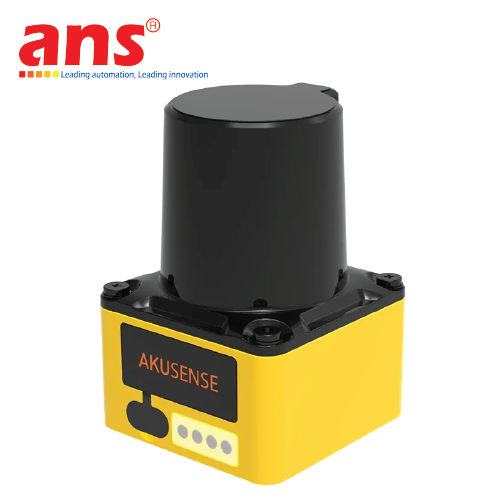

Obstacle avoidance Lidar AS-33C AKUSENSE VietNam
Price: Contact
Brand: AKUSENSE
Category: 4.0 Industry
Supplier: ansvietnam
Origin: China
Gọi lại cho tôi
0911472255Obstacle avoidance Lidar AS-33C AKUSENSE VietNam
Specifications
- Model AS-33C
- Working principle Laser Ranging
- Optical working principle Diffuse reflection
- Light Source Infrared laser (905nm)
- Laser spot exit aperture (V) 4.5 * 2 mm (H)
- Scanning angle 270 °
- Scanning Angle Resolution 0.5 °
- Measuring Range 10 m (70% reflectivity) /4 m (10% reflectivity)
- Measurement Error ±2 cm (within 10 m)
- Operating Voltage DC 9 V~28 V
- Power Consumption Rated power: < 1 W (no load); Starting power: < 3 W (no load)
- Communication USB-TYPE C (serial port)
- Operating temperature - 10 ℃ to 50 ℃
- Storage Temperature - 20 ℃ ~ 70 ℃
- Operating humidity Below 85%, no condensation
- Ambient Illumination ≤80000 Lux
- Vibration Resistance 500m/s (about 50G), 3 times each in XYZ direction
