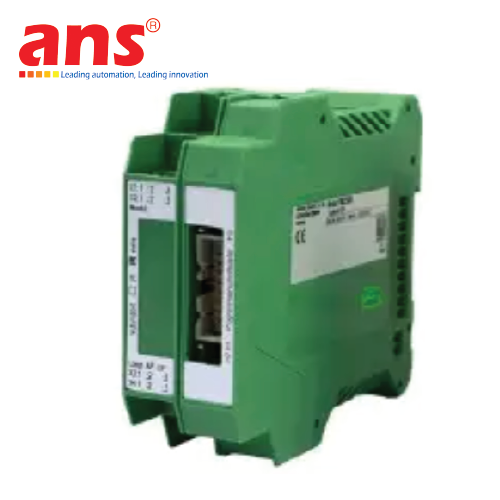

Module FMZ5000 906185 Minimax Vietnam
Price: Contact
Brand: Minimax
Category: 4.0 Industry
Supplier: ansvietnam
Origin: EU
0911472255Module FMZ5000 906185 Minimax Vietnam
Product features
- For the interface connection of analogue addressable detectors and modules with Loop AP protocol
- The high loop current enables the operation of multiple modules, sounders, flash lights and detectors in a single loop
- All settings of the module, the detectors and the detector zones are configured using the MxSysCon configuration program
- No further adjustment is required
Functional module for use in all design variants of the fire detection series FMZ 5000. Includes 2 detector loops for connection of up to 126 devices each. Instead of a loop, 2 branches can be connected to the module.
Any number of T branches can be connected to each loop. The loop devices can be fire detectors, input/output modules, control modules for sounders and loop couplers for the operation of conventional detectors in the loop. For use in potentially explosive atmospheres, IS-detectors can be connected to the loop via protocol interface and safety barriers.
