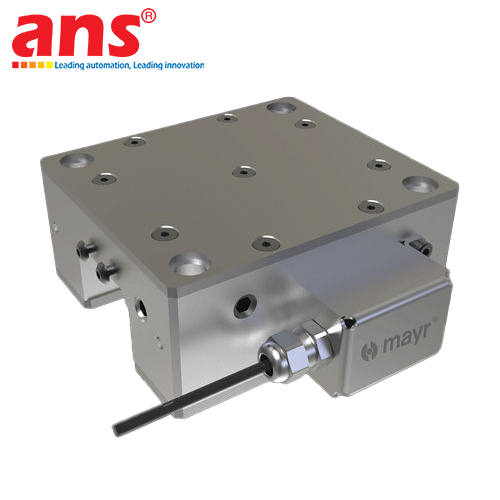

MAYR ROBA-STOP®-GUIDESTOP BACKLASH-FREE HIGH-RIGIDITY FLUID-DRIVEN PROFILE RAIL SAFETY BRAKE

DEEP PRODUCT OVERVIEW & LINEAR GUIDE DIRECT GRAVITY DROP SAFETY OVERRIDES
The Mayr ROBA®-guidestop® represents the absolute global industry benchmark in specialized solid-state linear safety mechanism engineering, configured as a high-rigidity backlash-free spring-applied Profile Rail Safety Brake and linear guide Clamping Unit, developed and manufactured 100% in Germany by world-renowned safety automation mechanism pioneer Chr. Mayr GmbH + Co. KG. This advanced device functions as the ultimate mechanical fail-safe "direct-axis structural barrier", specified explicitly to execute massive direct clamping force loops straight onto the side flanks of linear profile guide rails (Linear guide profile rails). Across heavy multi-axis CNC machining centers, high-velocity gantry laser cutters, or heavy-duty automation beds, machine frameworks are exposed to severe torsional shifting vectors and high down-force weight. Crucially on vertical Z-axes handling multi-ton payloads, if safety layout loops rely purely on independent motor rear brakes or shaft couplers, then unexpected timing belt breaks, linear drive line failures, or ballscrew (Ballscrew) fractures will cause immediate catastrophic tool-head gravity free-falls. The ROBA®-guidestop® completely intercepts this hazard by anchoring straight onto the structural profile rail—the most rigid fixed element of the machine structure—securing the line via authorized supplier ANS.

UNCOMPROMISED FAIL-SAFE SPRING ENERGY & BACKLASH-FREE HIGH RIGIDITY TOPOLOGY
The primary technical asset securing the extreme protective durability of the ROBA®-guidestop® model resides in its flat-contact mechanical friction interlock parameters:
- Power-Free Spring-Applied Engagement Matrix: The brake functions strictly under an uncompromising fail-safe structural blueprint. The default orientation of the unit upon the drop or termination of fluid line energy pressures (hydraulic oil or compressed air) is absolute ENGAGEMENT. Internal heavy-duty pre-stressed disc spring columns release massive mechanical forces instantly, slamming high-friction clamping pads locked tight against the linear rail flanks. System release (Release state) occurs exclusively when operators supply high-pressure hydraulic fluids or pneumatic lines to systematically defeat internal spring forces.
- Absolute Zero-Backlash Linear Rigidity: Moving away from round rod clamps that present narrow line-contact interfaces, the ROBA®-guidestop® clamps down directly over expansive flat rail margins, locking linear movement with zero axial micro-play or displacement (Backlash-free linear guide clamping). This rigid anchoring delivers a structural section modulus multiple times higher than old-fashioned braking formats, completely dampening micro-vibrations generated during aggressive metal cutting tool loads to optimize the surface flatness finish of the machined phôi.

HEAVY-DUTY DYNAMIC KINETIC BRAKING CAPACITY & EXPANSIVE RAIL PROFILE MATING
- Certified Dynamic Emergency Stop Overrides: Far exceeding standard linear clamps built solely to lock passive tracks already at rest, the ROBA®-guidestop® series carries official structural certification as a dynamic Safety Brake. The rugged friction matrix is calibrated to perform repeated dynamic kinetic emergency shutdowns (Dynamic Emergency Stops) from full operating velocities, safely devouring massive friction-induced thermal spikes without causing structural distortion or friction coefficient fading on the guide rails.
- Universal Drop-In Framework Interfacing: Mayr developers precision-contoured the geometric profile of the ROBA®-guidestop® to flawlessly match the structural rail specifications of the world's leading linear guide manufacturers (including HIWIN, THK, Bosch Rexroth, NSK, IKO, INA, etc.). This allows engineering teams to execute immediate snap-on drop-in installation onto active factory floor tracks without requiring independent framework remilling.

FLUID-DRIVEN RELEASE SYSTEMS & 100% MAINTENANCE-FREE SHIFT OPERATION
- Flexible System Actuation Profiles: The product line provides two main fluid release topologies matching specific factory automation preferences: Responsive Pneumatic modules built for standard plant compressor loops, and high-pressure Hydraulic systems designed for extreme heavy-duty settings, discharging massive holding capacities up to tens of thousands of Newtons.
- Rigid Hermetic Housing Built to Endure Shifts: The main chassis is precision-ground from a flat structural alloy steel block treated with premium anti-corrosive plating, sealing moving mechanical parts inside a carbon-dust-free internal cavity. The solid-state module operates 100% maintenance-free regarding routine field lubrication lines, fully shielding automated fields against cutting fluid coolant washes and aggressive metal abrasive shavings under certified ANS logistical distribution pipelines.

DYNAMIC PROPULSION METROLOGY & CLAMPING PERFORMANCE DATA
- Equipment Manufacturer: Chr. Mayr GmbH + Co. KG (Germany)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Full System Part Number Certified: ROBA®-guidestop® Series
- Device Structural Profile: Redundant backlash-free profile rail safety brake and linear guide clamping unit
- Fluid Release Medium Options: Scalable configuration paths welcoming Pneumatic or high-pressure Hydraulic drive assemblies.
- Default Operational Principle: Failsafe mechanical lock engaged via integrated disc spring columns upon line pressure termination; released via fluid pressure initialization.
- Linear Axis Interface Scale: 100% Backlash-free axial holding and profile rail clamping (Zero micro-play coupling).
- Dynamic Braking Certification: Structural-certified to perform dynamic kinetic deceleration loops during emergency manufacturing system breakdowns (E-stop overrides), protecting rail profiles.
- Nominal Clamping Force Capacity (Holding Force): Scalable multi-tier capacities stretching from compact light-duty tiers up to massive heavy-industry units handling tens of thousands of Newtons of dead-weight load.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics)

FLUID CIRCUIT METROLOGY & INTEGRATED DIAGNOSTIC LOGIC
- Release Fluid Pressure Spectrum (Pneumatic Variant): Engineered to adapt straight to standard industrial factory compressor levels.
- Release Fluid Pressure Spectrum (Hydraulic Variant): Calibrated for dedicated high-pressure fluid power loops to systematically defeat high-force internal spring actuators.
- Condition Monitoring Hardware Matrix (Optional): Onboard hermetically sealed high-accuracy mechanical Microswitches tracking microscopic armature plate strokes in real time.
- Diagnostic Automation Telemetry Feedback: Real-time closed-loop signal channels routing separate Release/Engage Monitoring parameters straight to localized machine control PLC processors.

MECHANICAL PROPERTIES & STRUCTURAL METALLURGY
- Mating Profile Rail Compatibility: Fully pre-engineered to fit the exact geometric rail coordinates of HIWIN, THK, Bosch Rexroth, NSK, IKO, INA, and matching standard metric rail systems.
- Stator & Armature Base Substrate: High-density structural alloy steel engineered for superior magnetic flux transmission, precision-ground to a flat layout resisting torsional deflection stress under vertical load drops.
- Friction Lining Material Composition: High-coefficient asbestos-free polymer matrix heavy-wear friction linings engineered for extreme thermal stability and advanced physical wear resistance.
- Lubrication & Preventative Maintenance Mandate: Sealed solid-state build requiring zero grease ingress; 100% Maintenance-free concerning physical lubrication routines.
- Mechanical Production Origin: 100% Engineered and Manufactured in Germany (Germany Origin).
