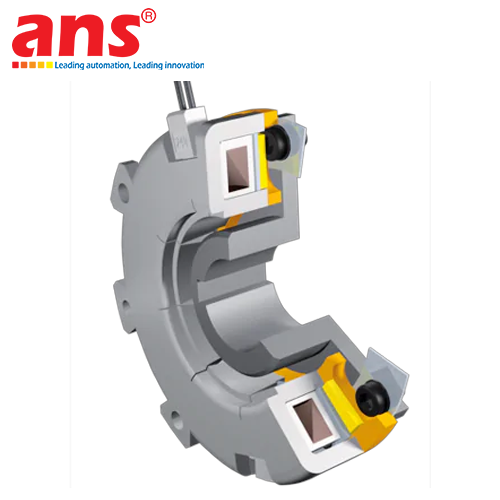

MAYR ROBA®-QUICK ENERGIZED-TO-ENGAGE ELECTROMAGNETIC SINGLE-PLATE CLUTCH AND HIGH-FREQUENCY SWITCHING BRAKE SYSTEMS

DEEP PRODUCT OVERVIEW & DYNAMIC POWER-ON DRIVE TRAIN INDEXING INFRASTRUCTURE
The Mayr ROBA®-quick represents the absolute global industry benchmark in specialized electro-mechanical power transmission safety engineering, configured as a high-precision electromagnetic single-plate clutch or brake (Electromagnetic Single-Plate Clutch / Brake) operating under a power-on active engagement topology (Energized-to-engage), developed and manufactured 100% in Germany by market-leading automation component pioneer Chr. Mayr GmbH + Co. KG. Moving entirely away from spring-applied fail-safe configurations designed to close upon power termination, the ROBA®-quick utilizes a highly responsive inductive electromagnetic coil layout. The exact millisecond a standardized DC voltage rail energizes the coil cavity, a powerful magnetic flux pathway builds instantly, pulling the armature plate axially across a micro air gap to mesh flush against the integrated rotor face. This structural matrix establishes an ironclad, instantaneous friction link to transfer nominal torque seamlessly between driving and driven shaft lines (clutch configuration) or clamps active rotation to a absolute mechanical stop (brake layout). The system routes rotational inputs perfectly smooth and uniform, tracking long-term continuous runtime stability supplied through certified ANS logistical distribution channels.

ULTRA-SHORT SWITCHING TIME AND REINFORCED ZERO RESIDUAL TORQUE DISENGAGEMENT
The primary performance asset and core compliance advantage electing the ROBA®-quick series for high-speed indexing automation loops resides in its specialized armature spring recovery kinetics:
- Millisecond-Level Reaction and Extreme High Switching Frequency: The optimized electromagnetic pole configuration minimizes inductive charging delays, forcing clutch engagement or brake locking to occur within a fraction of a second. This agile behavior is highly critical for automated workspace cells executing high-frequency start-stop cycles (High switching frequency) hundreds of times per minute across daily shifts without losing positional coordination limits.
- Total Eradication of Residual Drag (Zero residual torque): The moment line voltage is terminated, an integrated pre-stressed flat leaf-spring assembly pulls the armature plate completely clear of the friction rotor face back to its static home resting plane. This positive mechanical separation guarantees absolute zero residual torque transmission (Zero residual torque), thoroughly shield-proofing the friction boundaries against parasitic heat buildup and premature face glaze wear.

STREAMLINED COMPACT FOOTPRINT MET WITH SLIP-FREE INTERFACING MATE
- Space-Saving Low-Complexity Geometrical Profile: The hardware embodies an ultra-short axial length footprint that minimizes overall drivetrain complexity and rotational dead-weight (dead weight). This compact design facilitates effortless drop-in integration straight inside narrow machine frames hosting packaging lines, high-volume labeling machinery, high-speed logistics sorting conveyors, and automated textile processing stations.
- Backlash-Free Friction Engagement: Upon electrical coil initialization, the solid flat friction-locking layout grips the shaft tightly, establishing a rigid connection tracking absolute zero rotational play or micro-slip (Backlash-free engagement) to preserve structural encoding positions level.

SOLID-STATE WEAR-RESISTANT MECHANICAL STRUCTURE PACKED FOR LIFE
- Clean Friction Operation Requiring Zero Maintenance: The high-coefficient organic polymer friction linings are precision-formulated at high packing densities, fully free of toxic asbestos material ingredients. Engineered to run completely dry, the clutch/brake integration embeds heavy-duty shielded ball bearing structures packed for life with specialized high-temperature synthetic grease. The entire solid-state device operates 100% maintenance-free regarding routine field fluid line service loops or grease refills, tracking uninterrupted service life metrics supplied through certified ANS distribution loops.

DYNAMIC PROPULSION METROLOGY & ELECTRICAL PERFORMANCE DATA
- Equipment Manufacturer: Chr. Mayr GmbH + Co. KG (Germany)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Full System Part Number Certified: ROBA®-quick Series
- Device Structural Profile: Power-on single-plate electromagnetic clutch and brake system.
- Operational Actuation Principle: Energized-to-engage via DC magnetic flux generation; automatically released by integrated flat leaf-spring mechanics upon line power cut.
- Drag Disengagement Metric: 100% Elimination of parasitic friction drag (Absolute zero residual torque tracking).
- Indexing Switching Responsiveness: Ultra-short switching time constants engineered for continuous ultra-high-frequency start-stop duty cycles.
- Nominal Torque Calibration Spectrum: Multi-tier scalable configurations calibrated to match tight metric steps tracking from low capacity scales up to high-torque drive frames.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics based on shaft diameters and target torque thresholds)

ELECTRICAL RATINGS & INTEGRATED AUTOMATION LOGIC
- Input Supply Voltage Rail: Industry-standard DC voltage configurations (e.g., 24V, 104V, 180V DC managed via technical panel rectifier blocks).
- Magnetic Coil Duty Factor Profile: S1 continuous duty rating (Engineered to remain energized under full engagement continuously 24/7 without thermal degradation).
- Fast-Acting Switching Adaptability: Fully pre-engineered to pair with specialized Mayr fast-switch power rectifiers to further compress field response times by up to 50%.

MECHANICAL PROPERTIES & STRUCTURAL METALLURGY
- Stator Coil Base Substrate: High-density engineered structural steel alloy optimized for superior magnetic flux transmission, processed with protective surface plating.
- Friction Lining Material Formulation: High-stability asbestos-free organic polymer heavy-wear linings showing advanced thermal boundary capacity against face degradation.
- Driving Shaft Interface Mating: Standard metric international keyway bore layouts, circular bolt-down mounting flanges, or integrated belt-drive timing pulleys.
- Lubrication & Preventative Maintenance Mandate: Dry-running friction cavity tracking a sealed solid-state assembly; 100% Maintenance-free concerning physical lubrication routines.
- Mechanical Production Origin: 100% Engineered and Manufactured in Germany (Germany Origin).
